Fuse Block Application Table

Fuse Block Application Table (Part 1 Of 3):

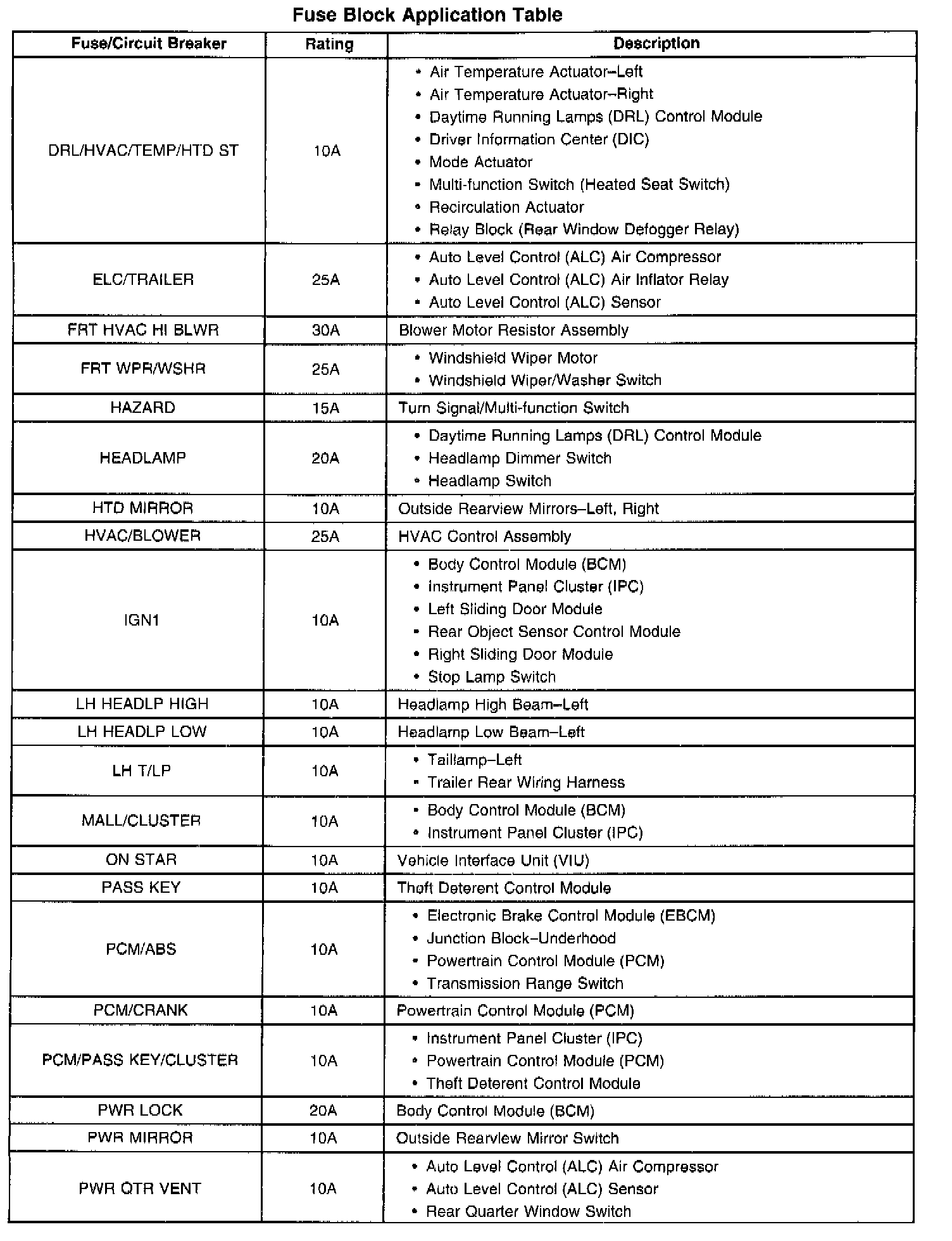

Fuse Block Application Table (Part 2 Of 3):

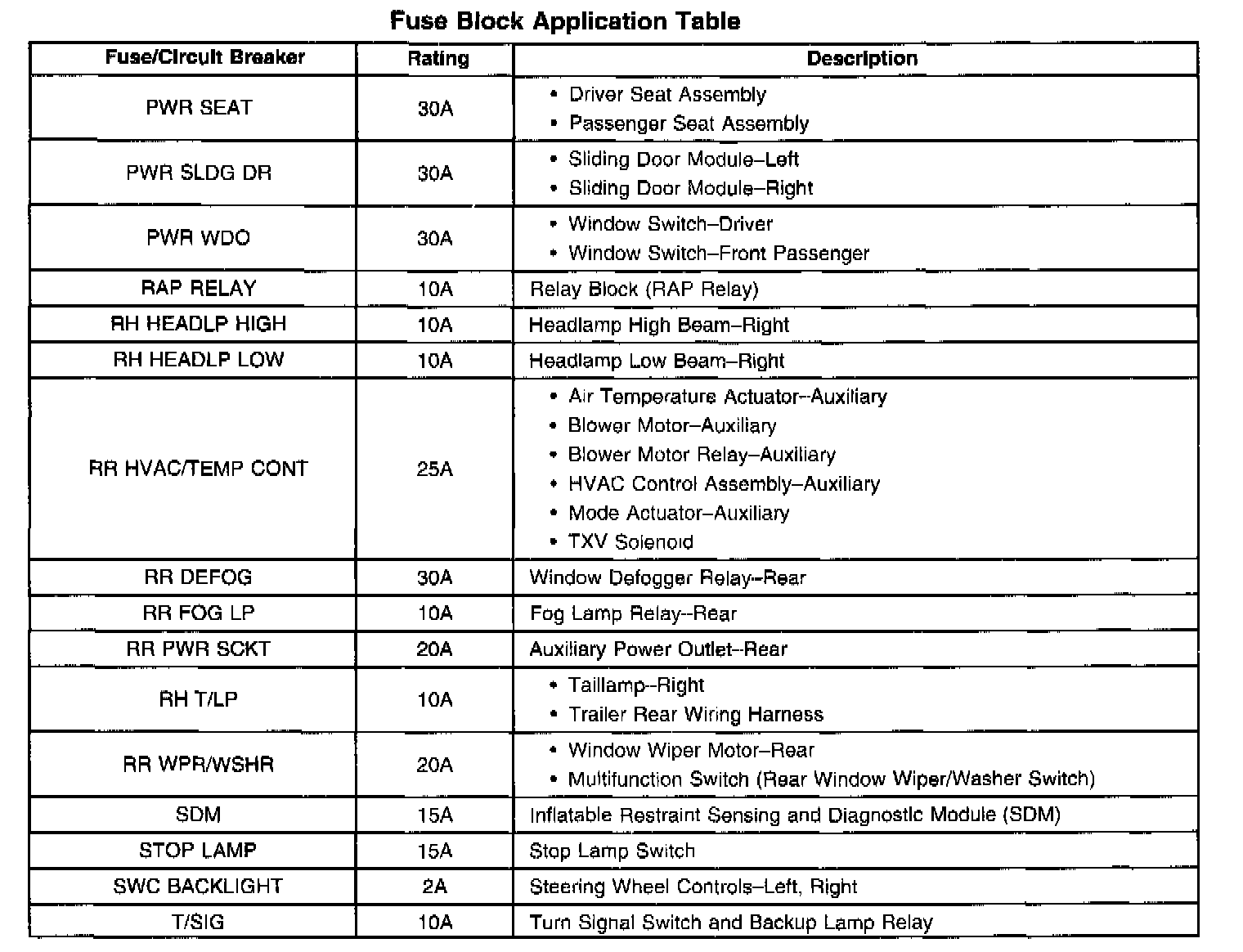

Fuse Block Application Table (Part 3 Of 3):
