Body Control Module, Power and Ground

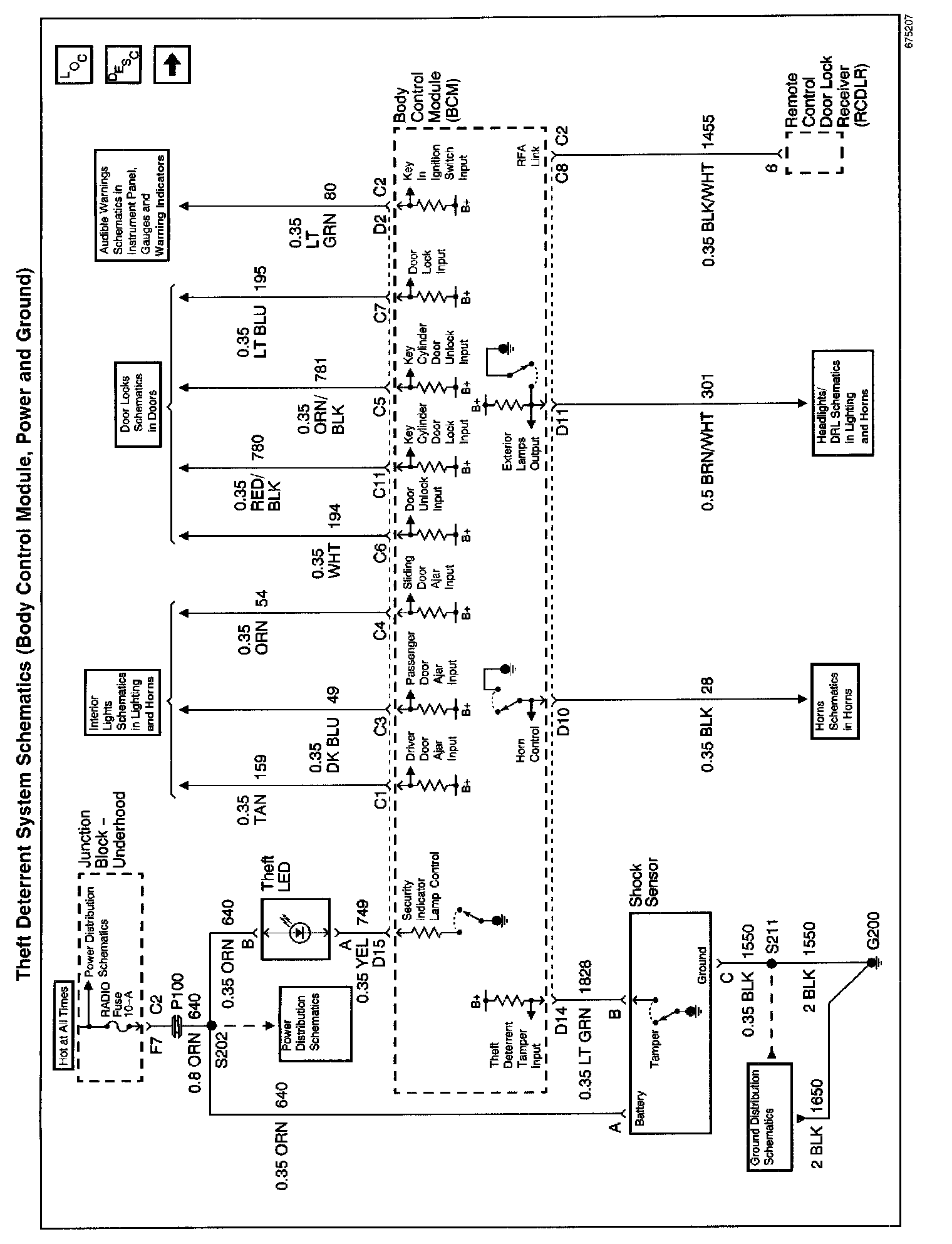

Theft Deterrent System Schematics: Body Control Module, Power and Ground:
