HVAC Control Assembly Connector C2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

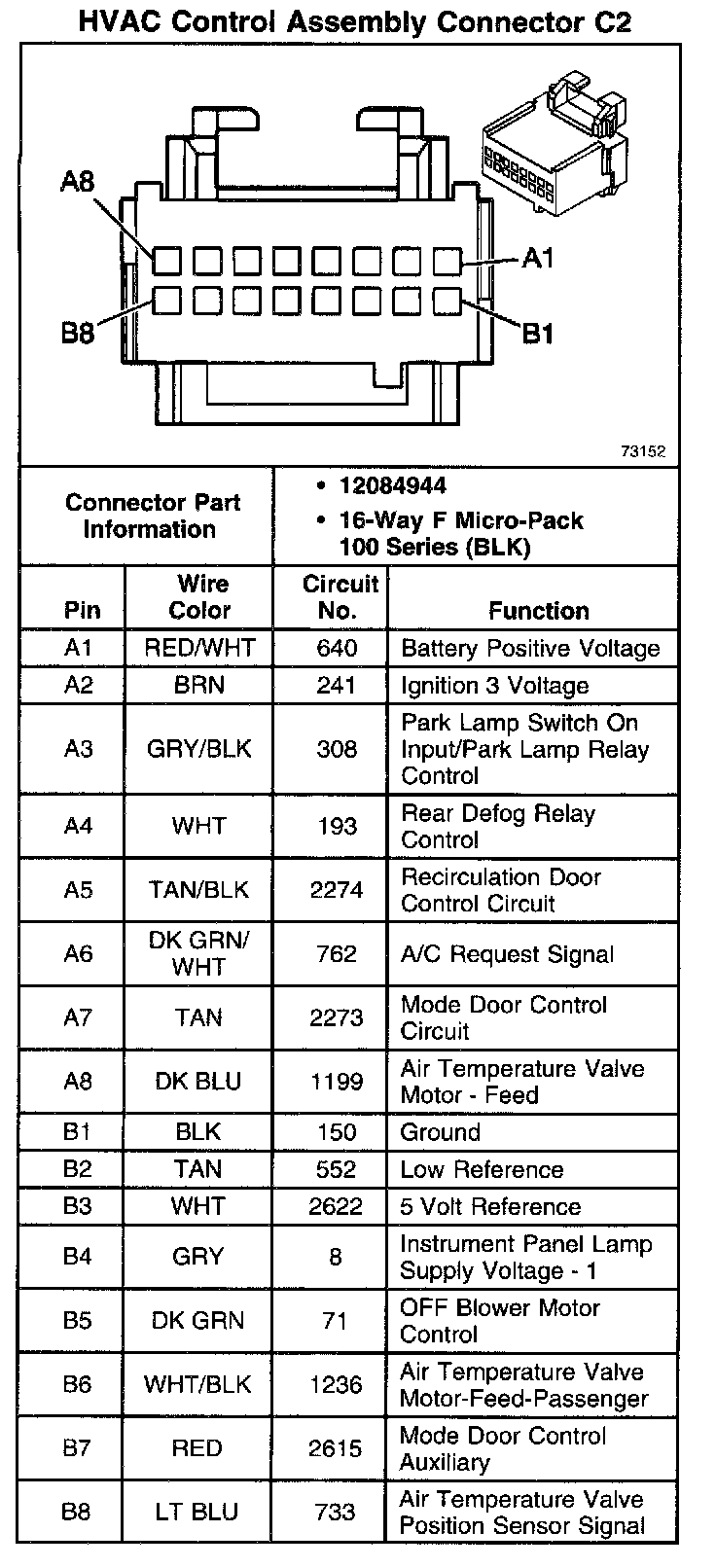

HVAC Control Assembly Connector C2
HVAC Control Assembly Connector C2:
