Installation Procedure

  1. Assemble the sun gear thrust bearing (698), the differential carrier sun gear (697), the park gear (696), the internal gear thrust bearing (695) and the sun gear shaft (689) into the differential carrier (700).
  2. Install the differential carrier into the case.

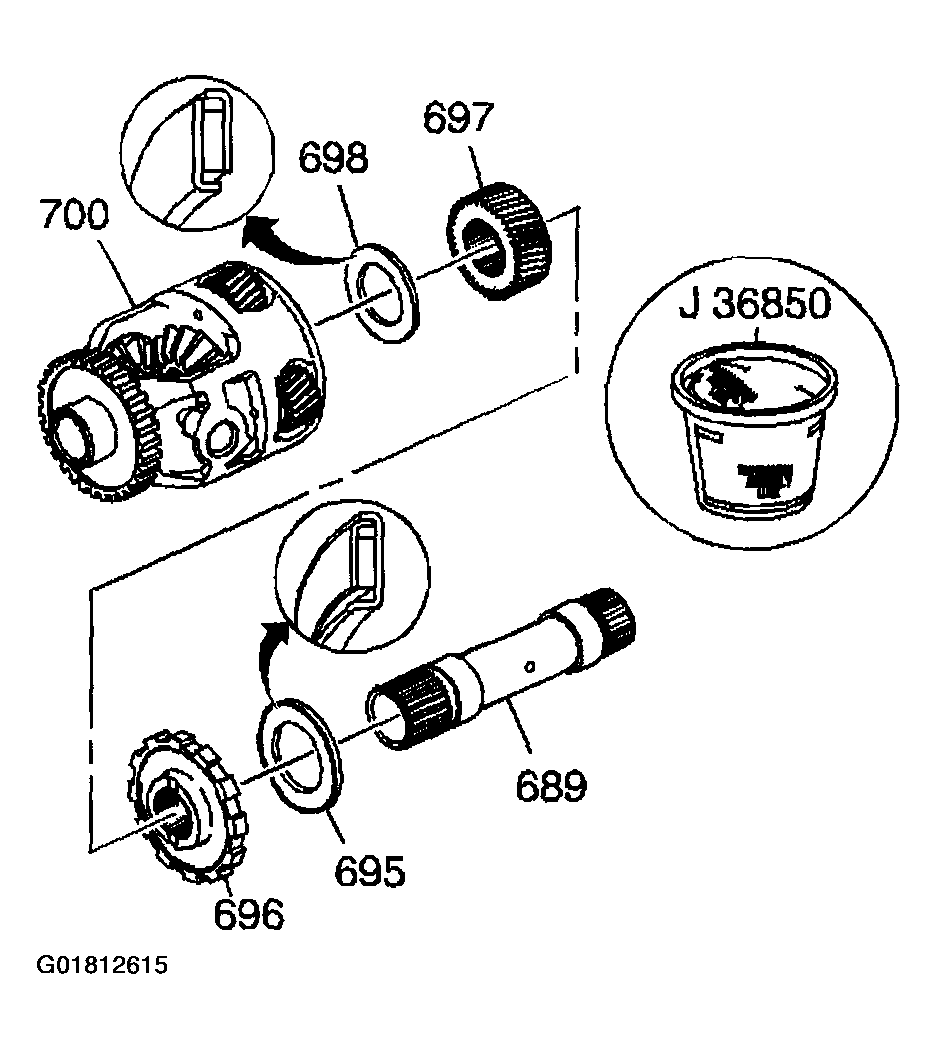

    Fig 1: Installing Sun Gear Thrust Bearing
    G01812615Courtesy of GENERAL MOTORS CORP.
  3. Install the case extension housing. Refer to Case Extension Housing Replacement
  4. Install the transfer case. Refer to TRANSFER CASE AND/OR SEAL REPLACEMENT
  5. Install the Engine/Transaxle assembly. Refer to ENGINE REPLACEMENT .

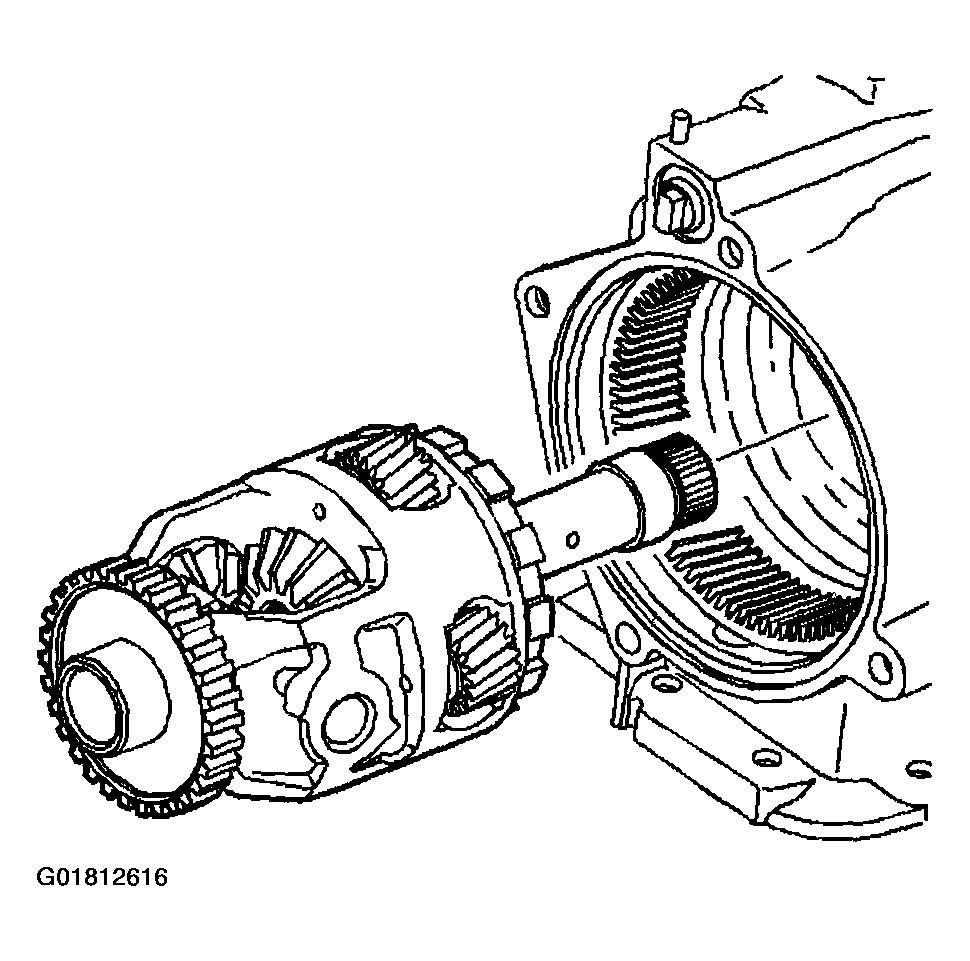

    Fig 2: Installing Engine/Transaxle Assembly
    G01812616Courtesy of GENERAL MOTORS CORP.
