Front Wiper Drive System Module: Removal

  1. Remove wiper arms. See WIPER ARMS  .
  2. Remove air inlet grille panel. See AIR INLET GRILLE PANEL  .
  3. Remove cruise control module and bracket. For removal and installation procedure, see CRUISE CONTROL SYSTEMS - MONTANA, SILHOUETTE & VENTURE article.
  4. Remove wiper motor. See WIPER MOTOR  .
  5. Remove wiper drive system module screws. See Fig 1 .
  6. Remove wiper drive system module from vehicle.

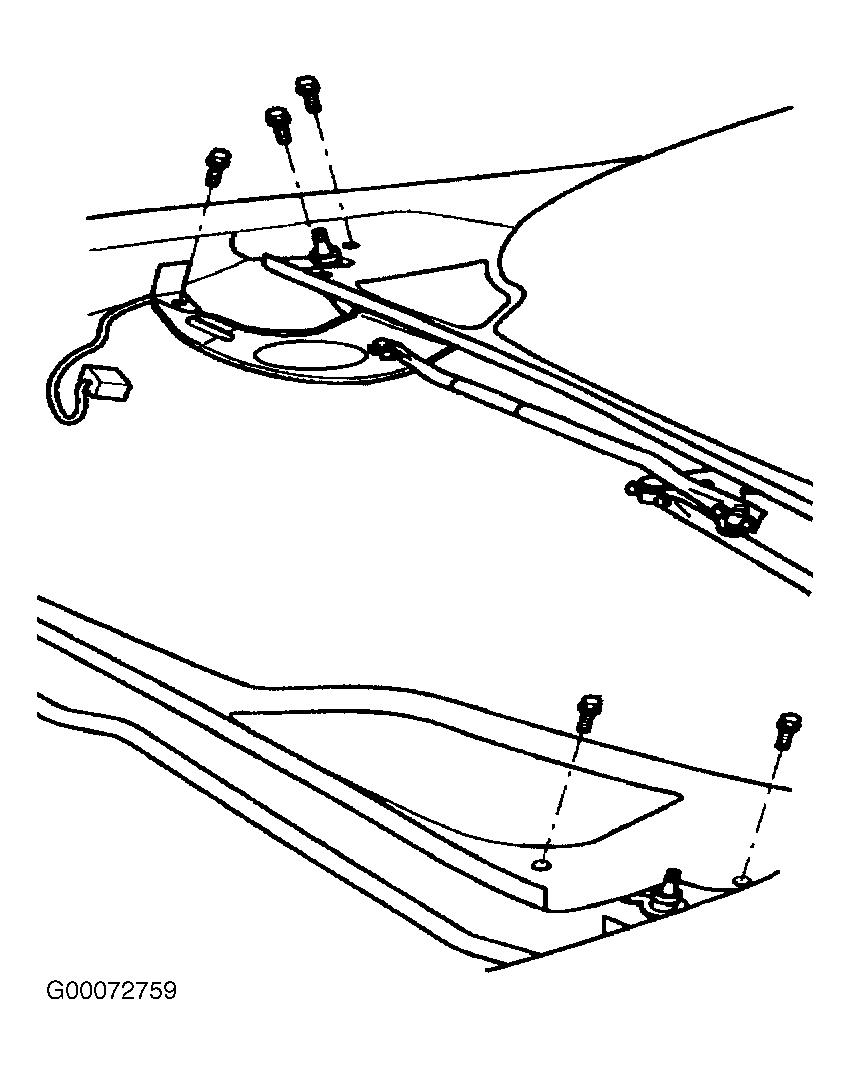

Fig 1: Removing & Installing Wiper Drive System Module
G00072759Courtesy of GENERAL MOTORS CORP.
