A/T Controls Schematics (Transmission Range Switch)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

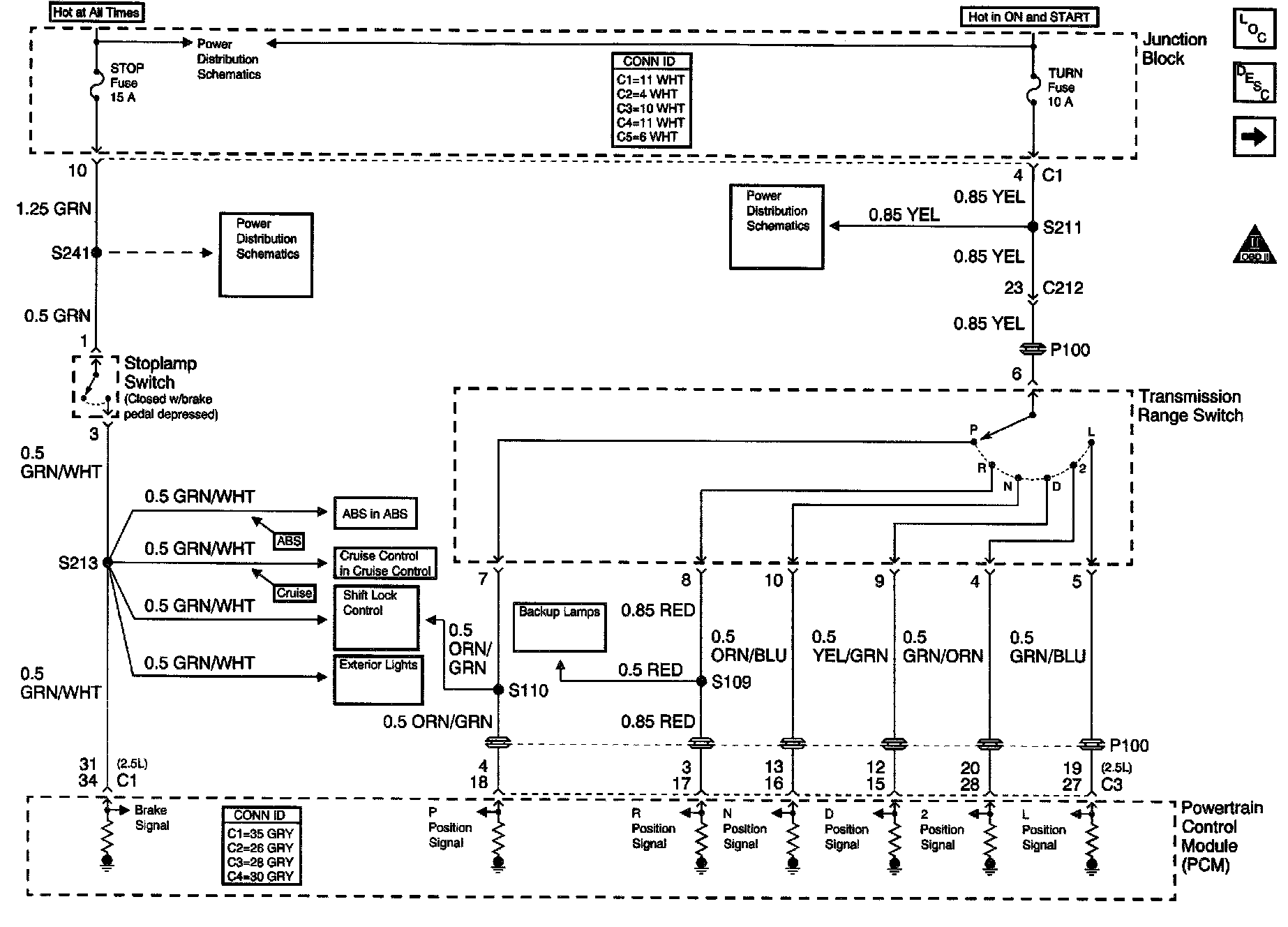

A/T Controls Schematics (Transmission Range Switch)
