Rear Door Trim Panel: Removal

  1. Remove rear side door inside handle screw. Slide handle forward and release handle rod clip.
  2. Unclip and remove trim cover (2) from rear side door trim panel (1). See Fig 1 .
  3. Remove 2 screws (3) that retain door trim panel (2). See Fig 2 .
  4. Using a taped flat-blade tool, gently pry rear side door window switch bezel (2) from rear side door trim (1). See Fig 3 .
  5. Disconnect rear side door window switch electrical connector.
  6. Remove rear side door window switch bezel from vehicle.
  7. Remove 2 plastic retainers (1, 5) that retain rear side door trim (2). See Fig 2 .
  8. Unclip and remove rear side door trim (2) from door by disengaging plastic retainers.

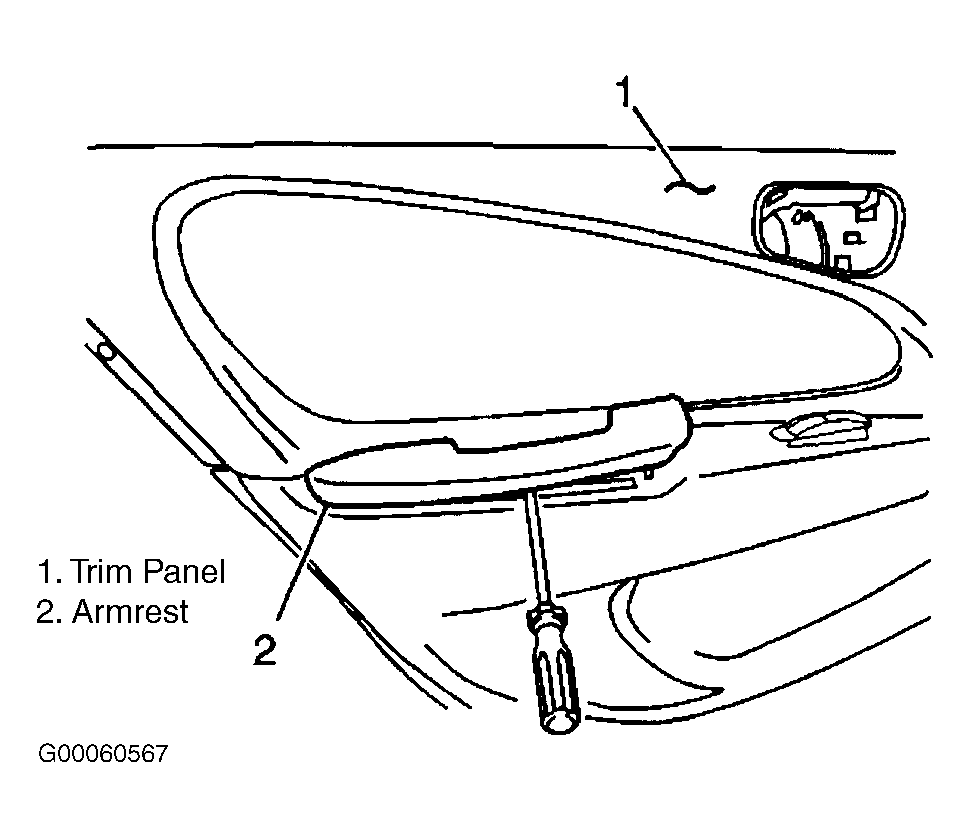

Fig 1: Removing Rear Armrest
G00060567Courtesy of GENERAL MOTORS CORP.

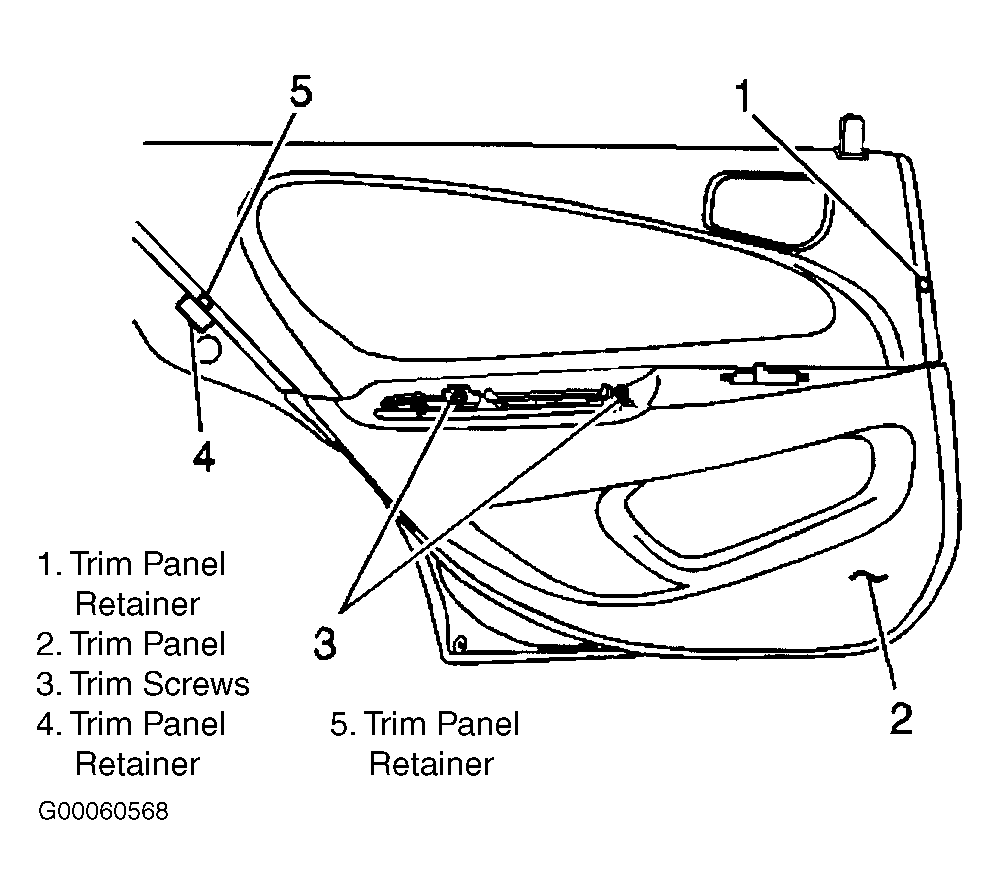

Fig 2: Identifying Trim Panel Screws
G00060568Courtesy of GENERAL MOTORS CORP.

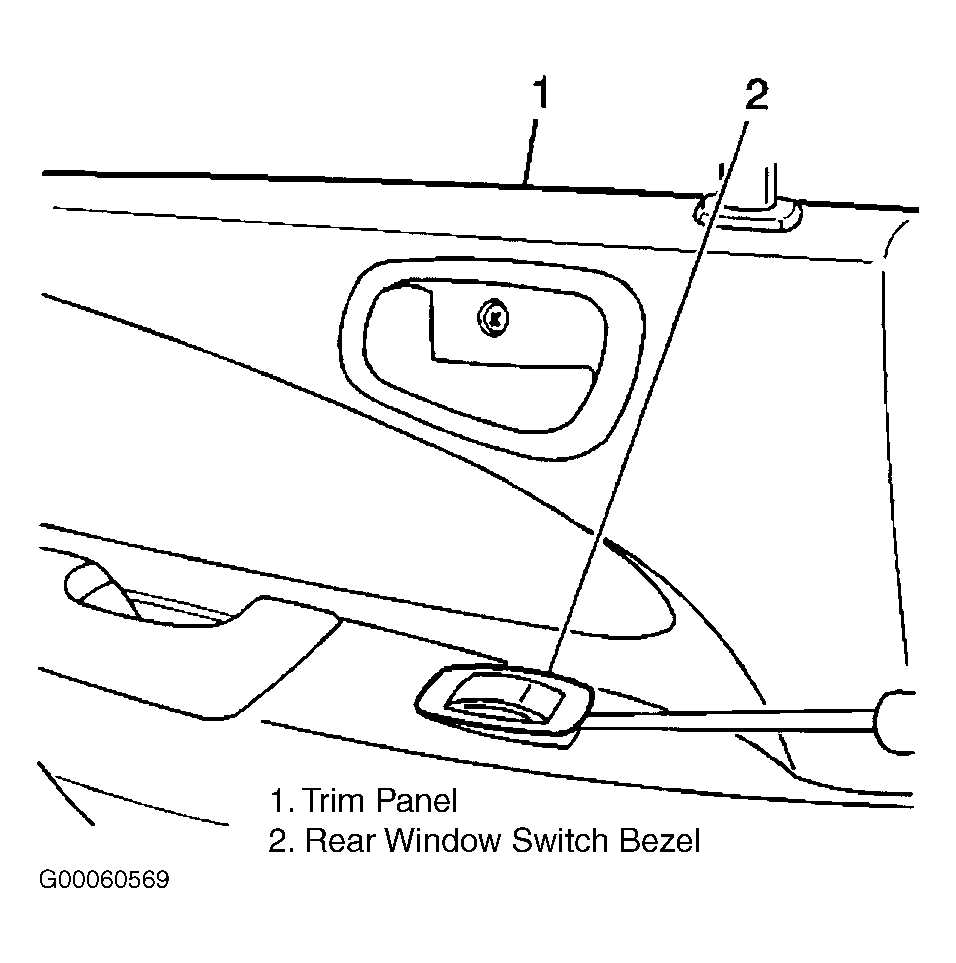

Fig 3: Removing Rear Power Window Switch
G00060569Courtesy of GENERAL MOTORS CORP.
