Cruise Control Switch: Installation

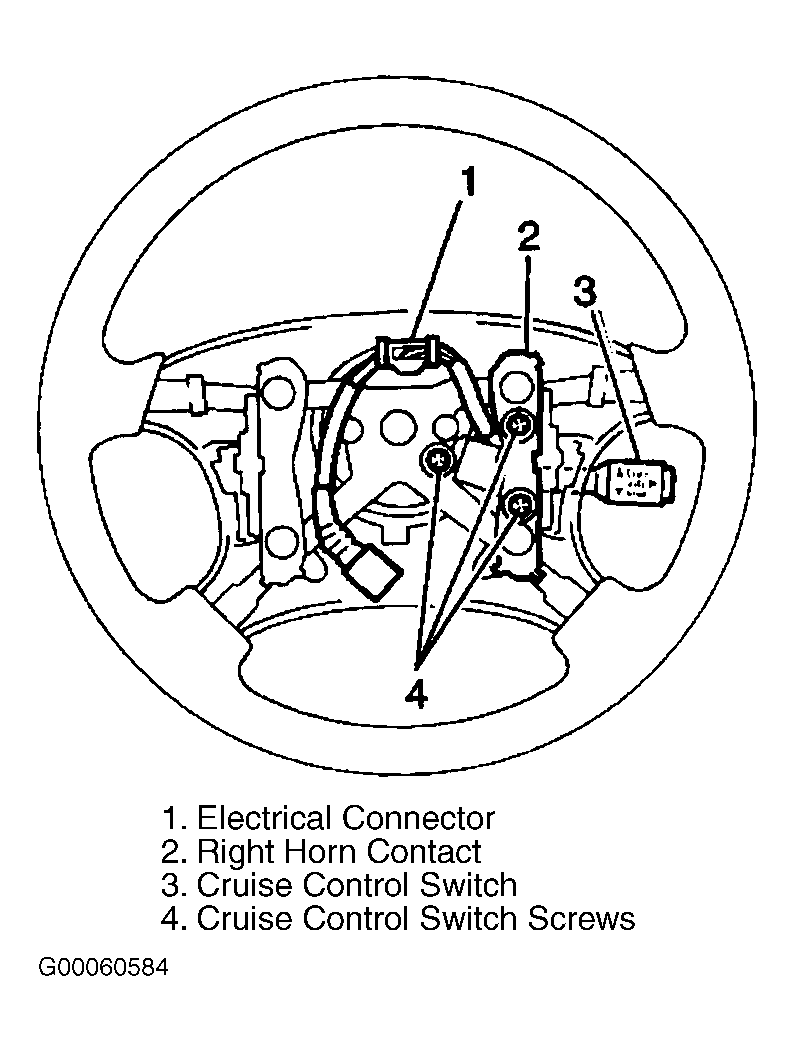

  1. Install cruise control switch (3) to vehicle. Secure switch with 3 screws (4). See Figure .
  2. Install right horn contact (2) to steering wheel. Secure contact with 2 Allen head bolts. Tighten horn contact bolts to 78 INCH lbs. (8.8 N.m).
  3. Install Red/Blue wire (2) to cruise control switch electrical connector (1). See Figure .
  4. Close TPA on top of cruise control switch electrical connector.
  5. Connect cruise control switch electrical connector (1) to steering wheel inflatable restraint module coil. See Figure .
  6. Install the steering wheel inflatable restraint module. See appropriate AIR BAG RESTRAINT SYSTEMS article.
