Input Speed Sensor Connector, Wiring Harness Side
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

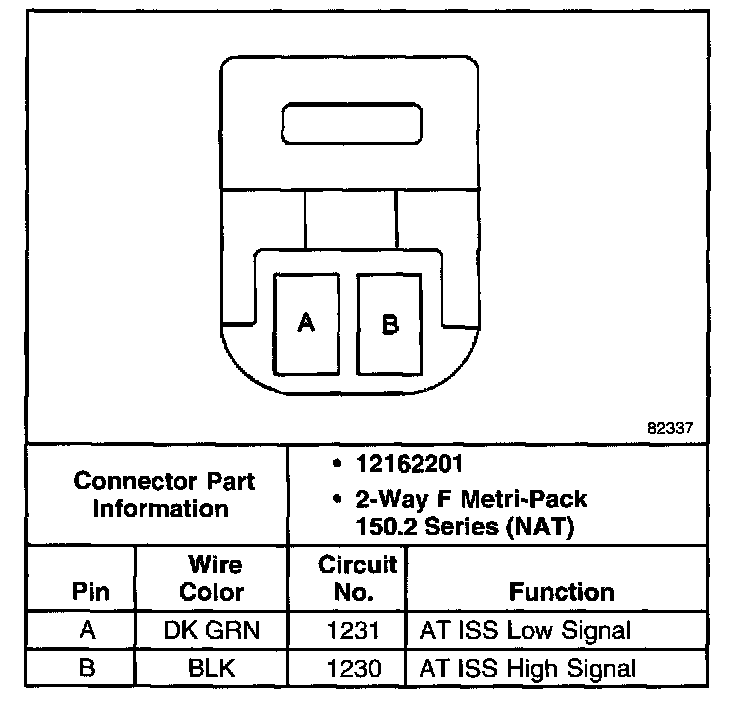

Input Speed Sensor Connector, Wiring Harness Side
