C1

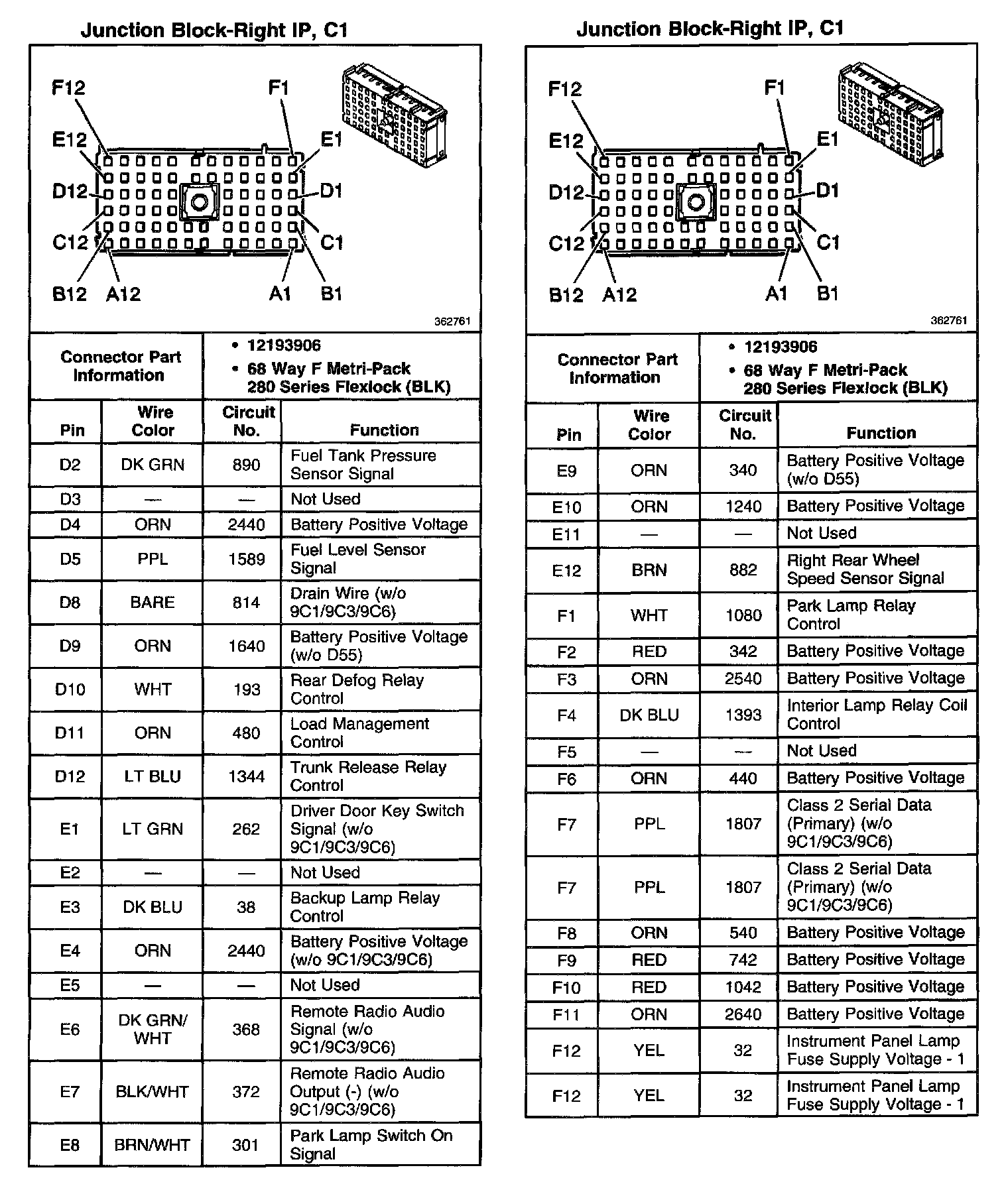

Junction Block-Right IP, C1 (Part 1 Of 2):

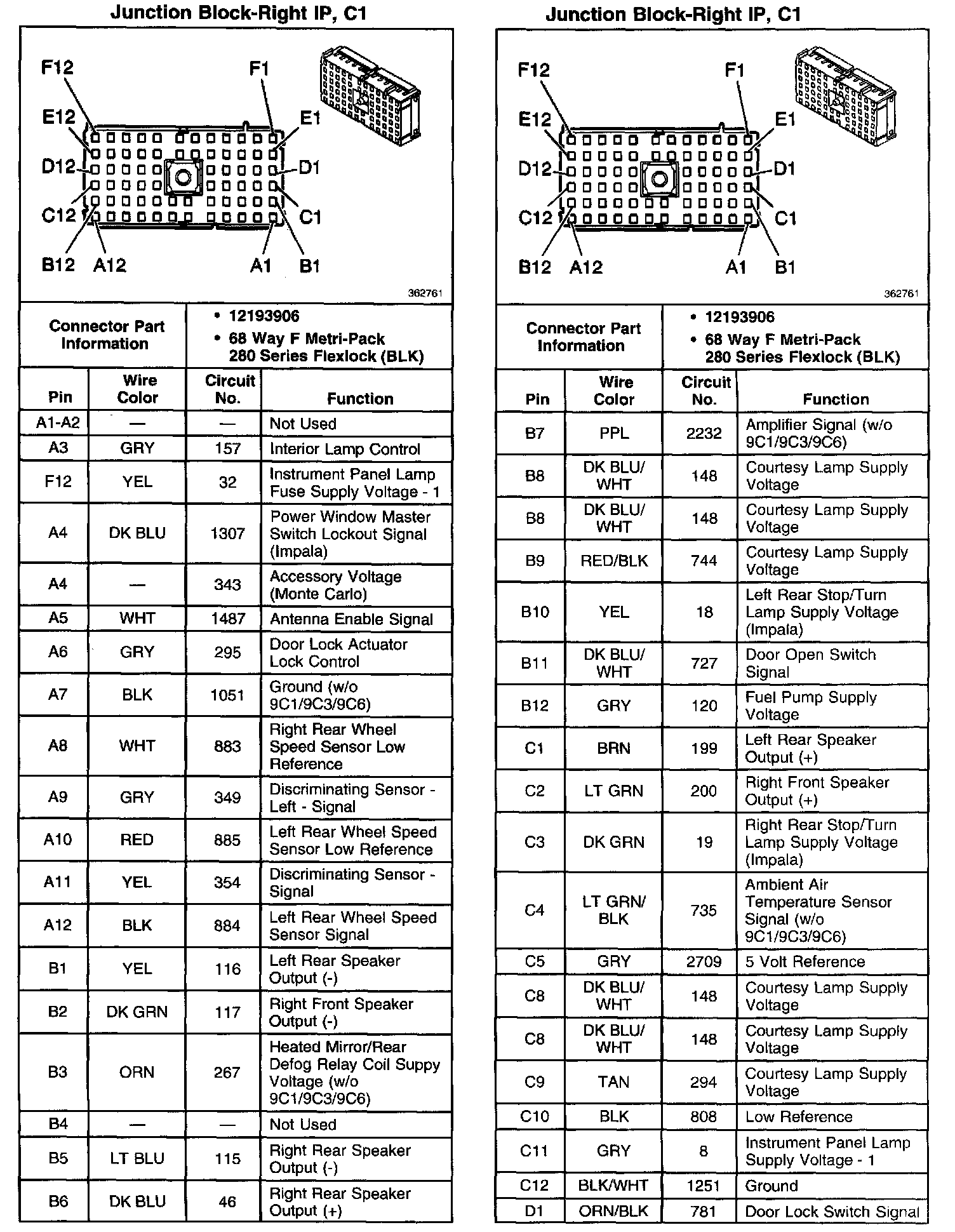

Junction Block-Right IP, C1 (Part 2 Of 2):





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
