Home >> Chevrolet >> 2001 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Cigar Lighter
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Cigar Lighter

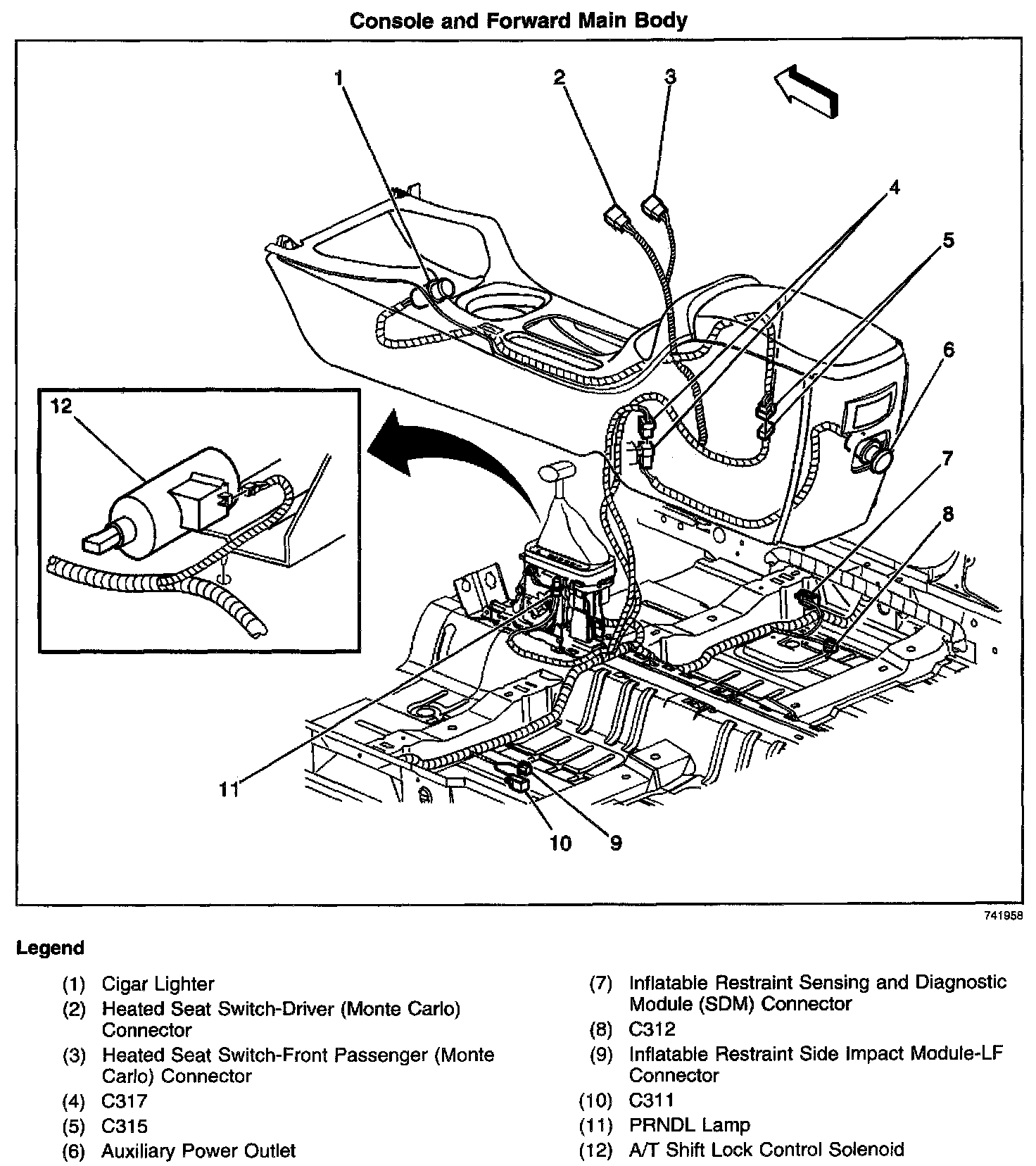

Locations View:

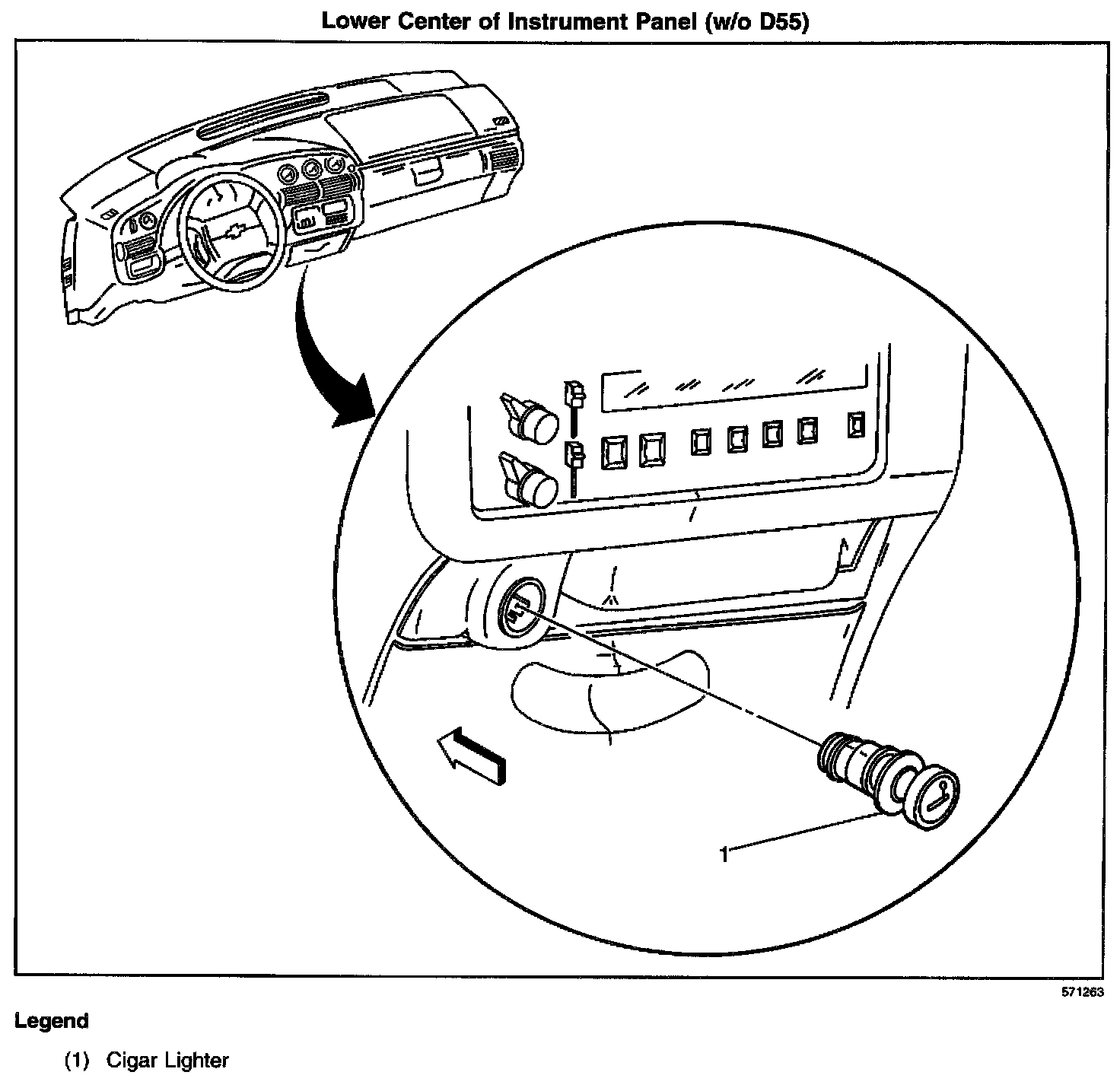

Locations View:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
