Blue C1 80 Pin Connector End View

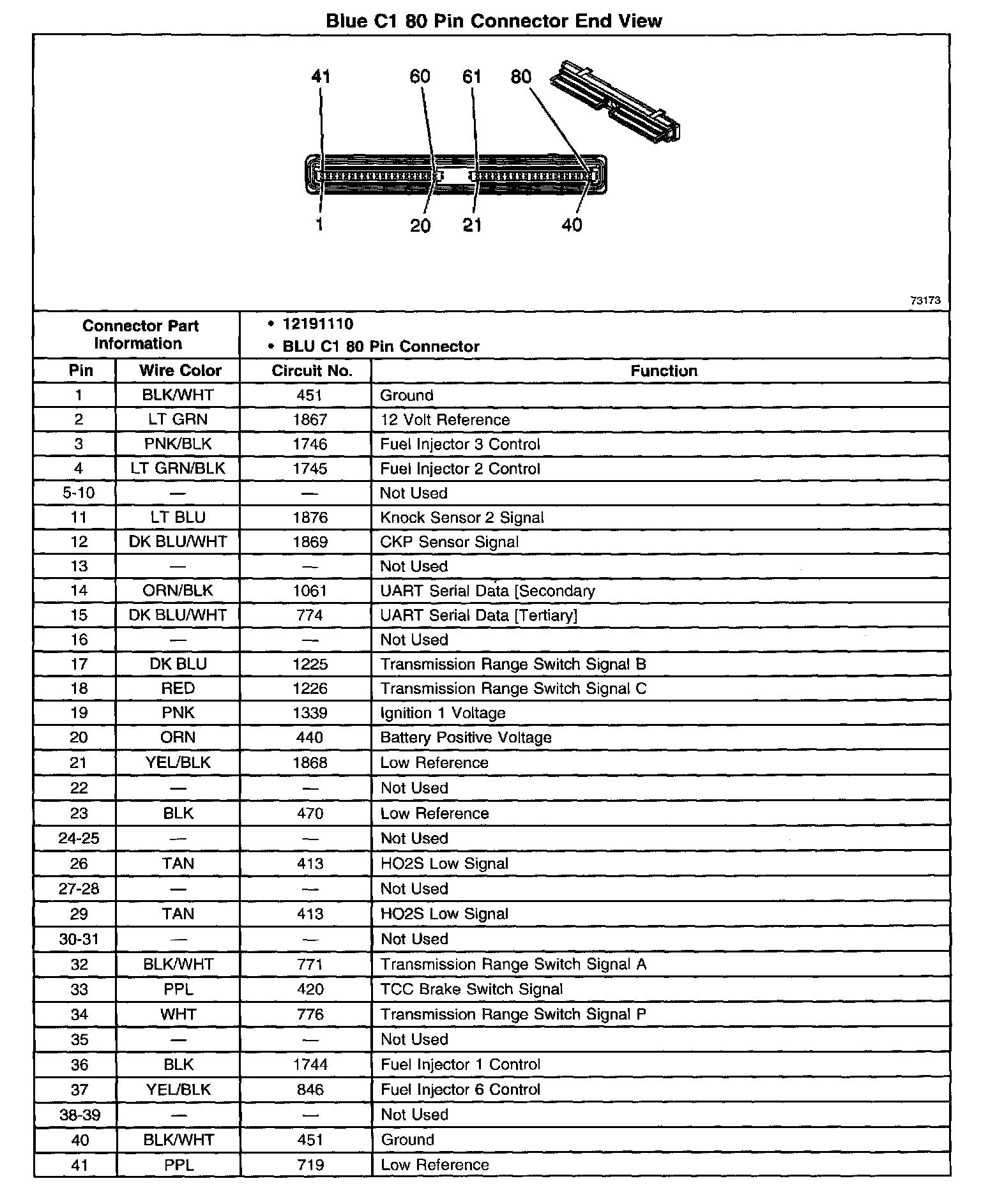

Blue C1 80 Pin Connector End View (Part 1 Of 2):

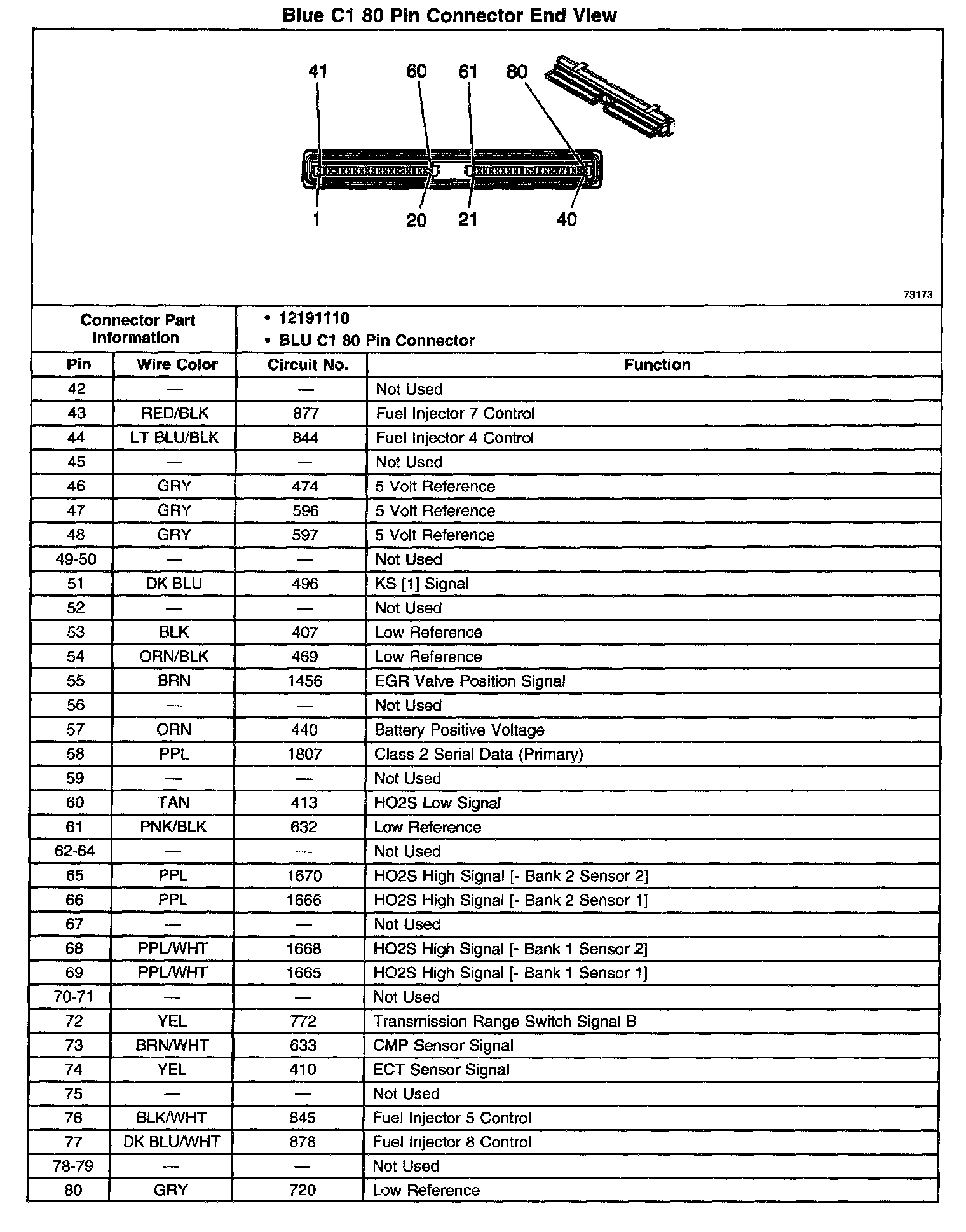

Blue C1 80 Pin Connector End View (Part 2 Of 2):
