Driver C1 (Telescopic and Memory)

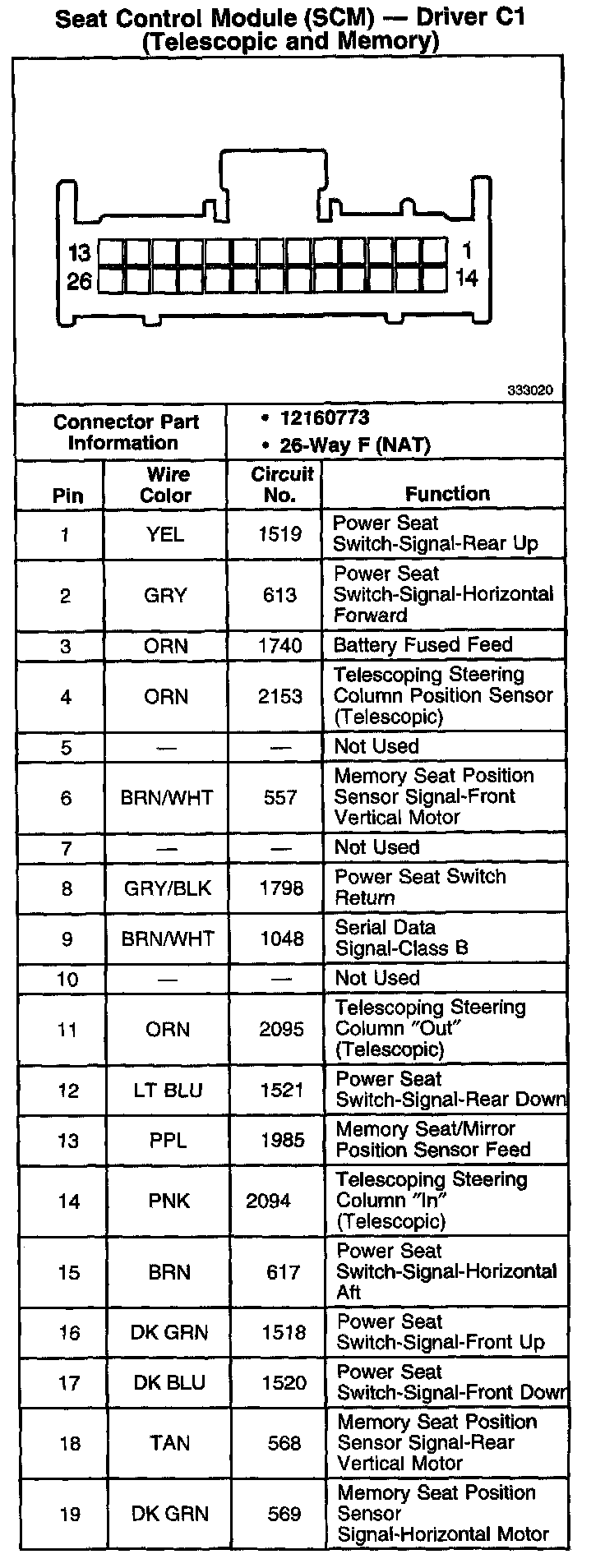

Seat Control Module (SCM) - Driver C1 (Telescopic And Memory) (Part 1 Of 2):



Seat Control Module (SCM) - Driver C1 (Telescopic And Memory) (Part 2 Of 2):
