Air Bag Control Module

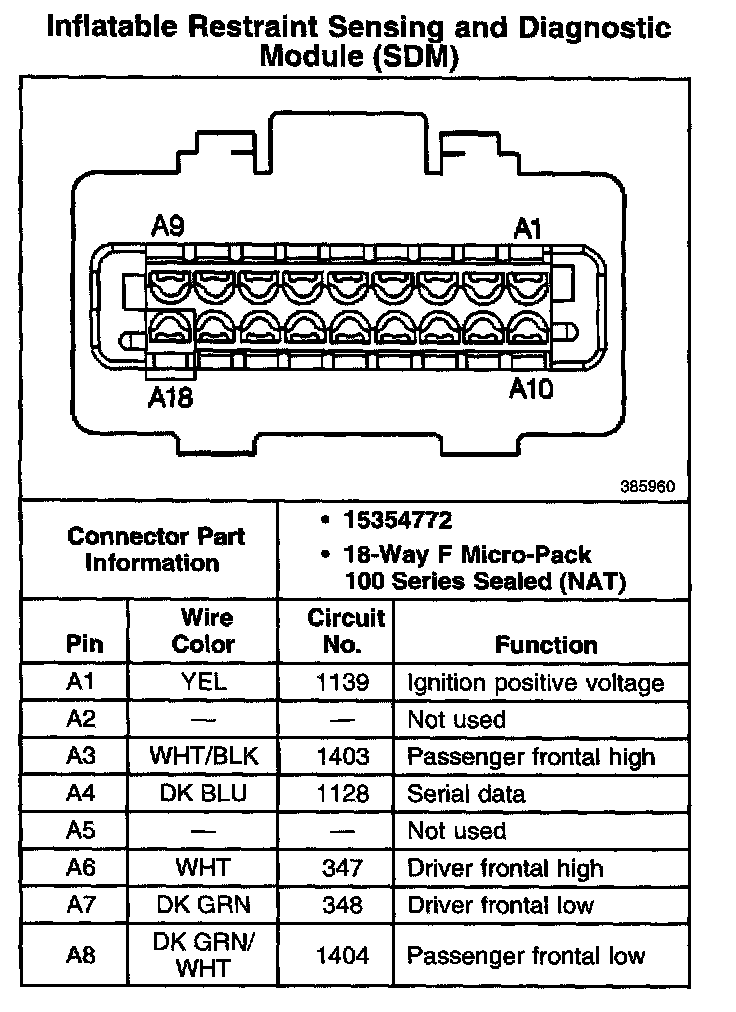

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 1 Of 2):

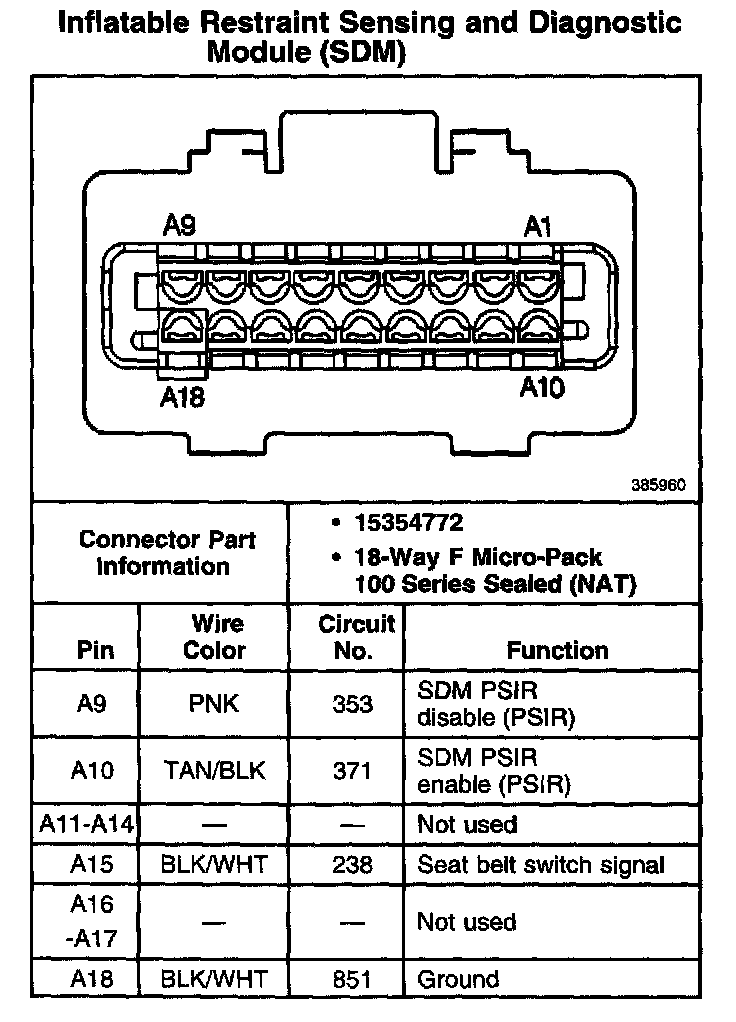

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 2 Of 2):
