Component Locations

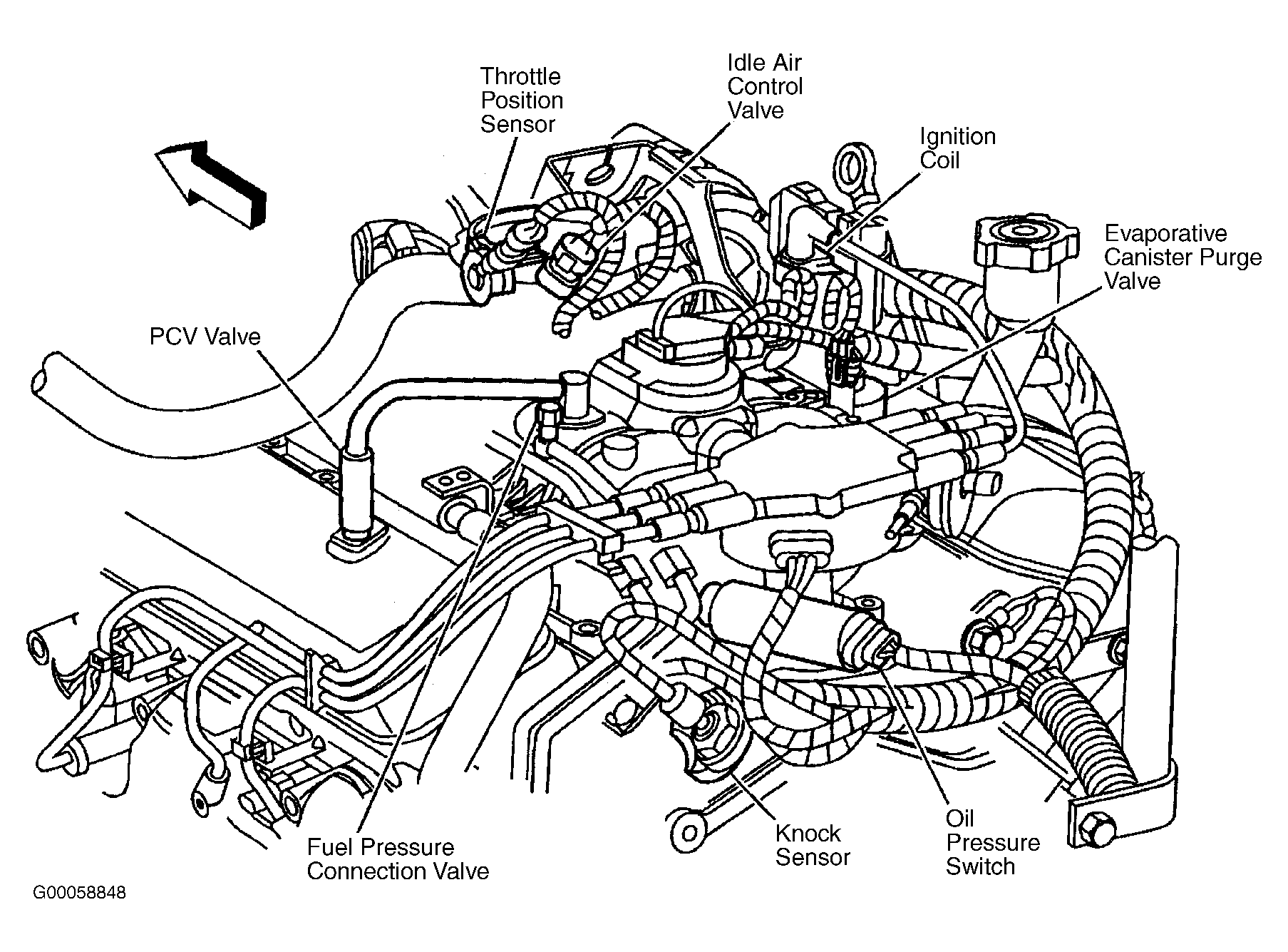

Fig 1: Locating Engine Sensors (1 of 3)

Courtesy of GENERAL MOTORS CORP.

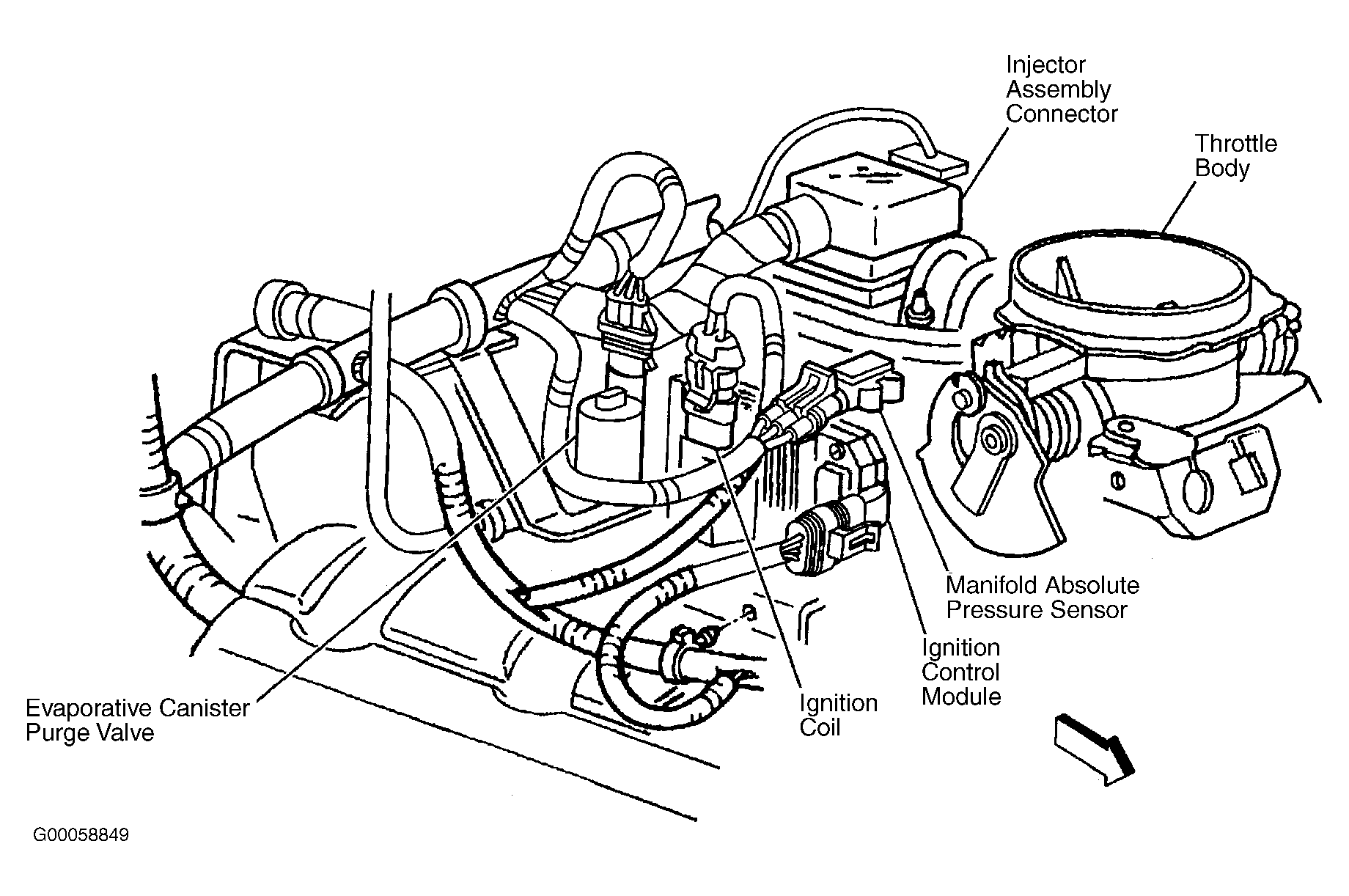

Fig 2: Locating Engine Sensors (2 of 3)

Courtesy of GENERAL MOTORS CORP.

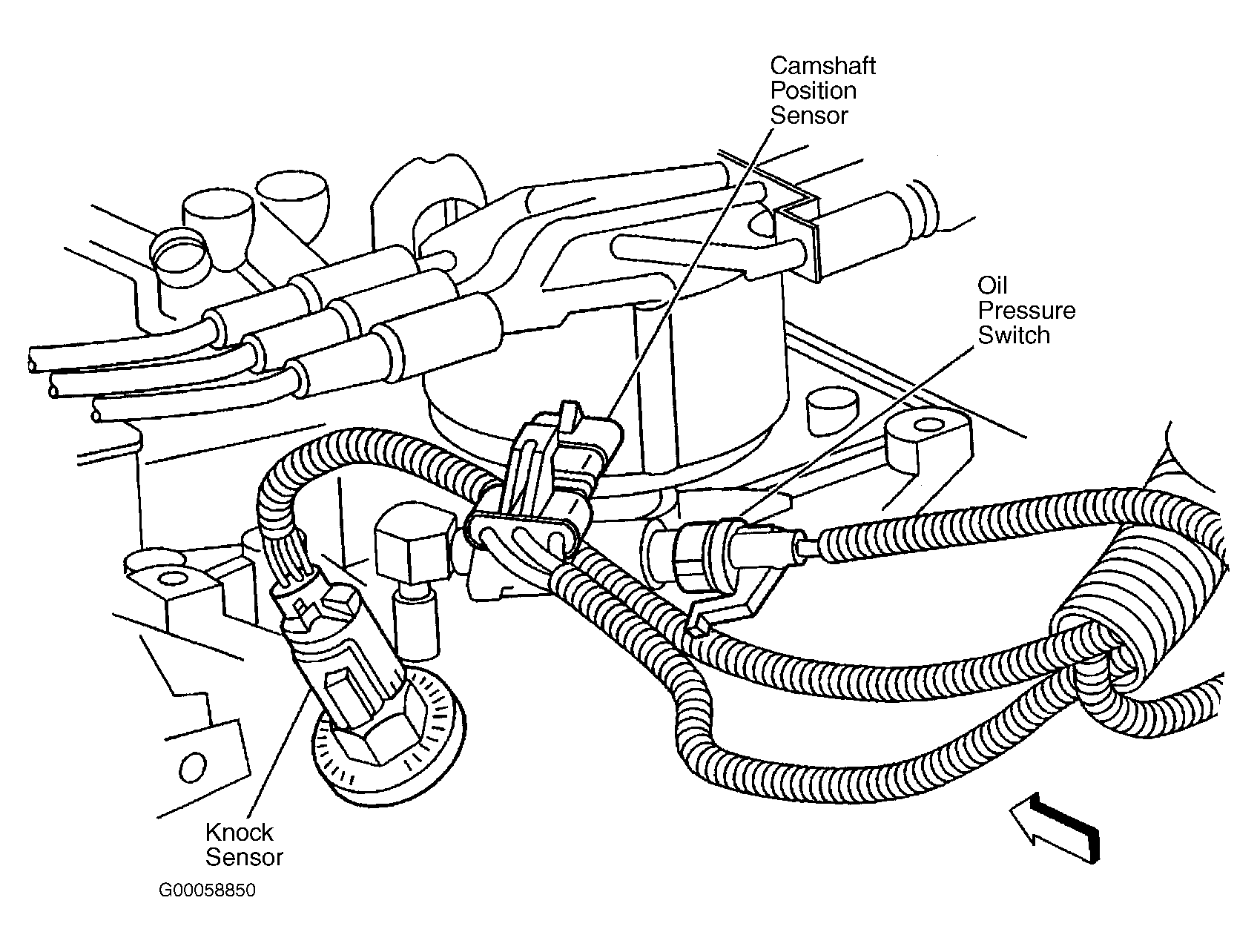

Fig 3: Locating Engine Sensors (3 of 3)

Courtesy of GENERAL MOTORS CORP.

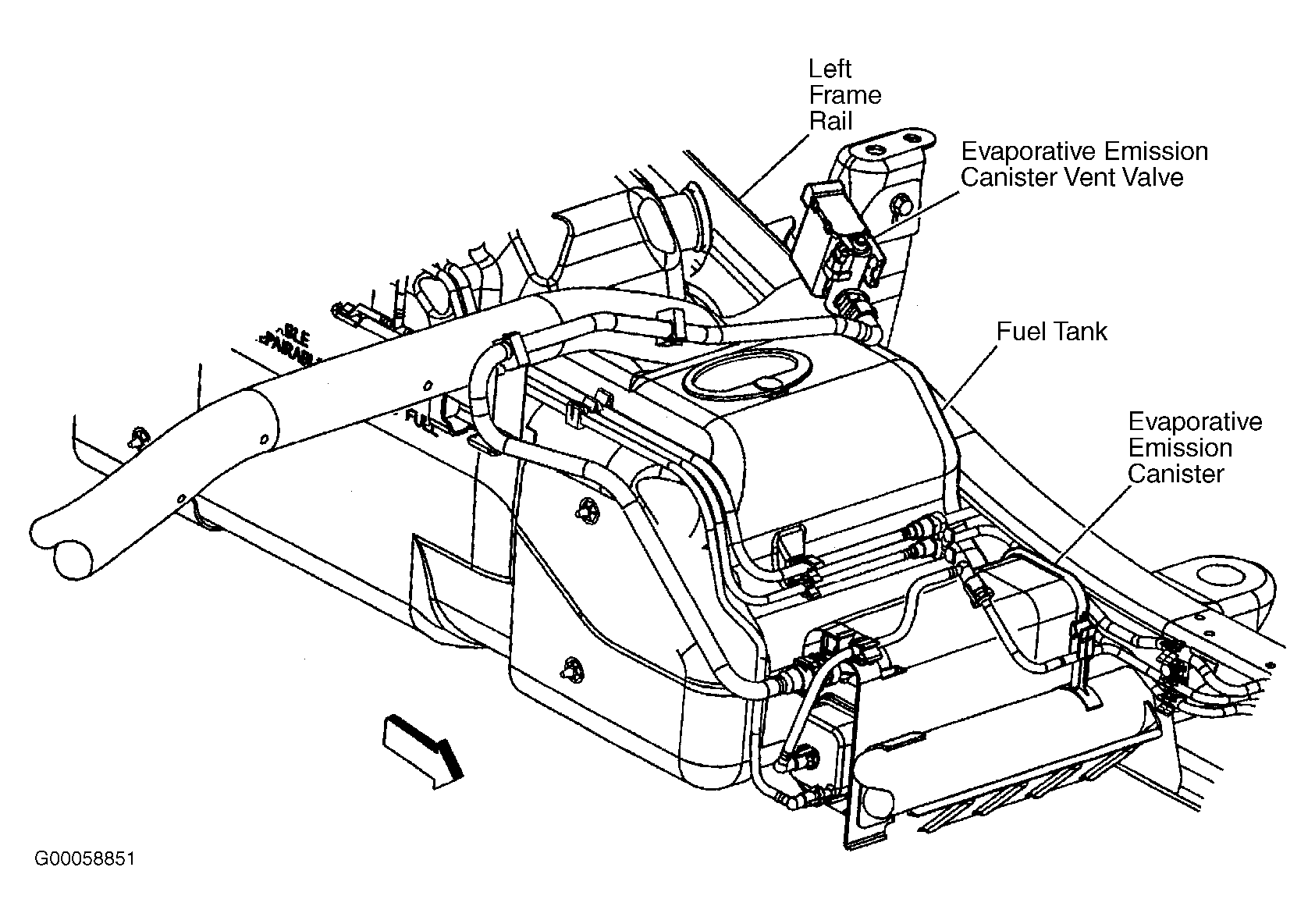

Fig 4: Locating Evaporative Emission Components ("C" & "K" Series)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Evaporative Emission Components ("G" Series)

Courtesy of GENERAL MOTORS CORP.

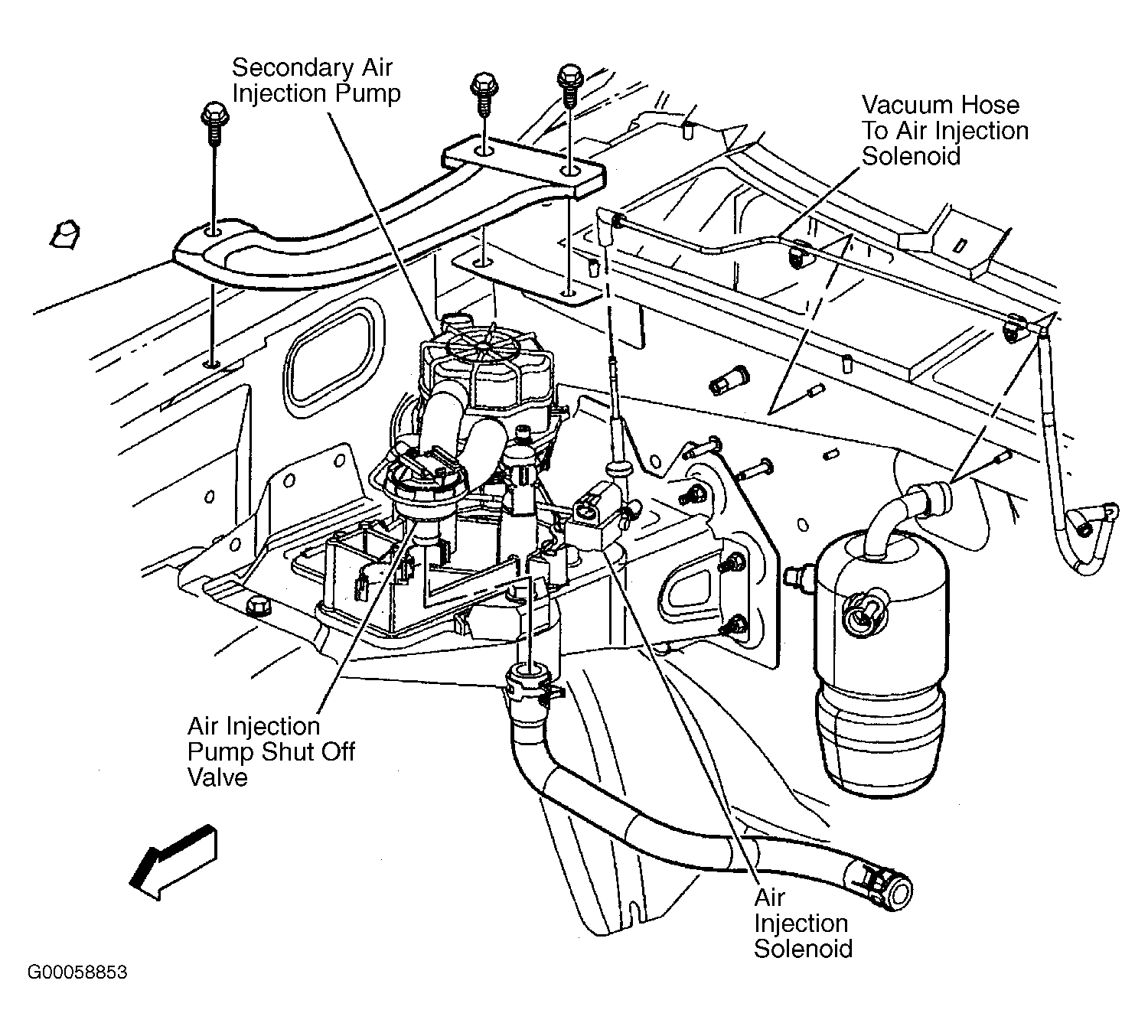

Fig 6: Locating Secondary Air Injection Components ("C" & "K" Series)

Courtesy of GENERAL MOTORS CORP.

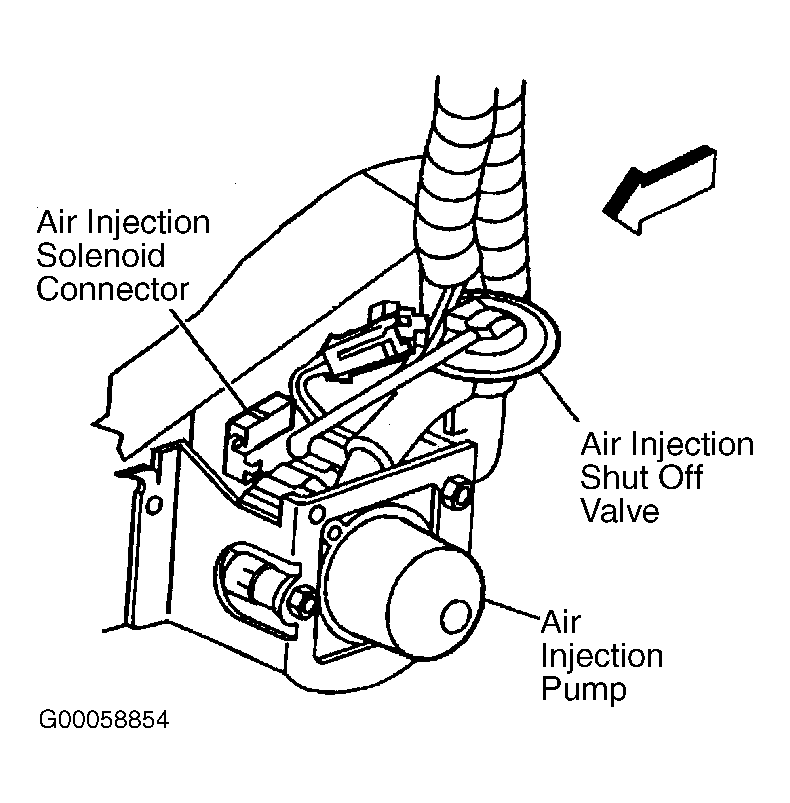

Fig 7: Locating Secondary Air Injection Components ("G" Series)

Courtesy of GENERAL MOTORS CORP.
