Park/Neutral Position and Backup Lamp Switch, Connector C2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

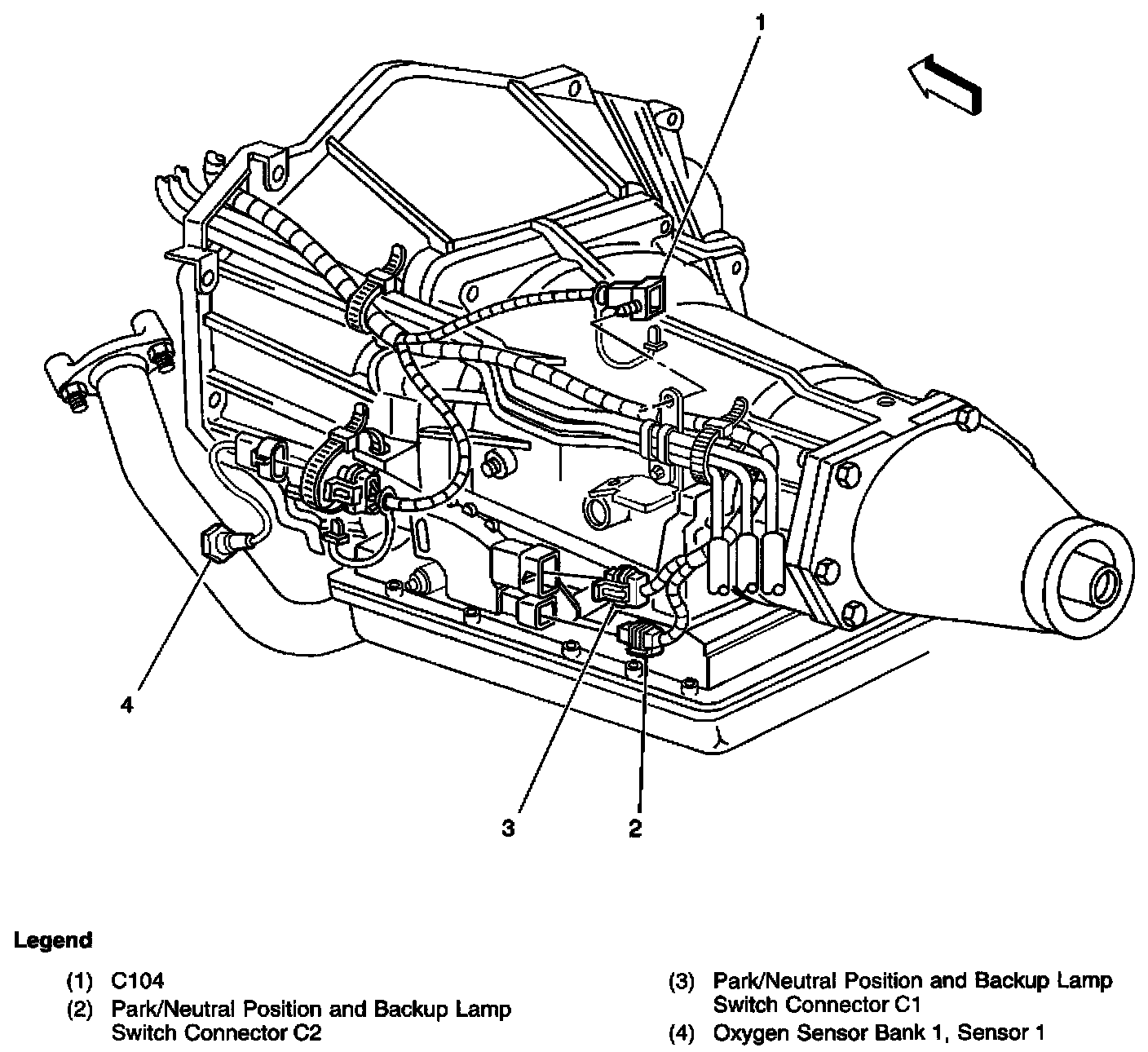

Park/Neutral Position and Backup Lamp Switch, Connector C2
Locations View:
(4 Cavities) LH of the transmission
