Connector Identification

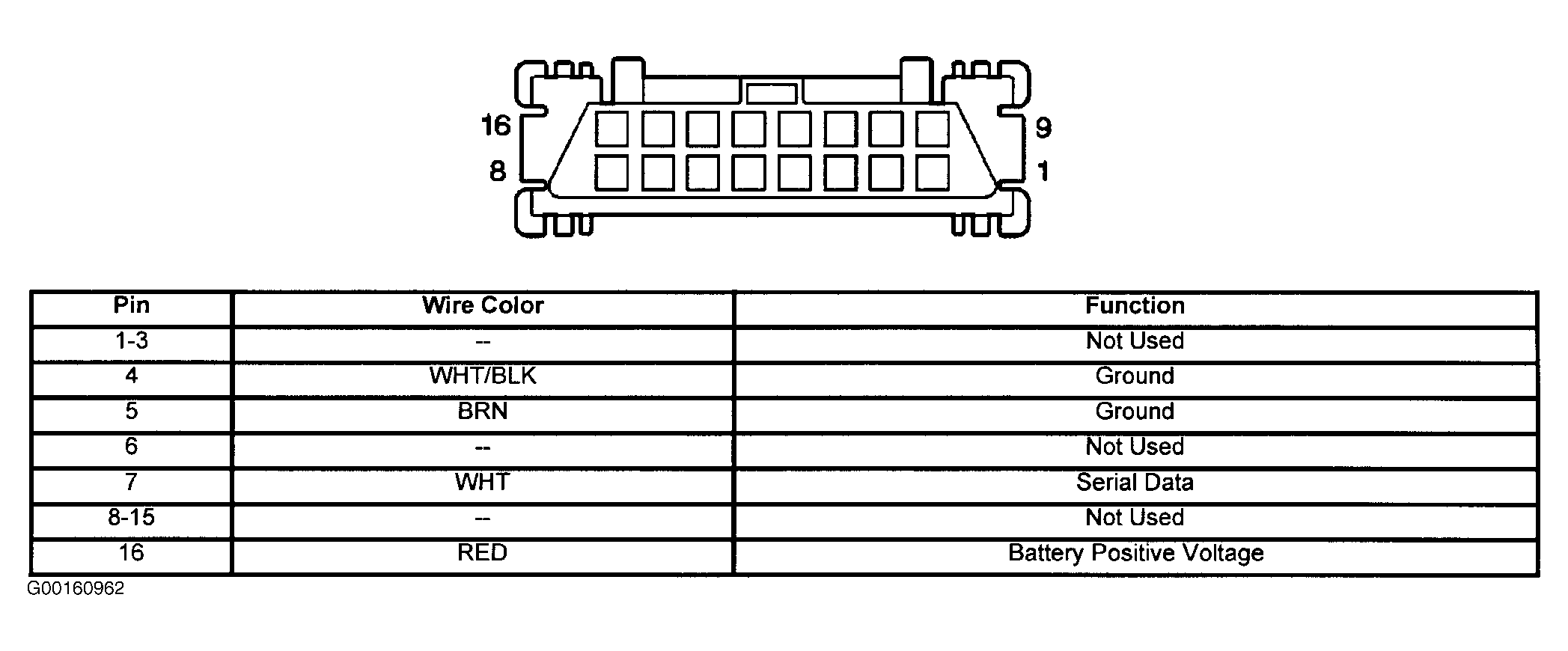

Fig 1: Identifying OBD-II DLC Terminals
G00160962Courtesy of GENERAL MOTORS CORP.

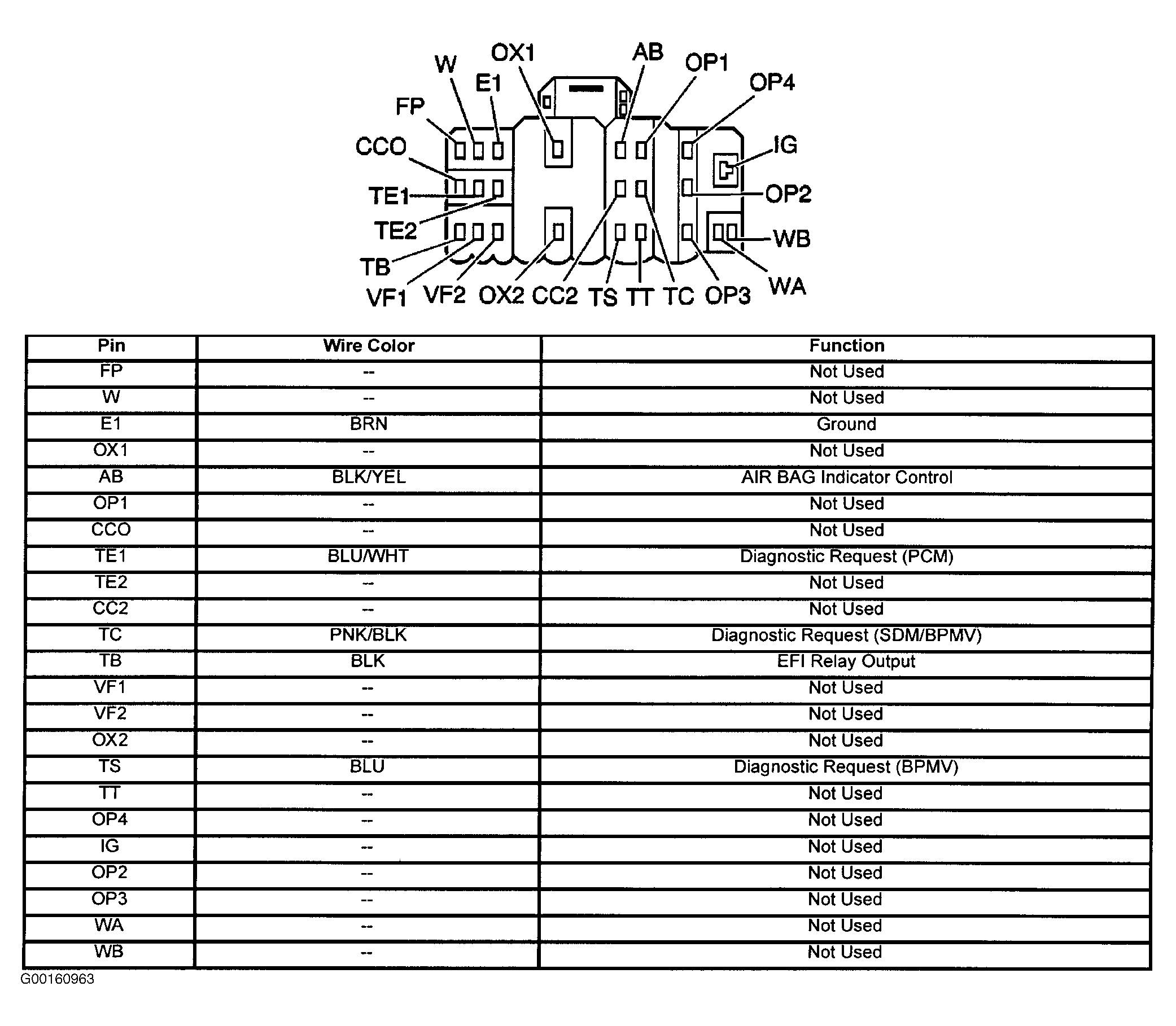

Fig 2: Identifying Underhood DLC Terminals
G00160963Courtesy of GENERAL MOTORS CORP.
