Chevrolet
>>
2000
>>
Impala LS
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Right Instrument Panel Fuse Block
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Right Instrument Panel Fuse Block
NOTE:
Right instrument panel fuse block is located on passenger's side end of instrument panel. See
Fig 1
.
Fig 1: Locating Right Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

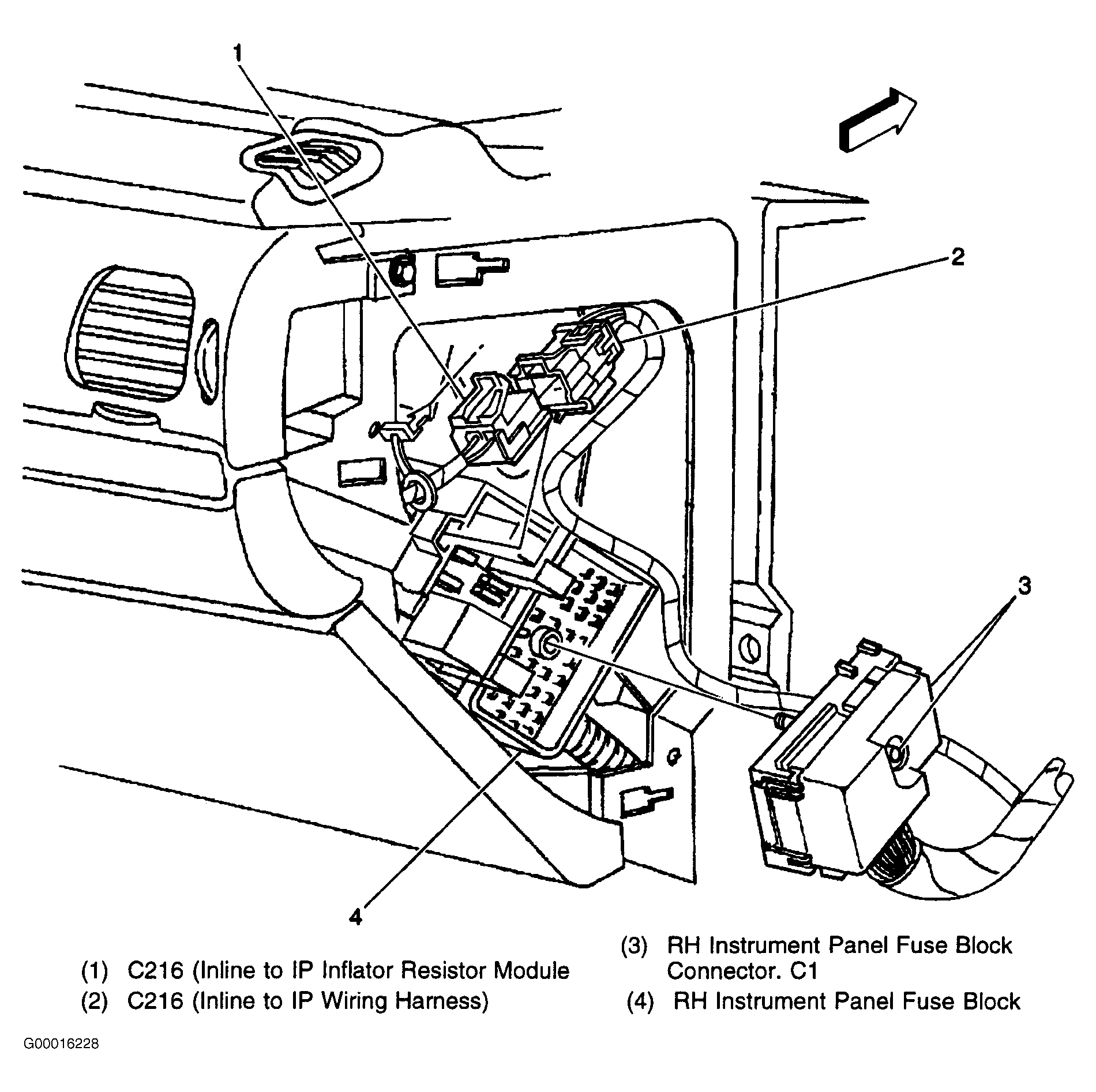

Fig 2: Identifying Right Instrument Panel Fuse Block Components
Courtesy of GENERAL MOTORS CORP.

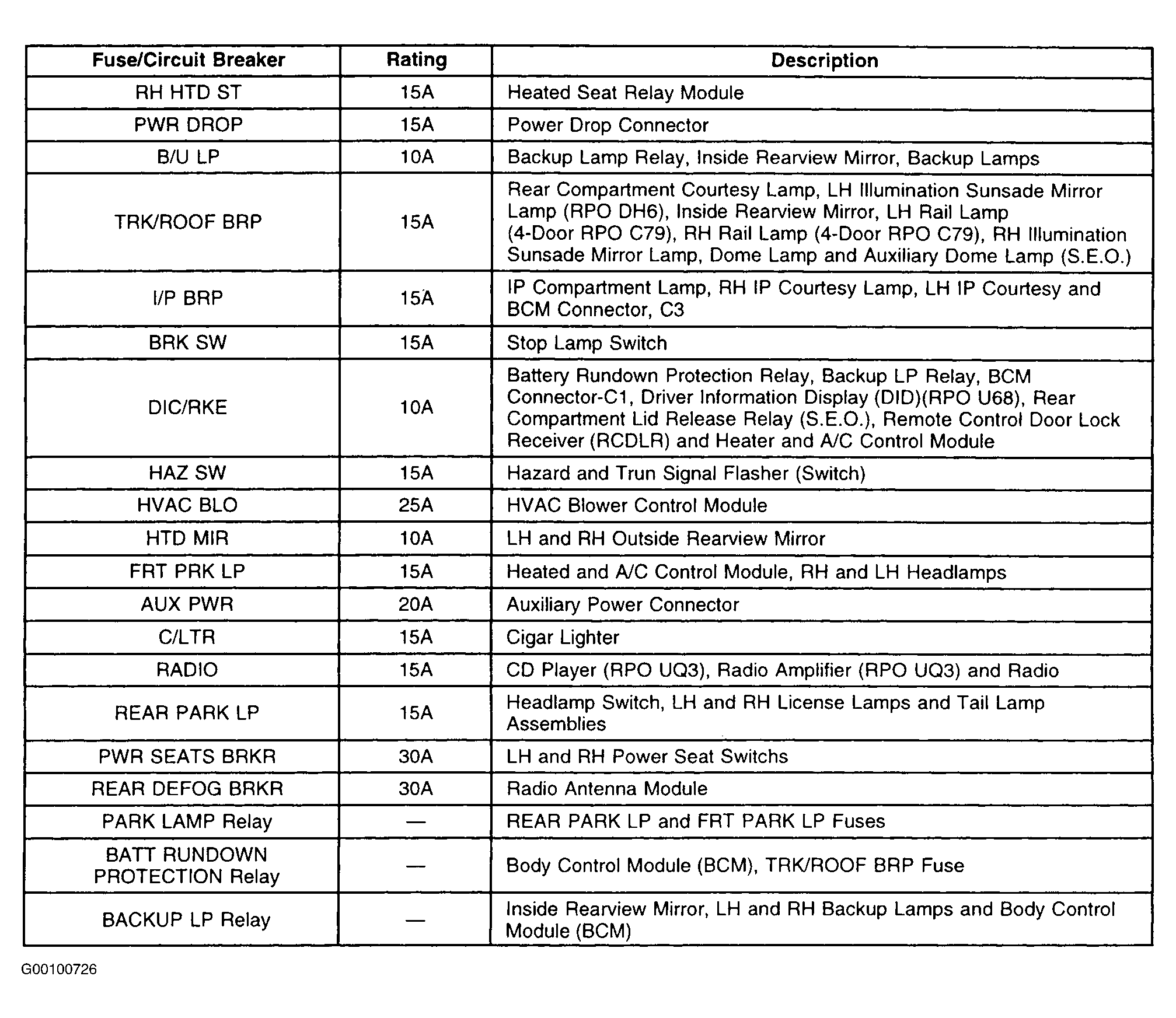

Fig 3: Right Instrument Panel Fuse Block Legend
Courtesy of GENERAL MOTORS CORP.
