Home >> Chevrolet >> 2000 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

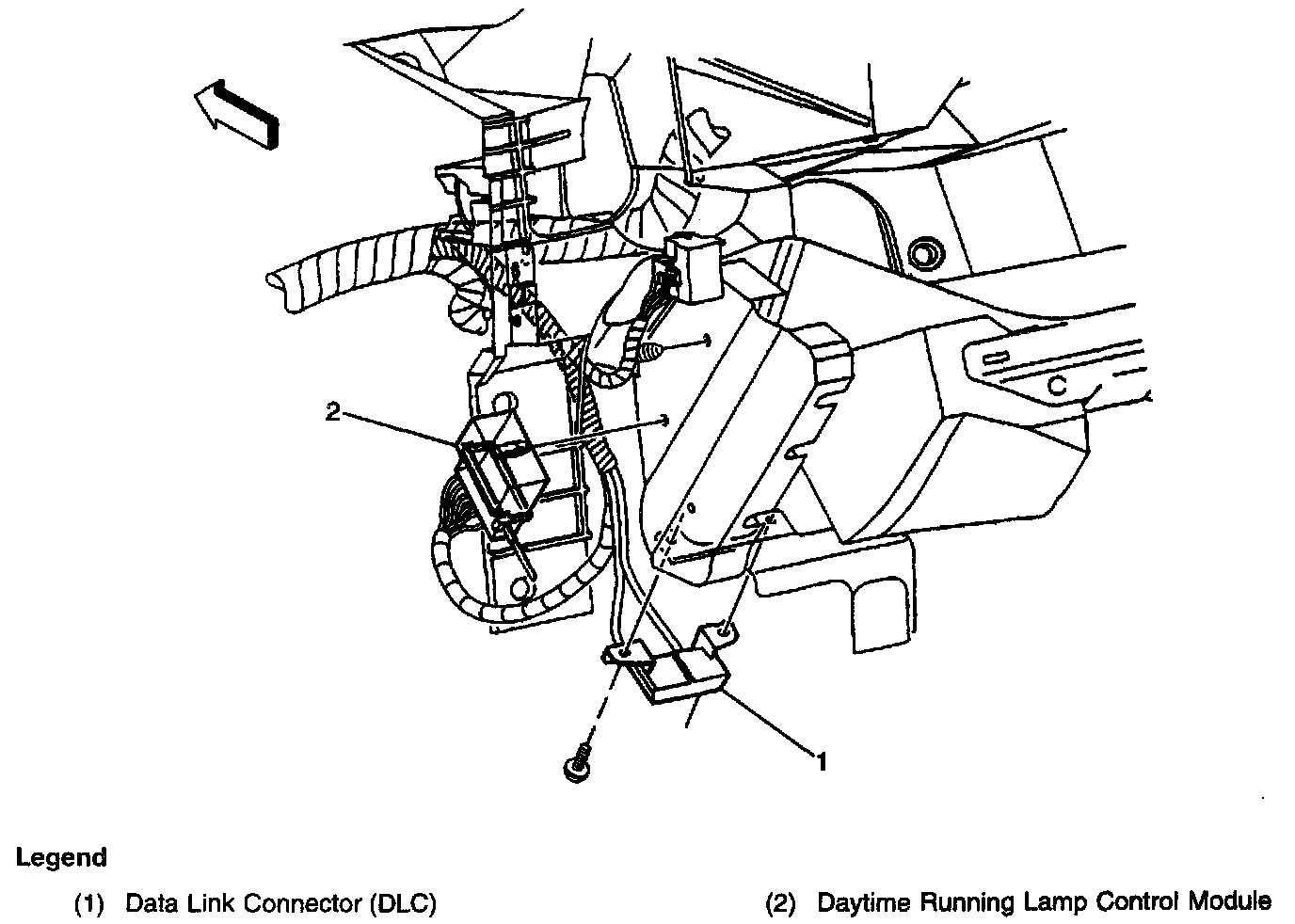

Data Link Connector: Locations

Locations View:




Locations View:

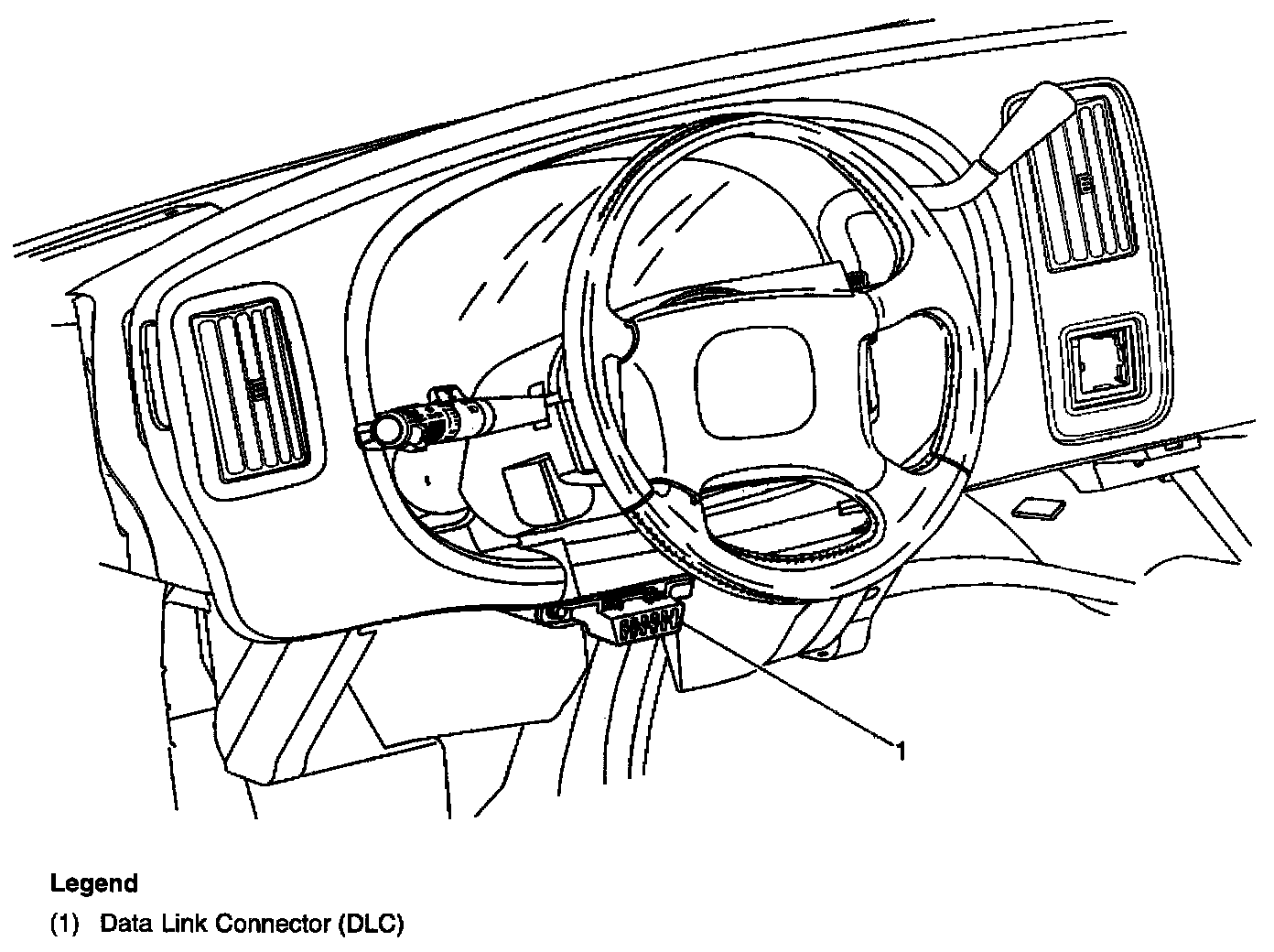

Under LH side of IP
