Axle Vibration Damper Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the LH rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Steering And Suspension.

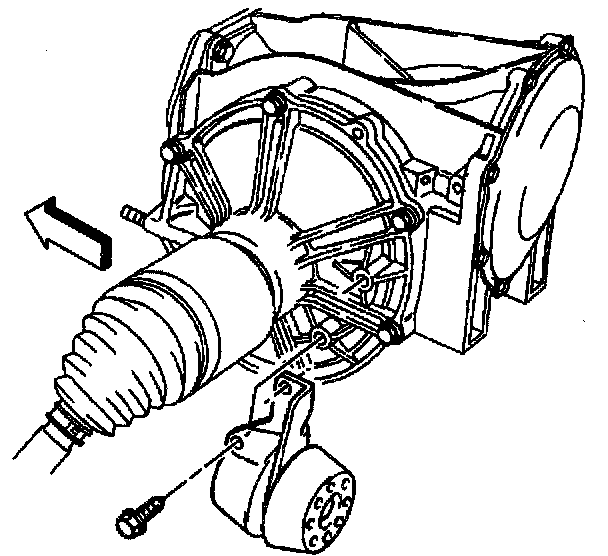

3. Remove the damper/tuned absorber mounting bolts.
4. Remove the damper/tuned absorber.

Installation Procedure

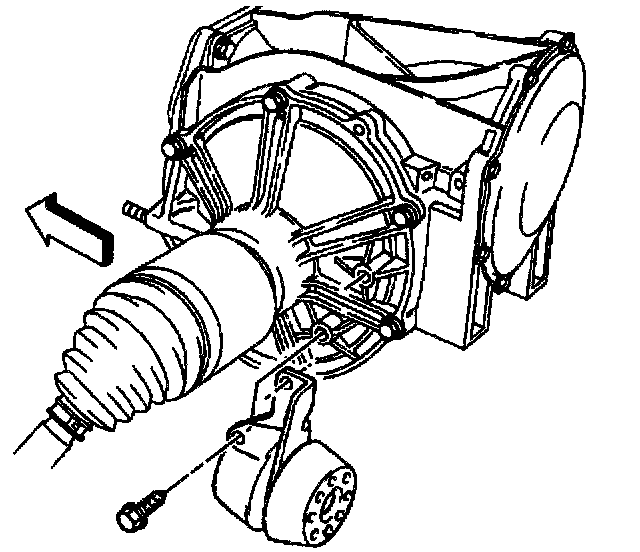

1. Install the damper/tuned absorber to the differential.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the damper/tuned absorber mounting bolts.
Tighten the damper/tuned absorber mounting bolts to 25 Nm (18 ft. lbs.).
3. Install the LH rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Steering And Suspension.
4. Lower the vehicle.
