Steering Column - Tilt - Non-Telescoping With Sensor

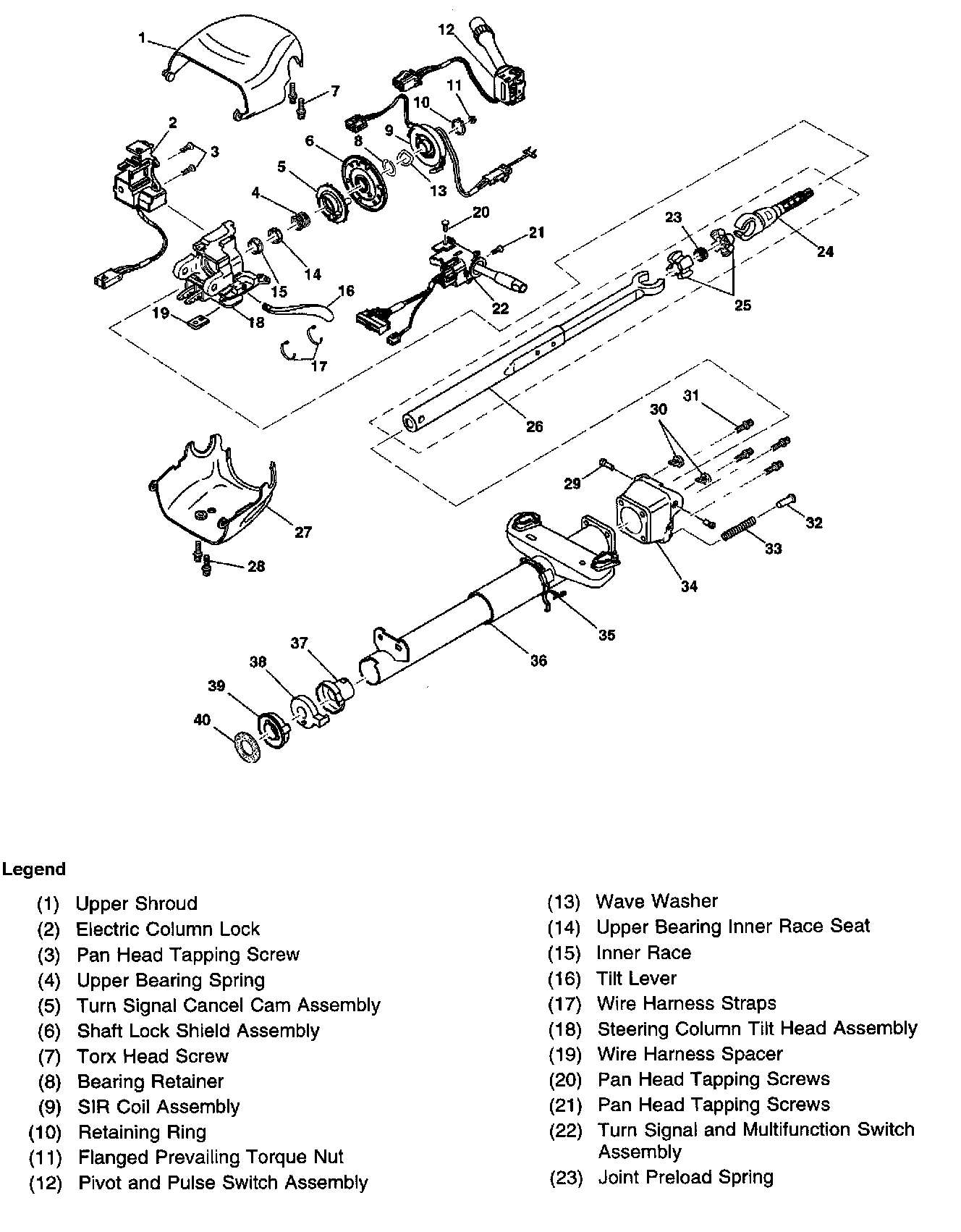

Steering Column - Disassembled View (Non-Telescoping With Sensor) Tilt Steering Column
