Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the sunroof.
  2. Remove the headliner panel. Refer to HEADLINER REPLACEMENT in Interior Trim.
  3. Disconnect the drain hose connections from the sunroof housing.
  4. With an assistant, remove the sunroof module bolts (2).
  5. With an assistant, remove the sunroof module assembly (1), by pulling the module downward at the rear mounting points to disengage the white locating pins.

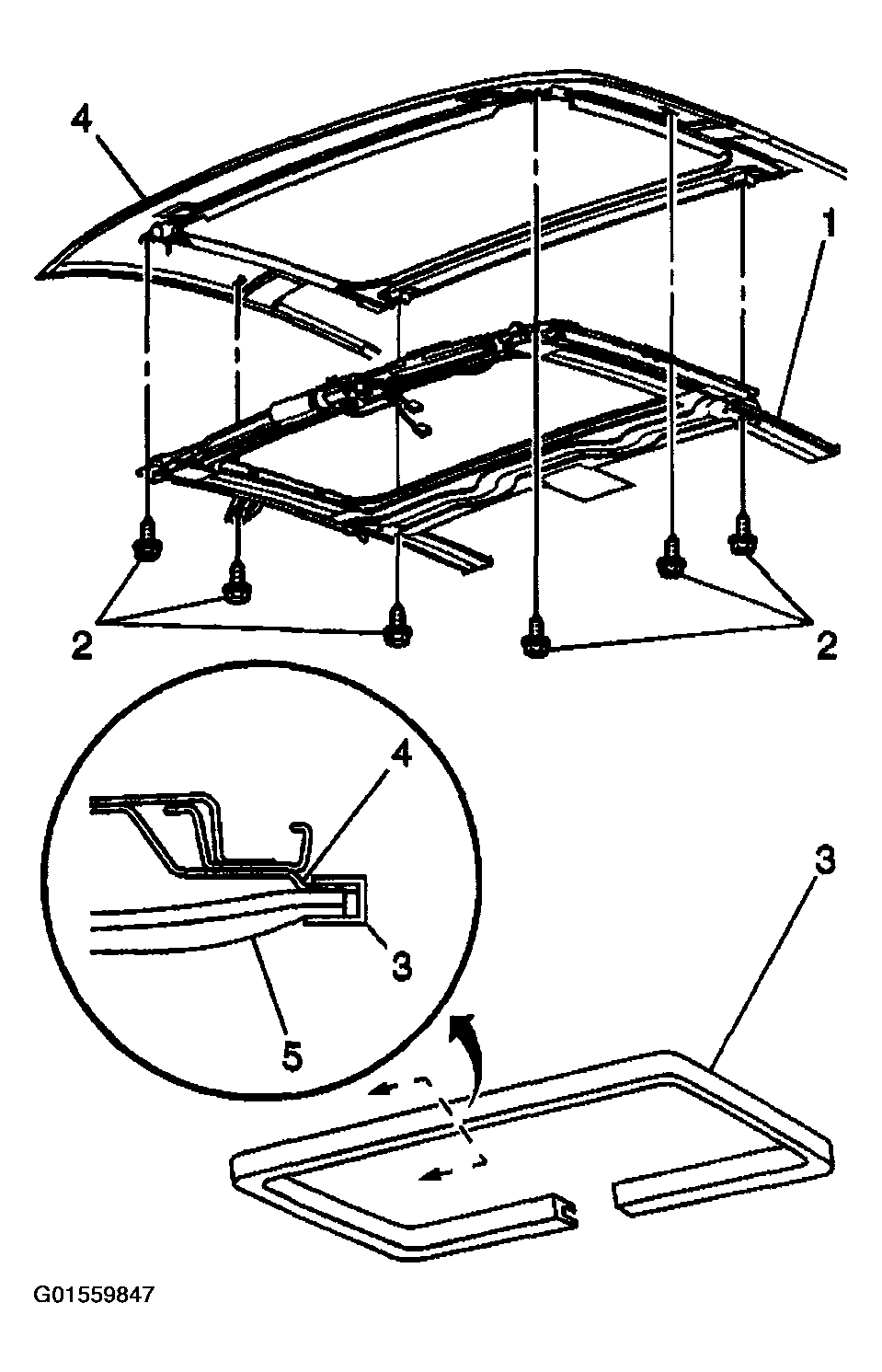

    Fig 1: Removing Sunroof Module Assembly
    G01559847Courtesy of GENERAL MOTORS CORP.
