Power Roof Systems Connector End Views
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

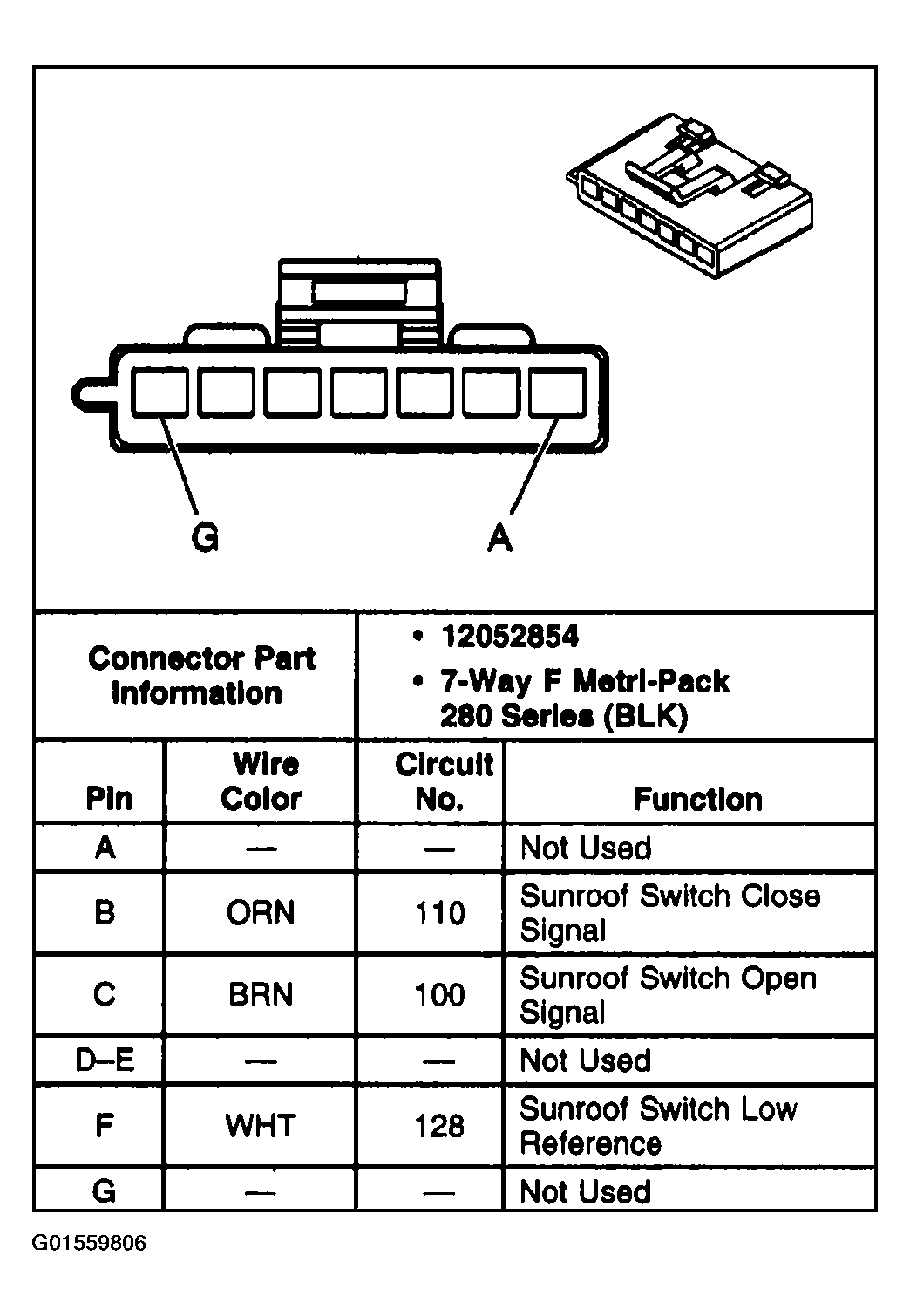

Fig 1: Identifying Sunroof Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

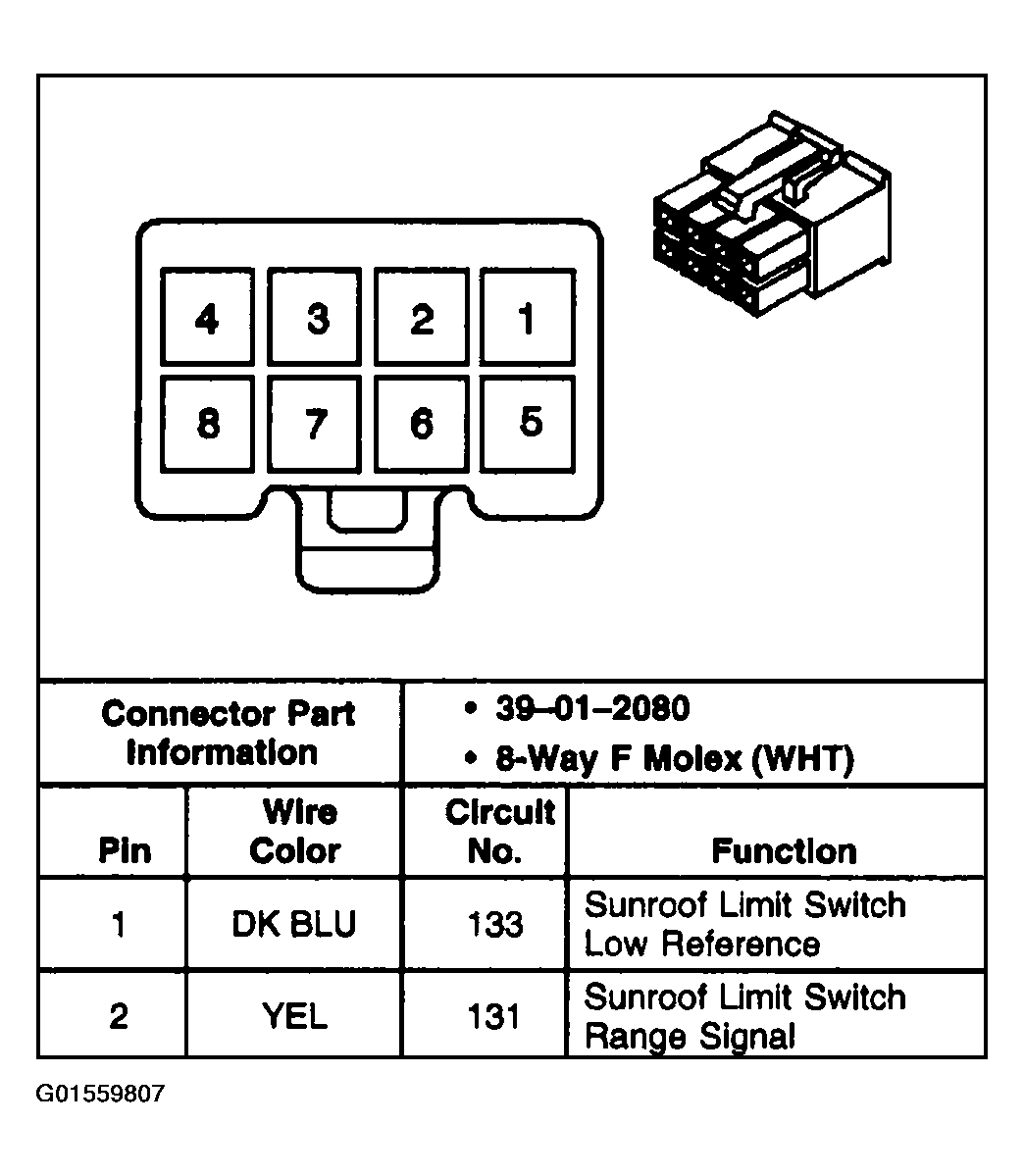

Fig 2: Identifying Sunroof Control Module, C1 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

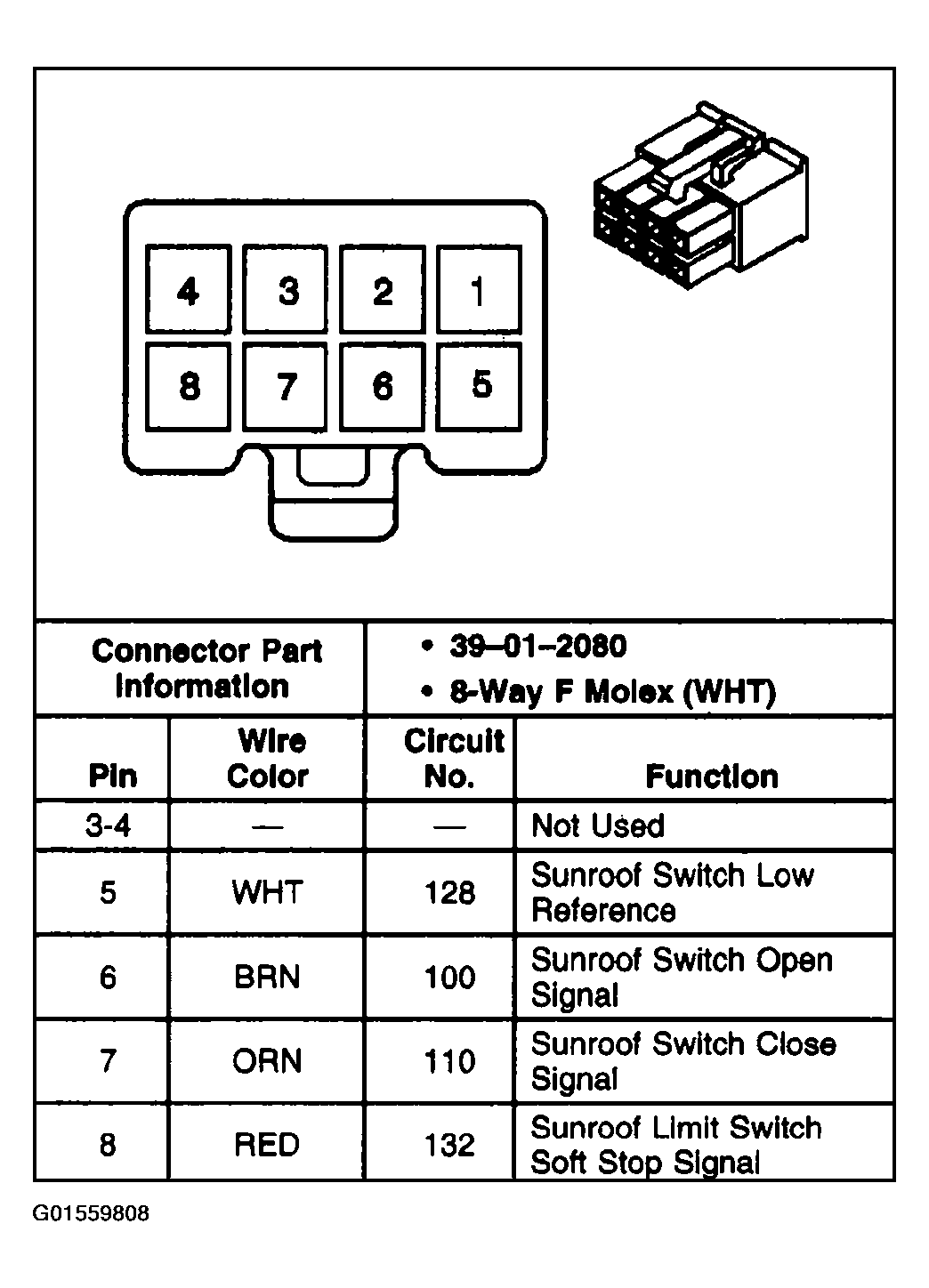

Fig 3: Identifying Sunroof Control Module, C1 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Sunroof Control Module C2 Connector End View
