Power, Ground, Fuel Tank Module and Injectors

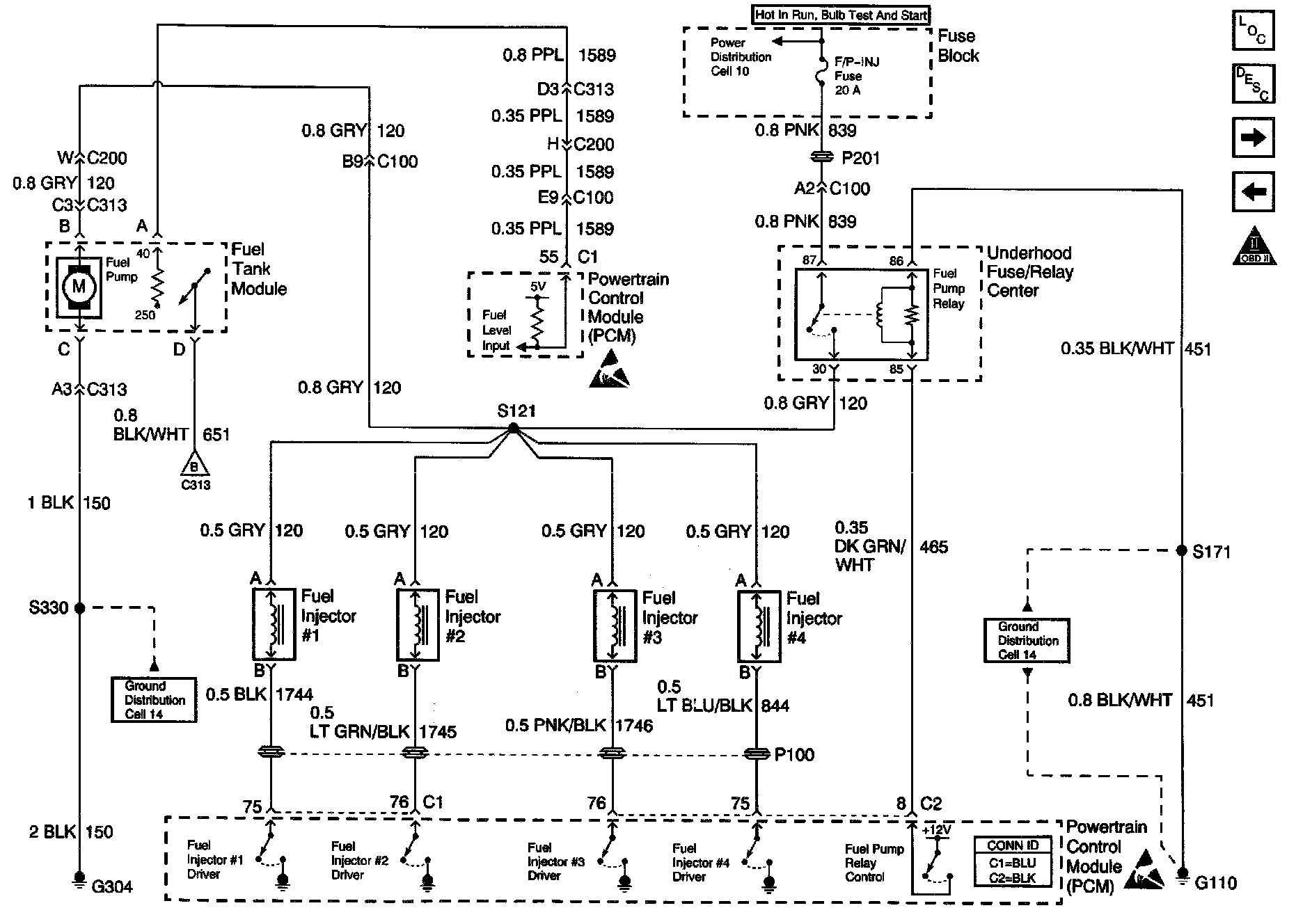

Engine Controls Schematics: Power, Ground, Fuel Tank Module And Injectors:
