Heater-A/C and Rear Defogger Control Assembly

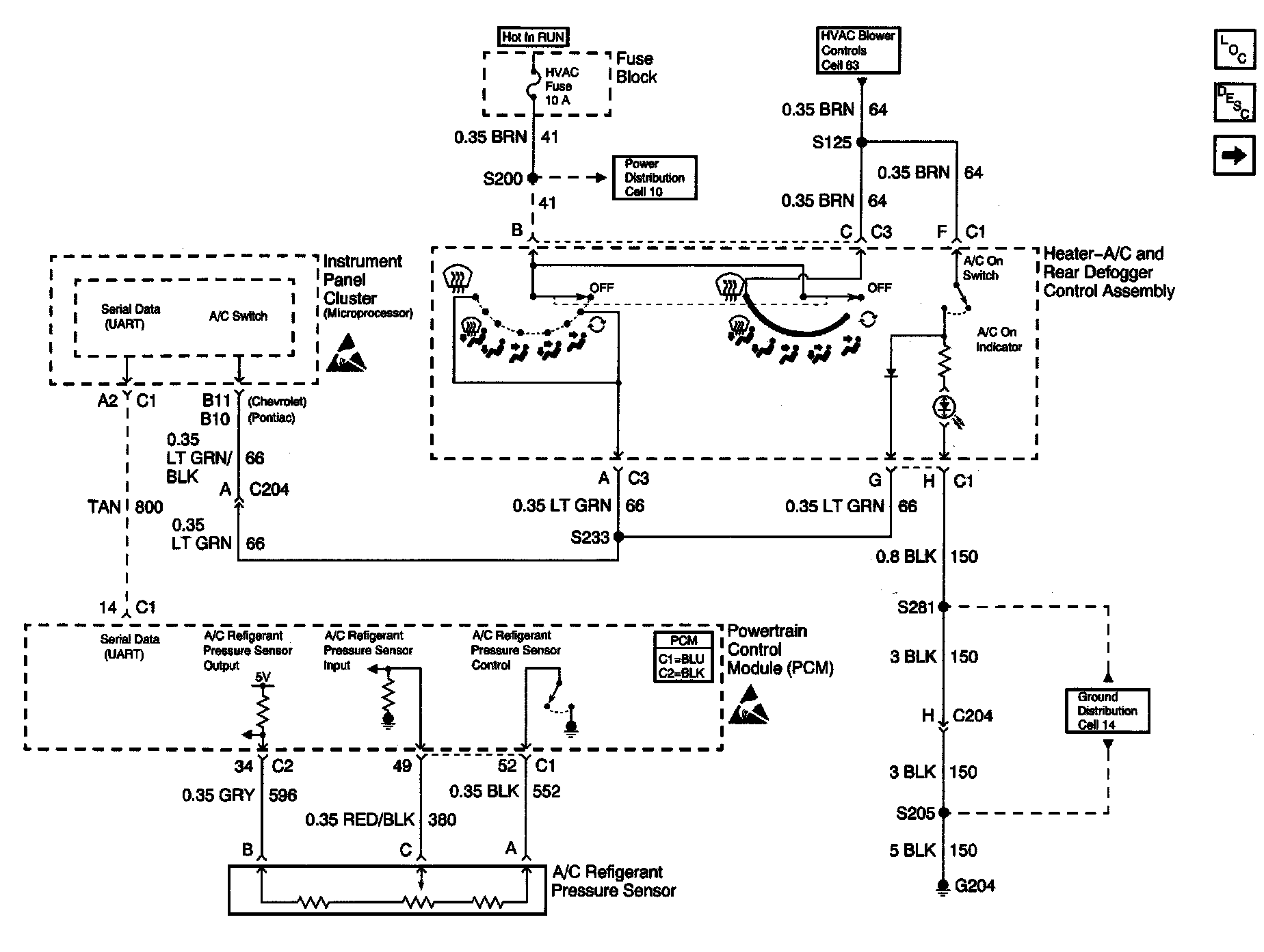

HVAC Compressor Control Schematics: Heater-A/C And Rear Defogger Control Assembly:

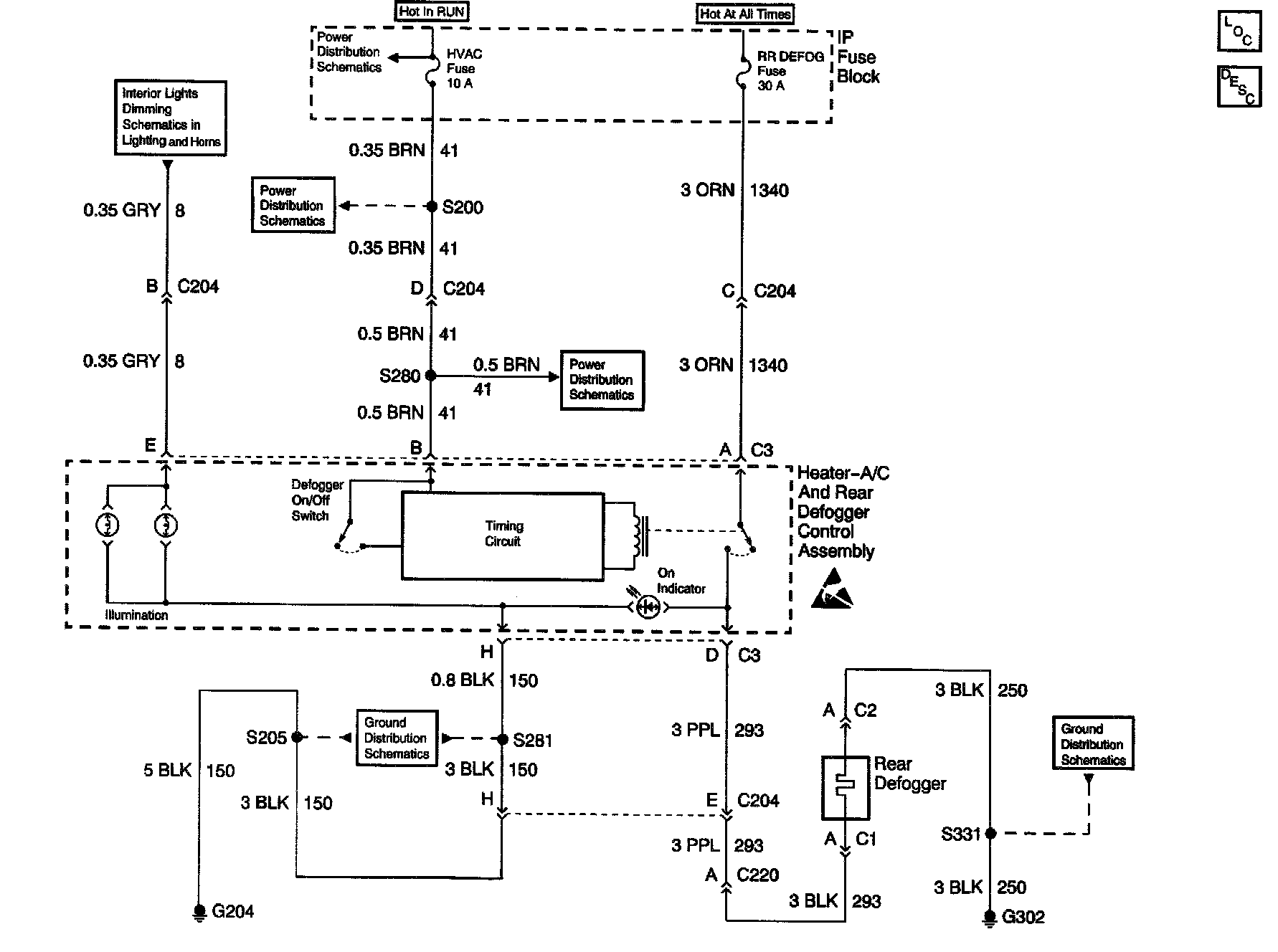

Defogger Schematics : Rear Defogger Control Assembly:
