Clutch Anticipate Switch Replacement

Removal Procedure





1. Remove the instrument panel driver knee bolster.

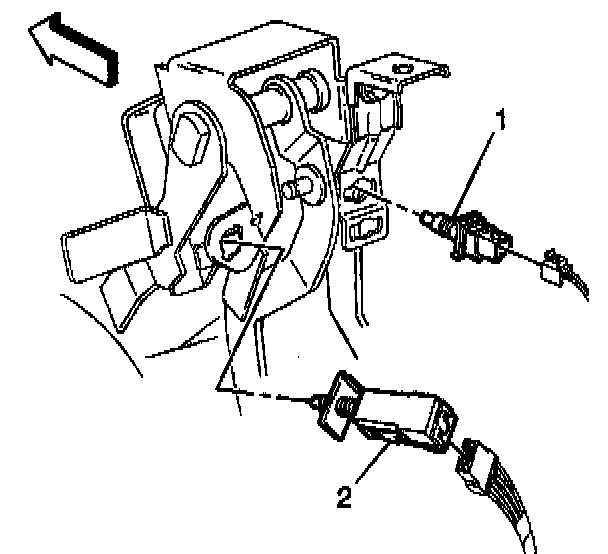

2. Disconnect the clutch anticipate switch harness electrical connector from the clutch anticipate switch (2).
3. Remove the clutch anticipate switch (2) from the pedal bracket assembly.


Installation Procedure





1. Install the clutch anticipate switch (2) to the pedal bracket assembly until fully seated.
With the clutch pedal maintained in its fully rearward position, push the switch through its retainer until the switch barrel is touching the pedal target and the switch plunger is fully depressed.
2. Connect the clutch anticipate switch electrical connector to the clutch anticipate switch (2).
3. Install the instrument panel driver knee bolster.
