Manual Transmission/Transaxle

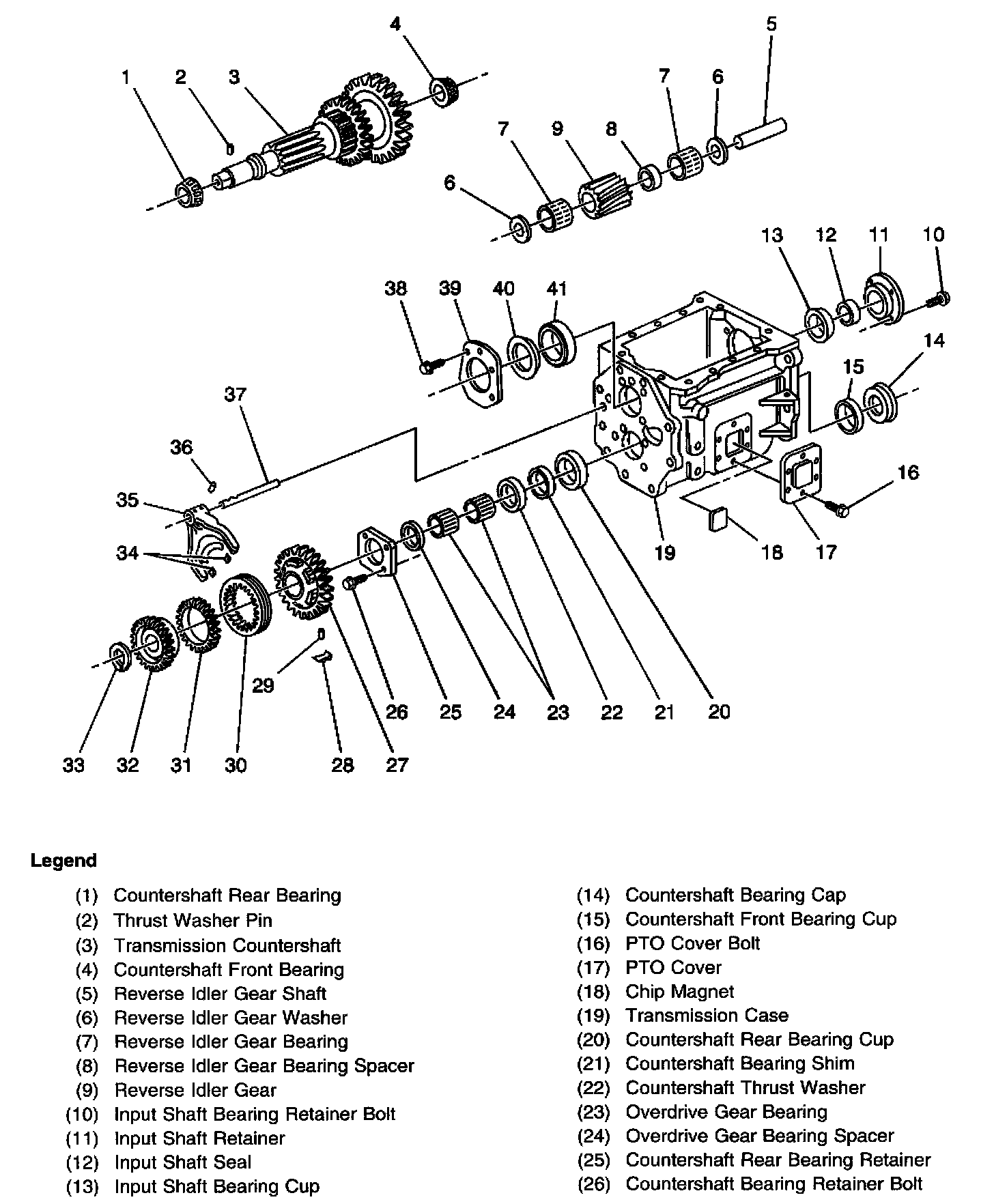

Transmission Case and Gear Sets

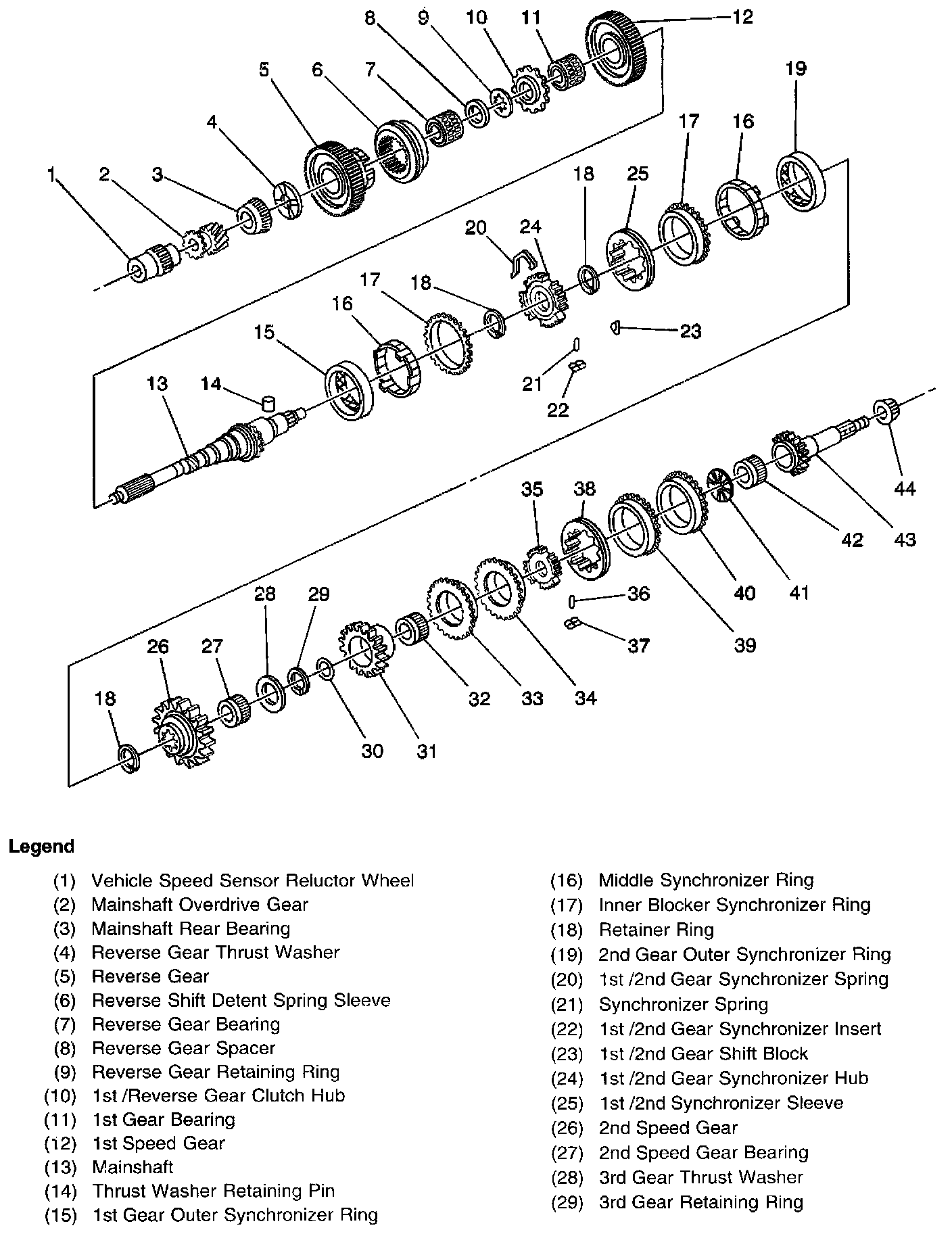

Main Drive Gear and Mainshaft Gear Sets

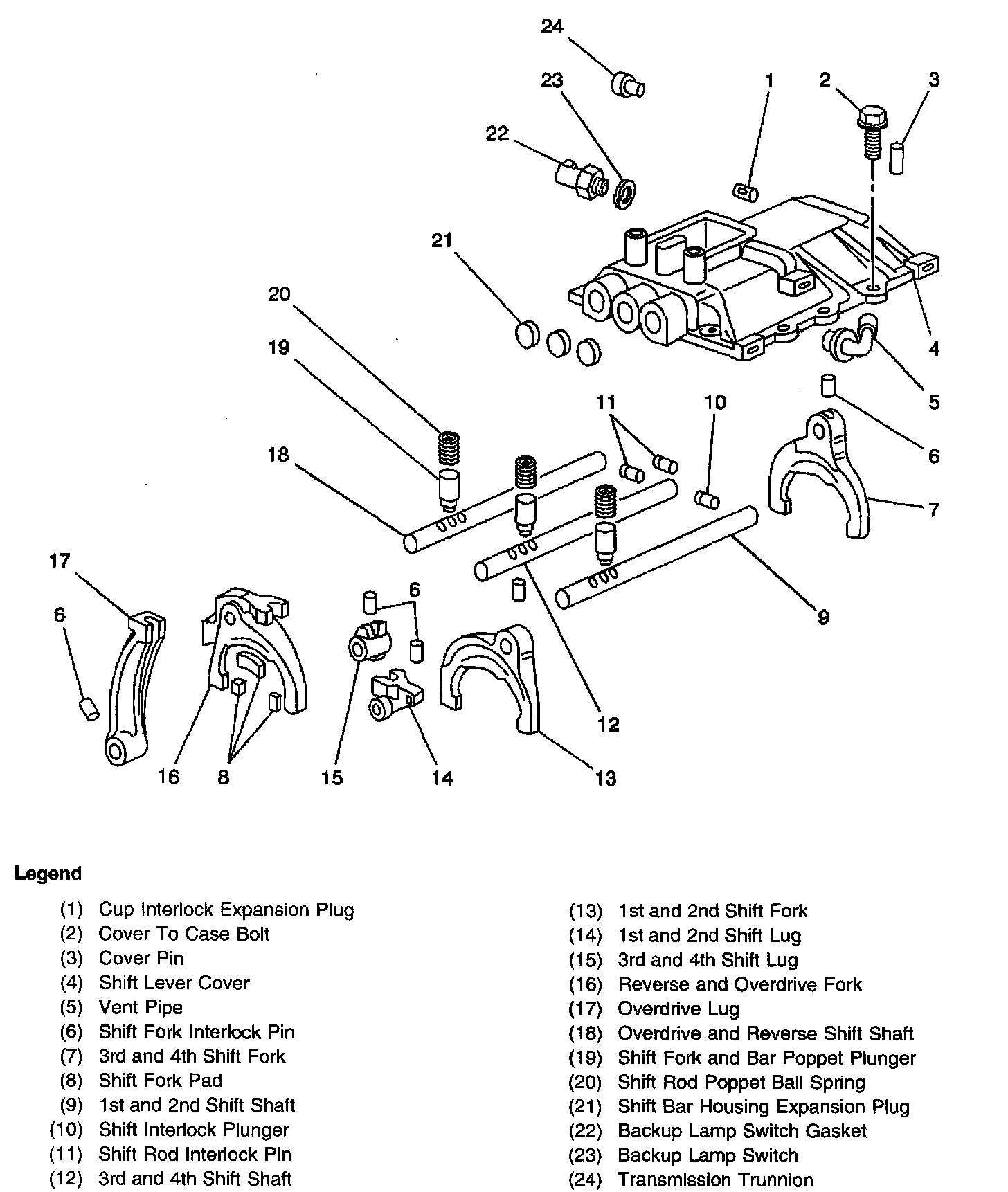

Shift Cover

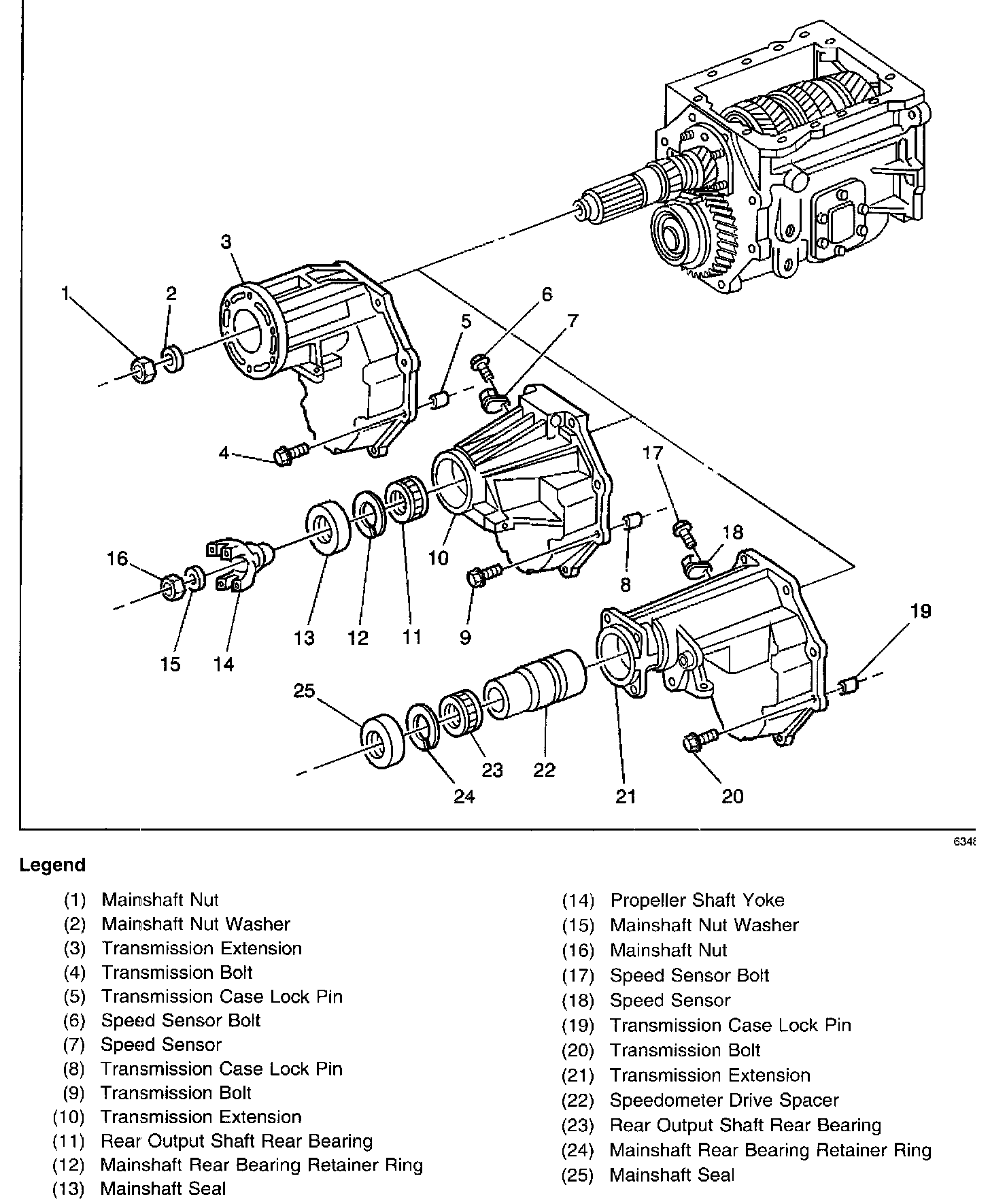

Transmission Extension
