Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Insert the hook of the wiper arm through the opening in the wiper blade.

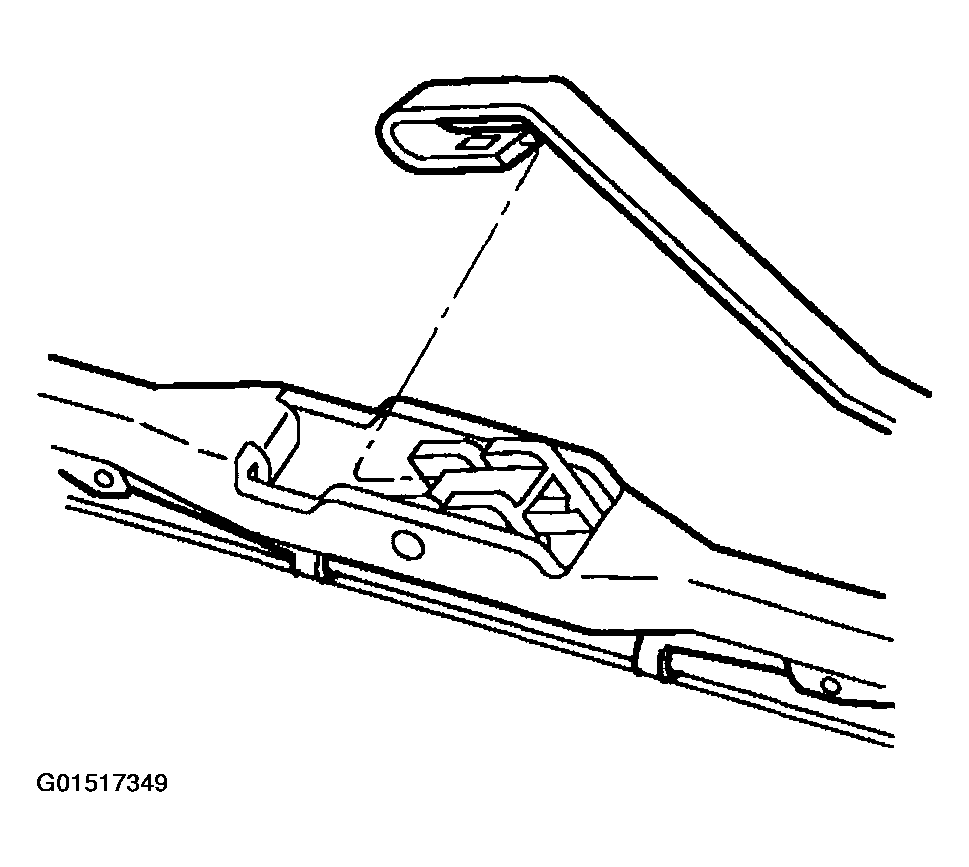

Fig 1: Inserting Wiper Arm Hook
Courtesy of GENERAL MOTORS CORP.
Position the wiper blade pivot in the inside radius of the wiper arm hook.
Pull the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.
Inspect for proper operation.

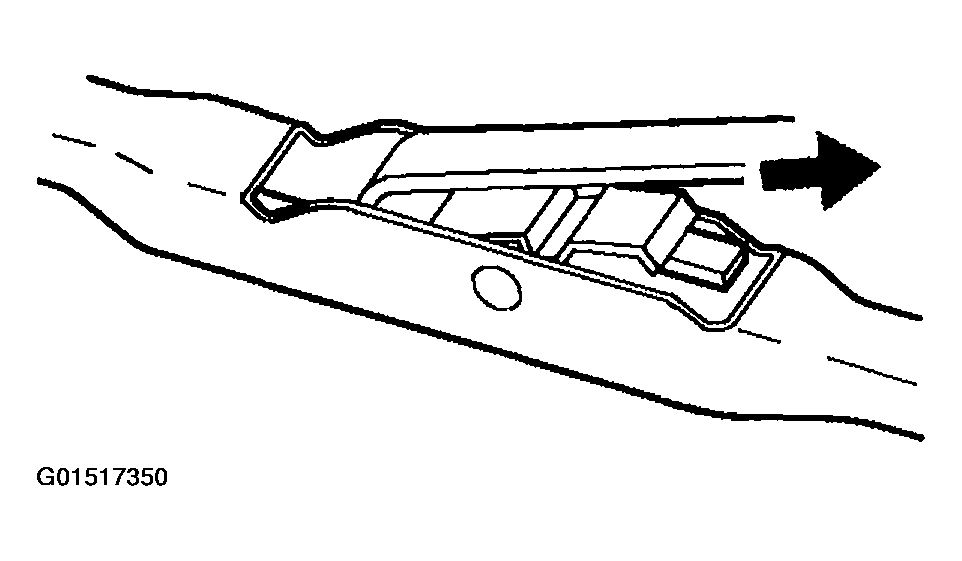

Fig 2: Pulling Wiper Blade Pivot Into Wiper Arm Hook
Courtesy of GENERAL MOTORS CORP.
