Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the step panel cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the step panel cover screws.

    Tighten

    Tighten the step panel cover screws to 2 N.m (18 lb in).

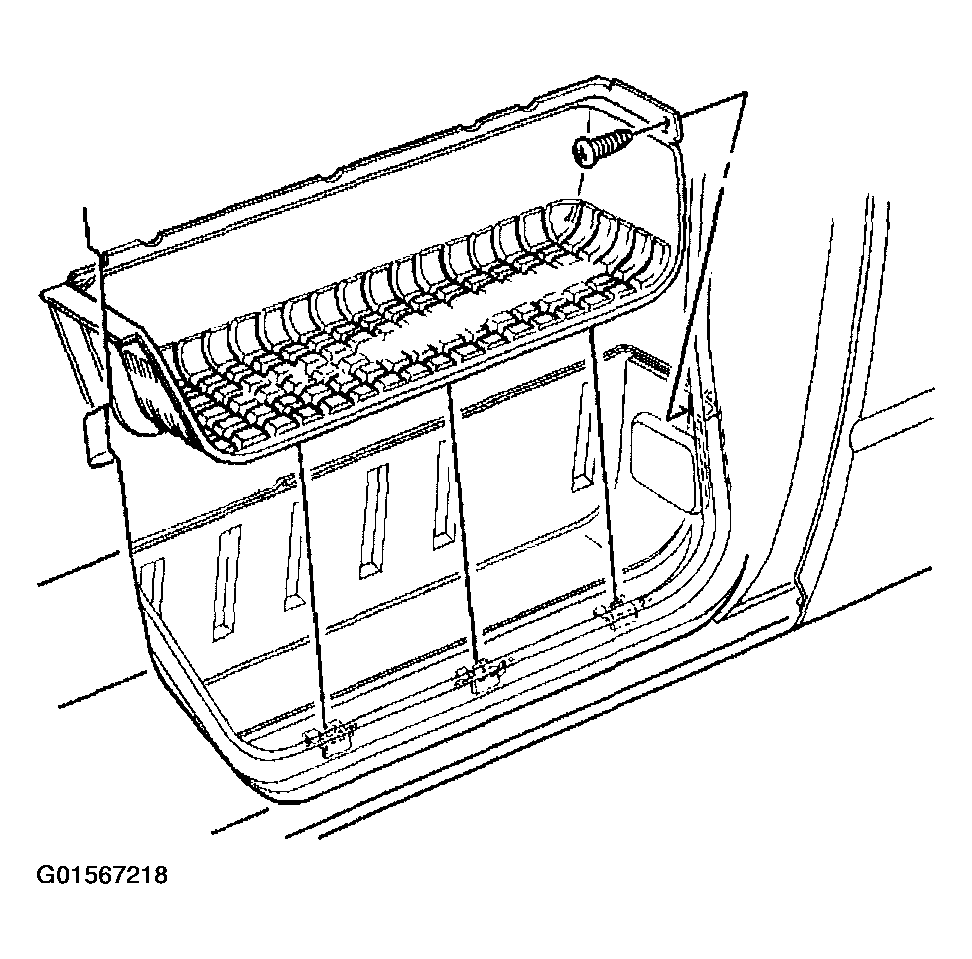

    Fig 1: Installing Step Panel Cover
    G01567218Courtesy of GENERAL MOTORS CORP.
