Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine cover.
    Fig 1: Installing Engine Cover
    G01567211Courtesy of GENERAL MOTORS CORP.
  2. Install the screws to the engine cover. Do not fully tighten the screws.

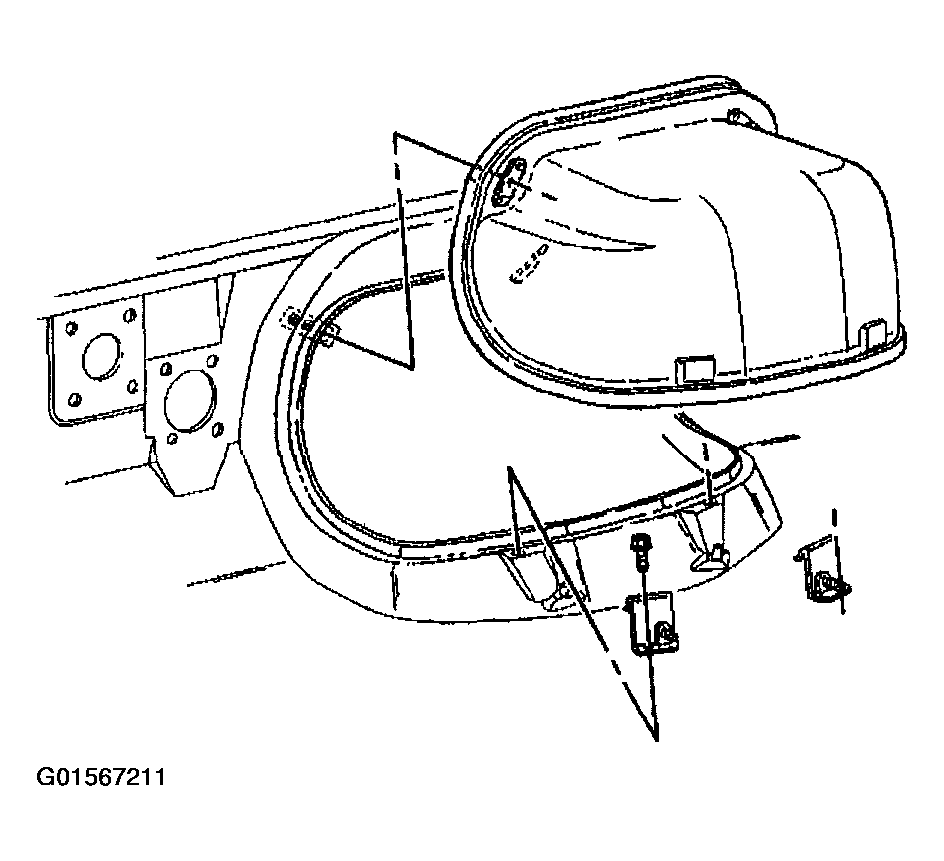

    Fig 2: Installing Engine Cover Screws
    G01567212Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the latch screws.

    Tighten

    Tighten the latch screws to 4 N.m (35 lb in).

  4. Install the engine cover bolts to the brackets.

    Tighten

    Tighten the engine cover bolt to 25 N.m (18 lb ft).

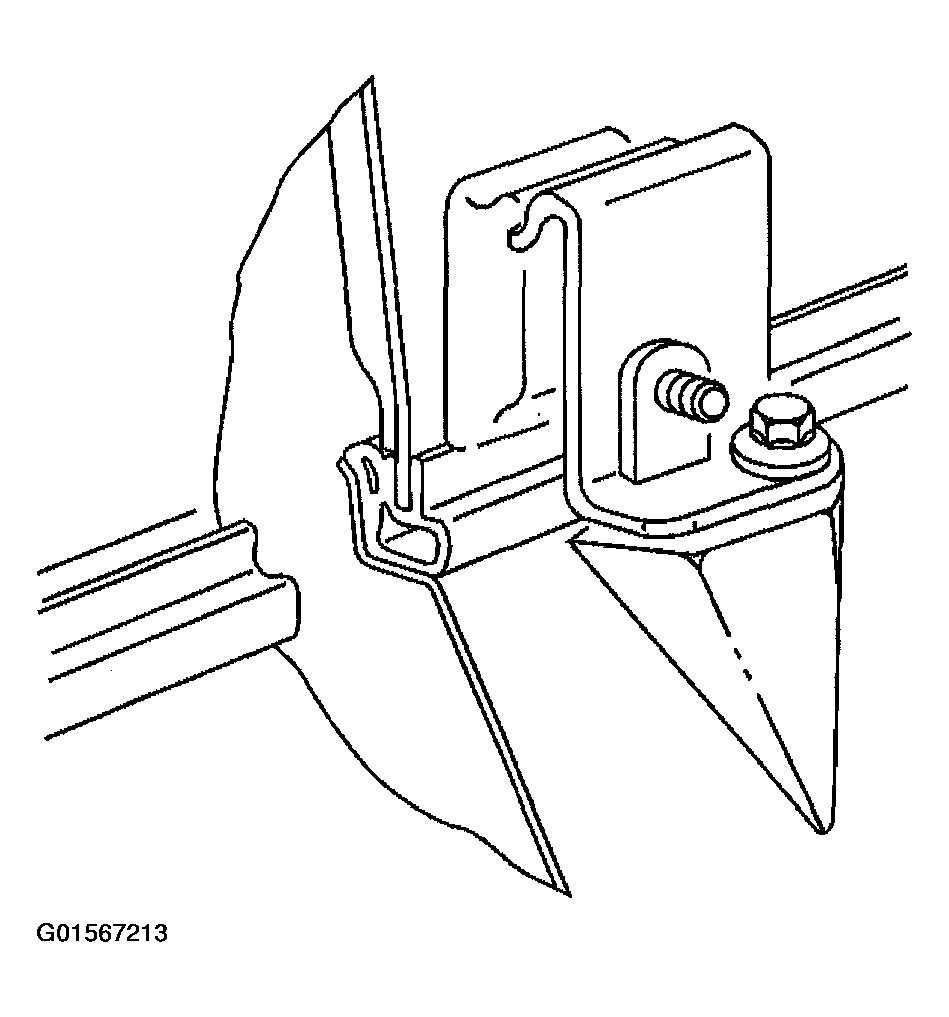

    Fig 3: View Of Engine Cover Latches
    G01567213Courtesy of GENERAL MOTORS CORP.
  5. Insert the floor air outlet duct. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages and Console.

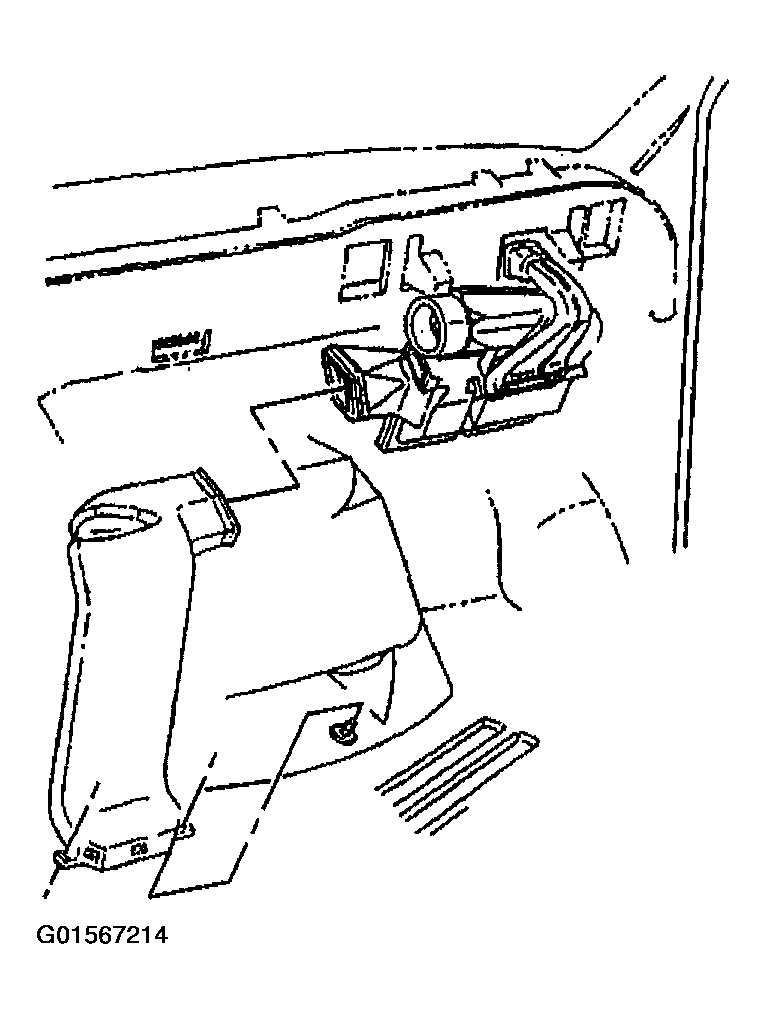

    Fig 4: Installing Floor Air Outlet Duct
    G01567214Courtesy of GENERAL MOTORS CORP.
  6. Insert the instrument panel extension. Refer to AIR OUTLET REPLACEMENT - CENTER FLOOR in Heating, Ventilation and Air Conditioning.
