Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.
  2. Disconnect the electrical connector from the amplifier.

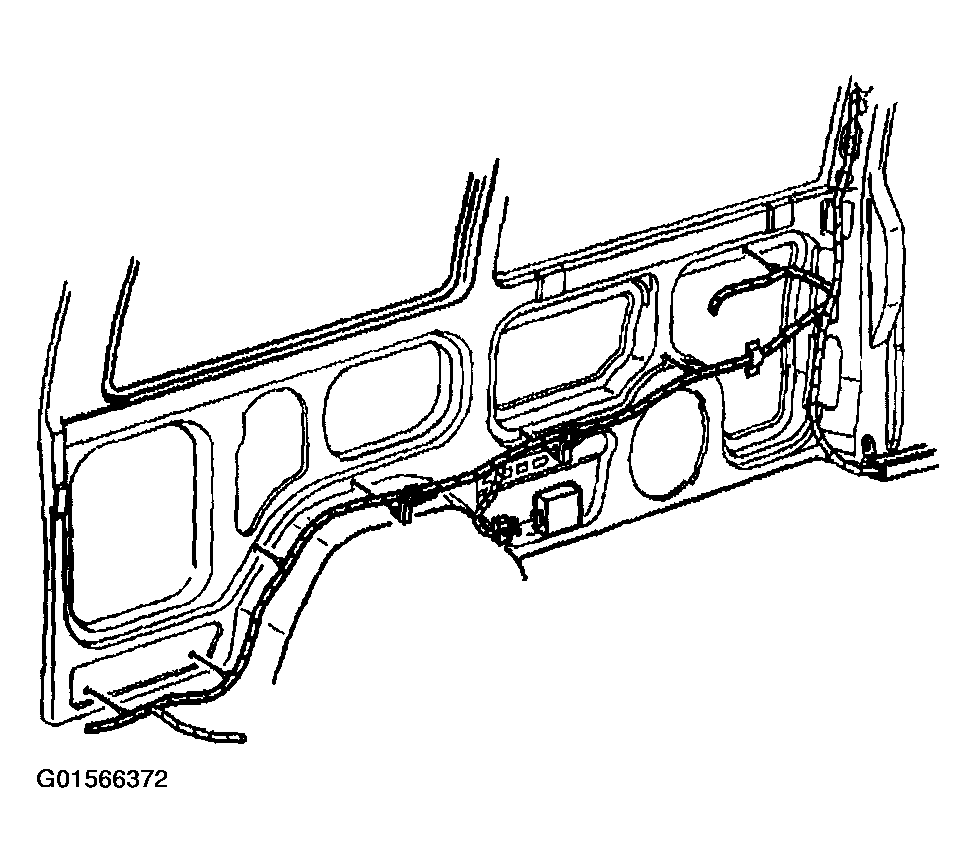

    Fig 1: View Of Amplifier & Wiring
    G01566372Courtesy of GENERAL MOTORS CORP.
  3. Remove the amplifier from the vehicle by sliding the amplifier toward the rear of the vehicle.

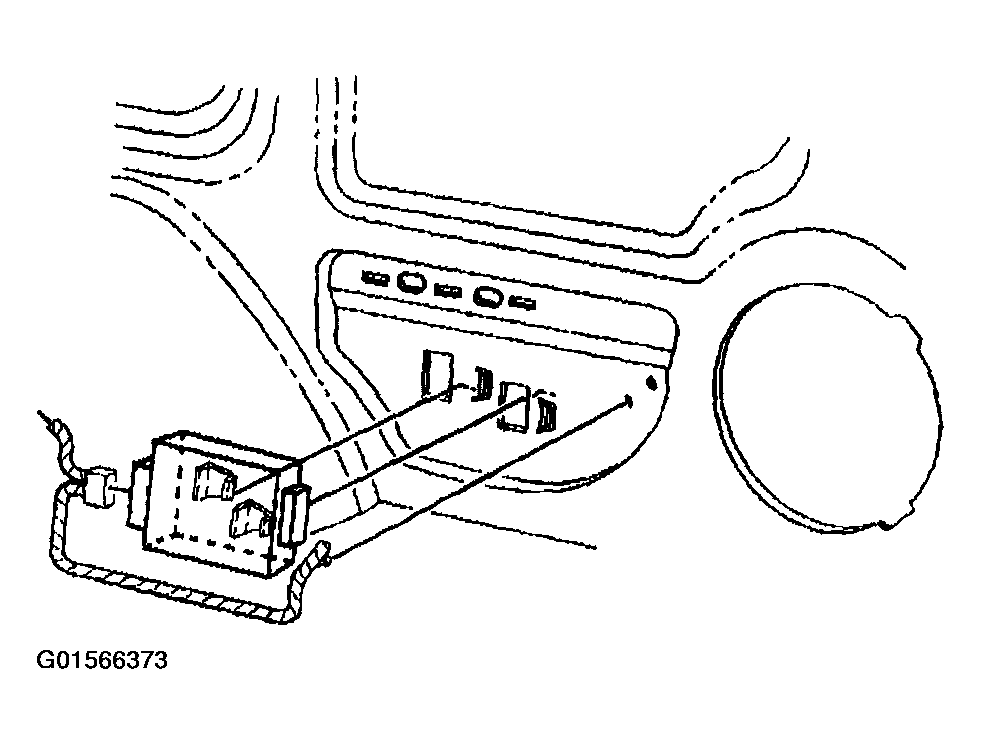

    Fig 2: Removing Amplifier
    G01566373Courtesy of GENERAL MOTORS CORP.
