Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the controller module assembly onto the liftgate.
  2. Install two new rivets with a hand-held rivet gun.
  3. Connect the two electrical connectors to the controller assembly.
  4. Install the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE .

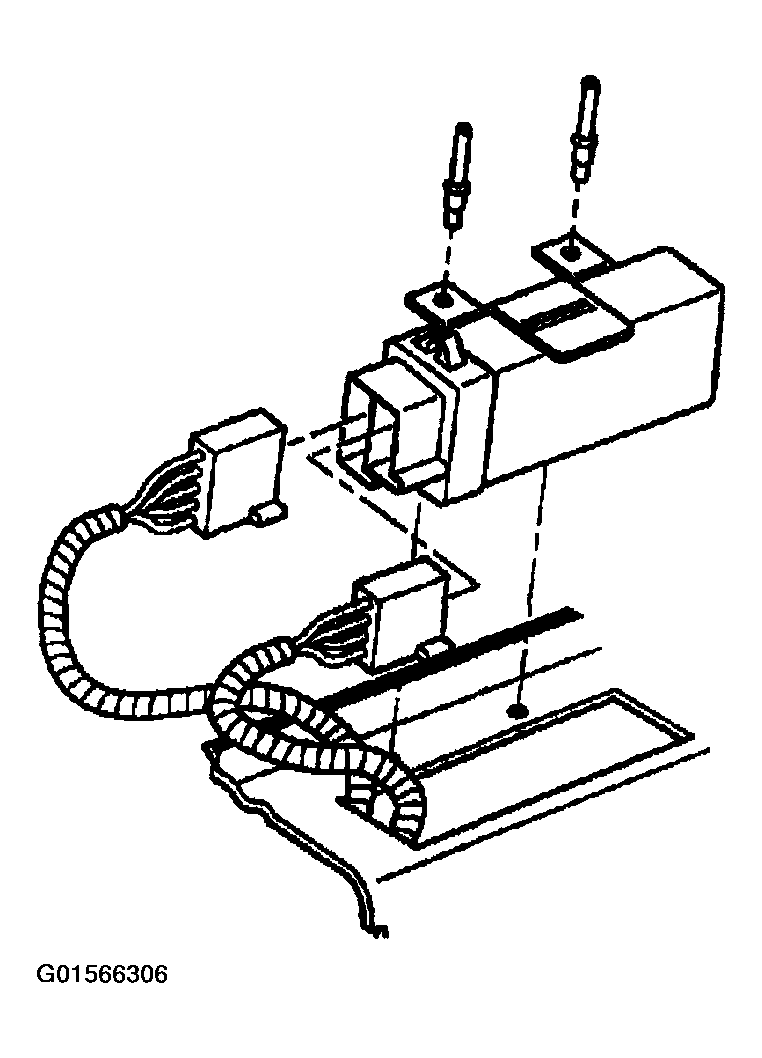

    Fig 1: Installing Wiper Motor Module (Rear)
    G01566306Courtesy of GENERAL MOTORS CORP.
