Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper motor electrical connector.
  2. Remove the cover screws.
  3. Remove the cover.
  4. Remove the circuit board and terminal module by lifting up on the terminal.

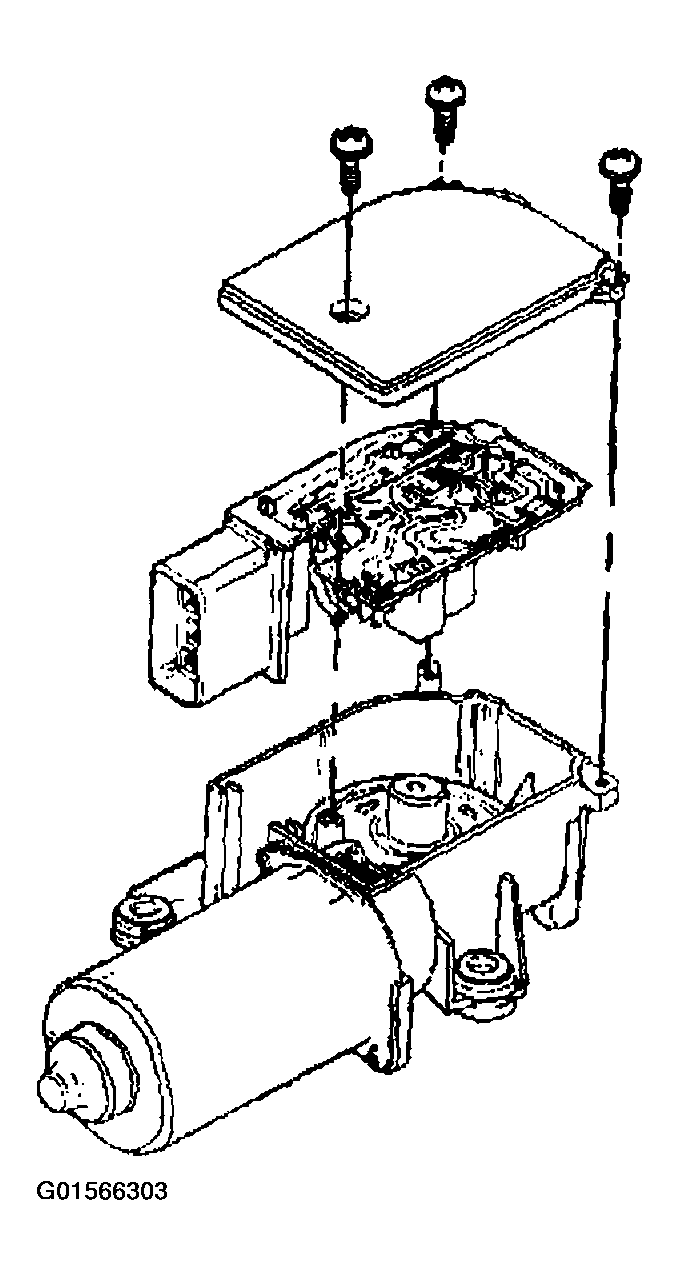

    Fig 1: Removing Circuit Board And Terminal Module (Front)
    G01566303Courtesy of GENERAL MOTORS CORP.
