Engine Control Module: Locations

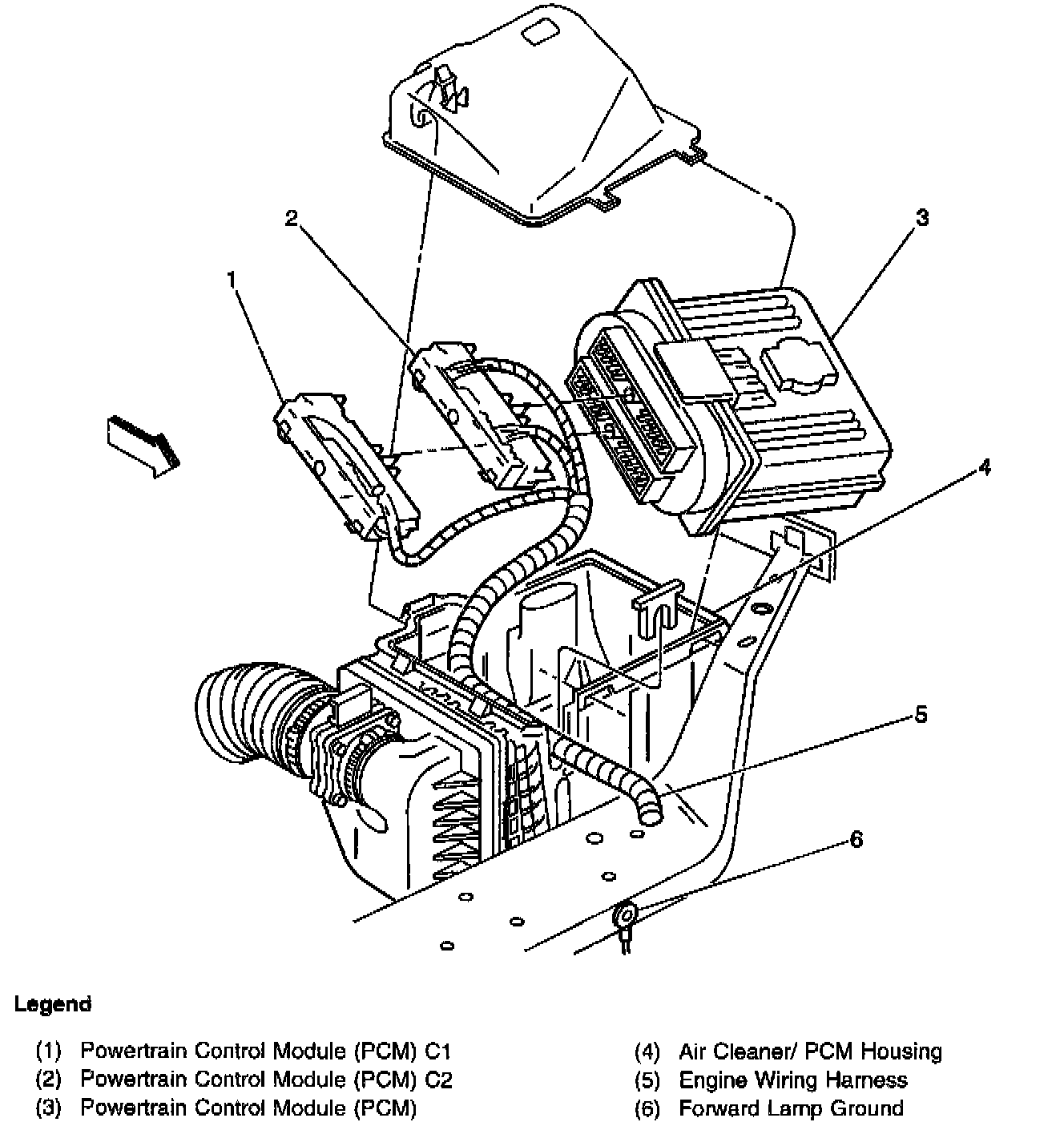

Air Cleaner, PCM Assembly:




LF Of Engine Compartment:




Engine compartment, secured in the air cleaner assembly
