Home
>>
Chevrolet
>>
1999
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Control Module
>>
Locations
>>
Connector Locations
>>
DR Actuator CTRL Module CONN C3
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DR Actuator CTRL Module CONN C3

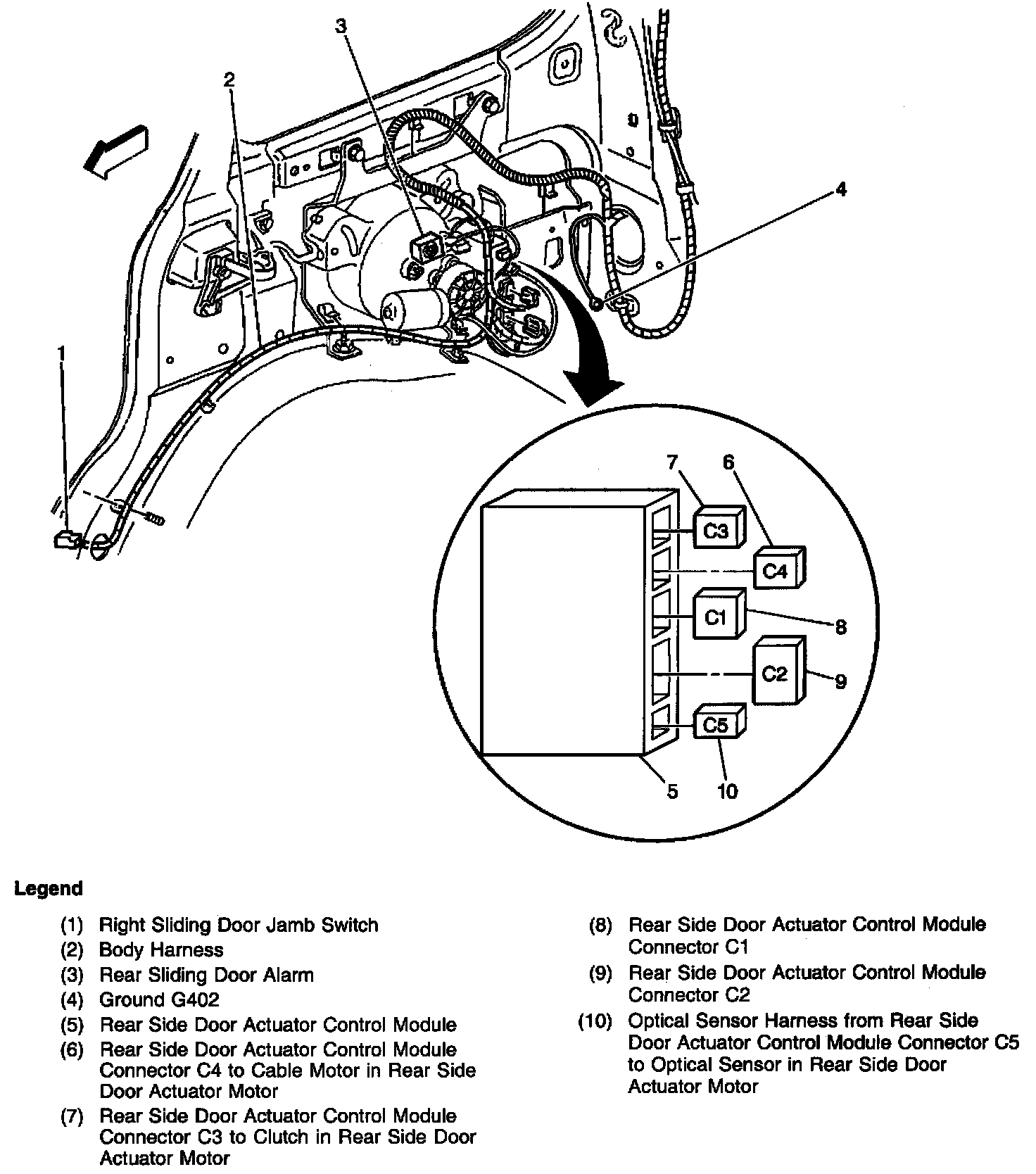

Right Quarter Panel (Rear Side Door Actuator Motor):
