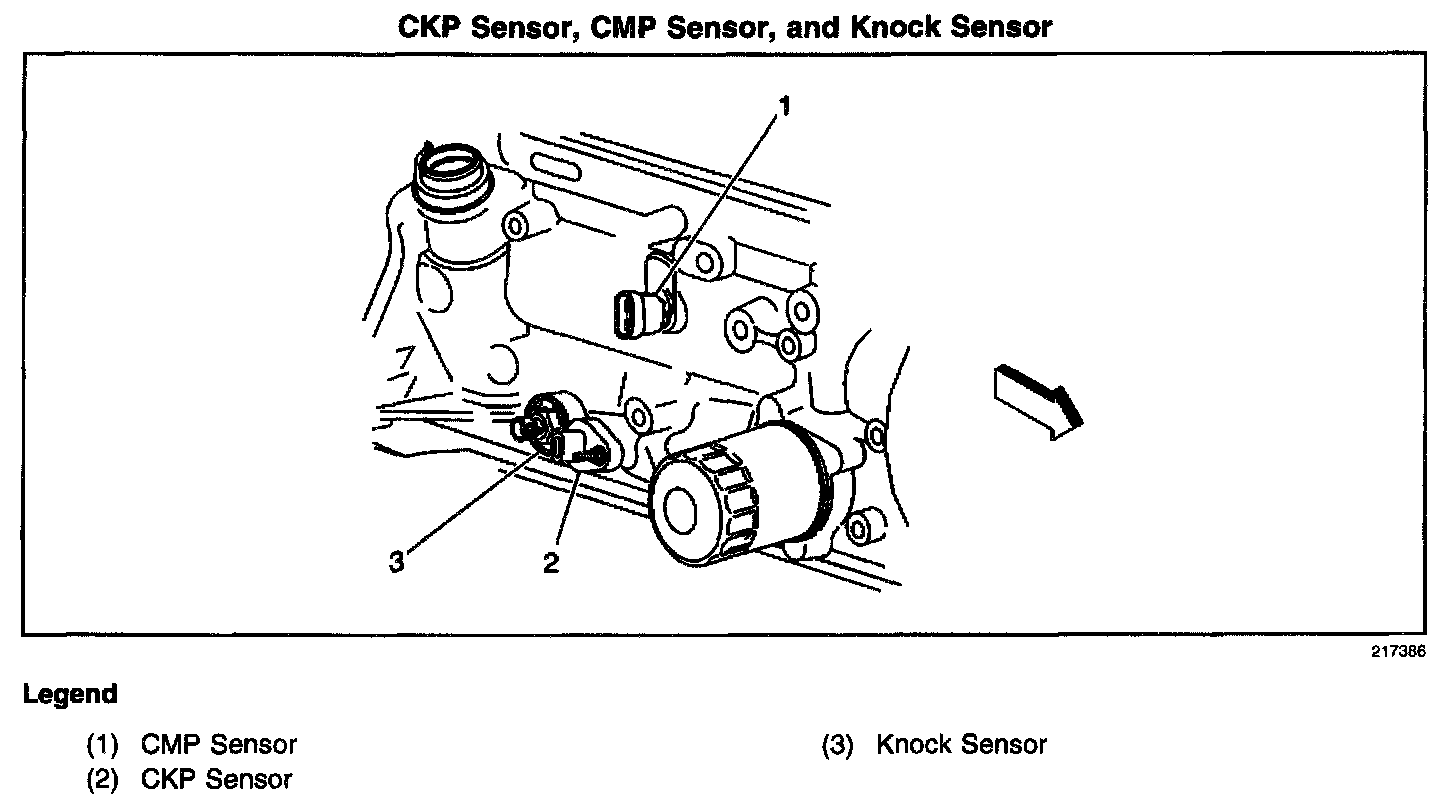

Knock Sensor: Locations
Locations View:

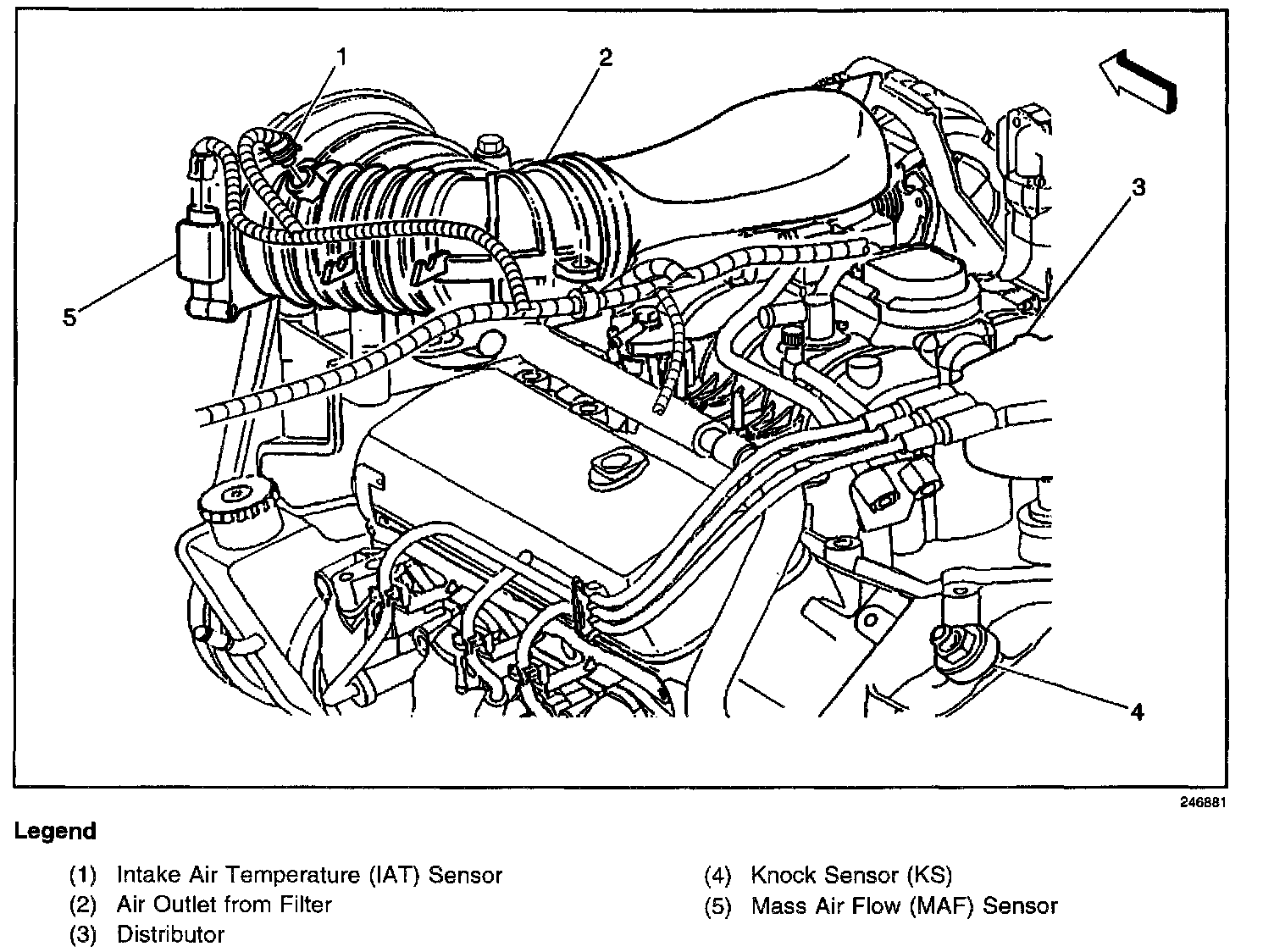

Mass Air Flow (MAF) Sensor And Intake Air Temperature (IAT) Sensor:
Locations View:
Locations View:
Lower RH of the engine, below the coil packs
