Cruise Control Module and PCM/VCM
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cruise Control Module and PCM/VCM

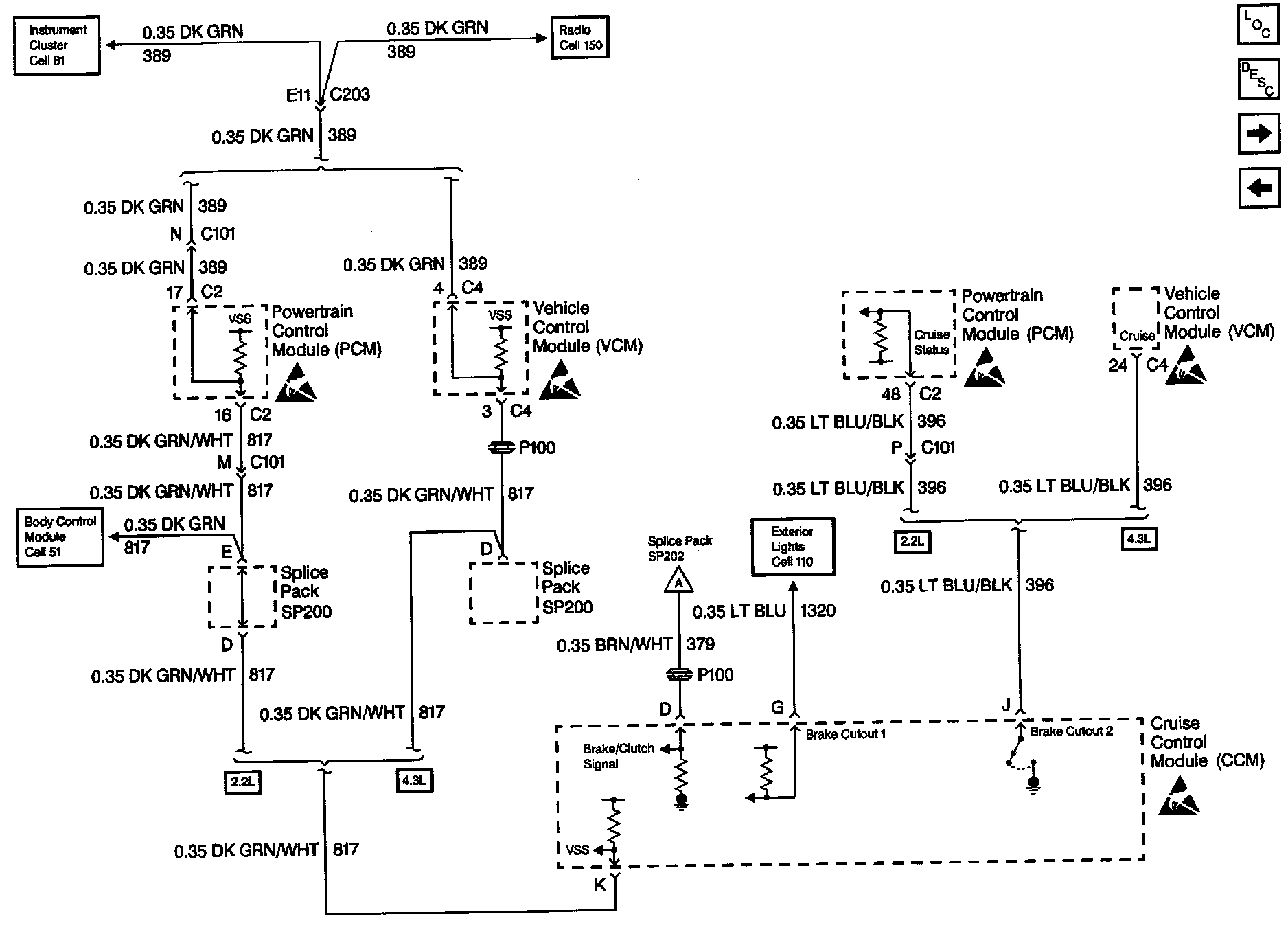

Cruise Control Schematics: Cruise Control Module And PCM/VCM:
