Home
>>
Chevrolet
>>
1999
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Body and Frame
>>
Relays and Modules - Body and Frame
>>
Power Seat Control Module
>>
Diagrams
>>
Seat Memory Module Connector, C2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

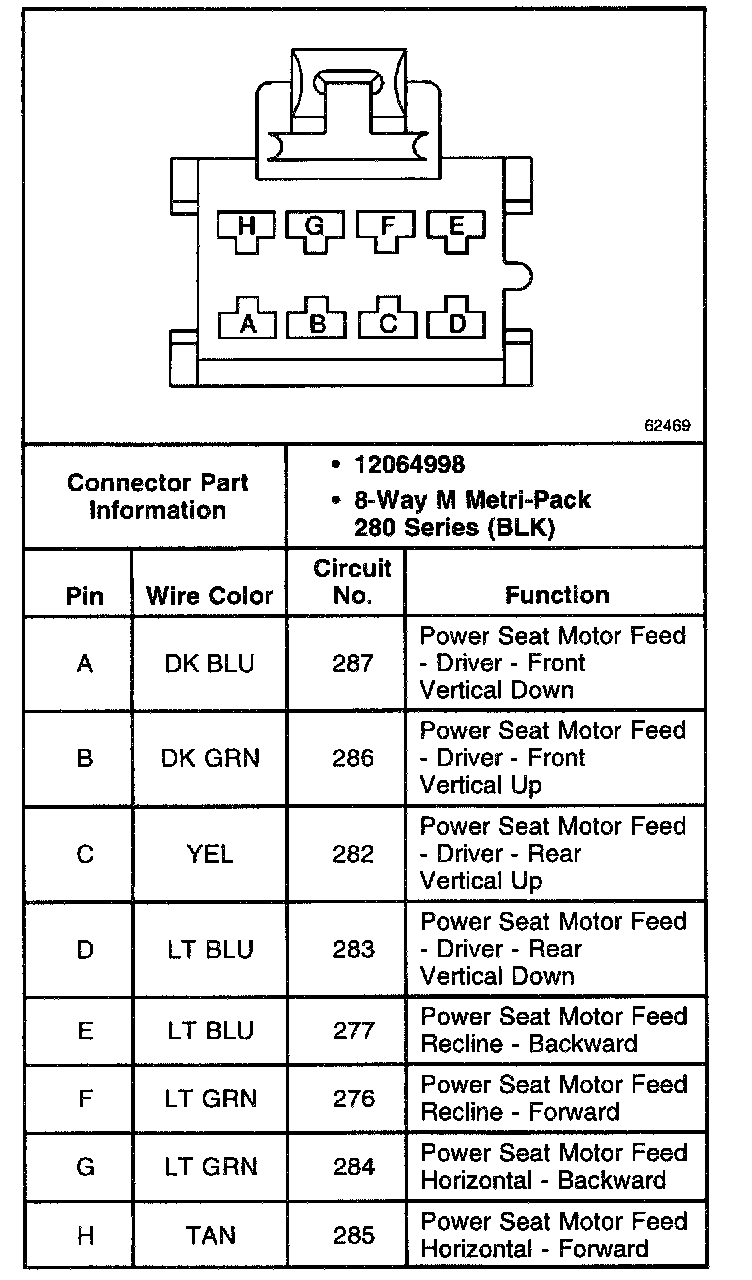

Seat Memory Module Connector, C2
Seat Memory Module Connector, C2:
