Vehicle Speed Sensor: Locations

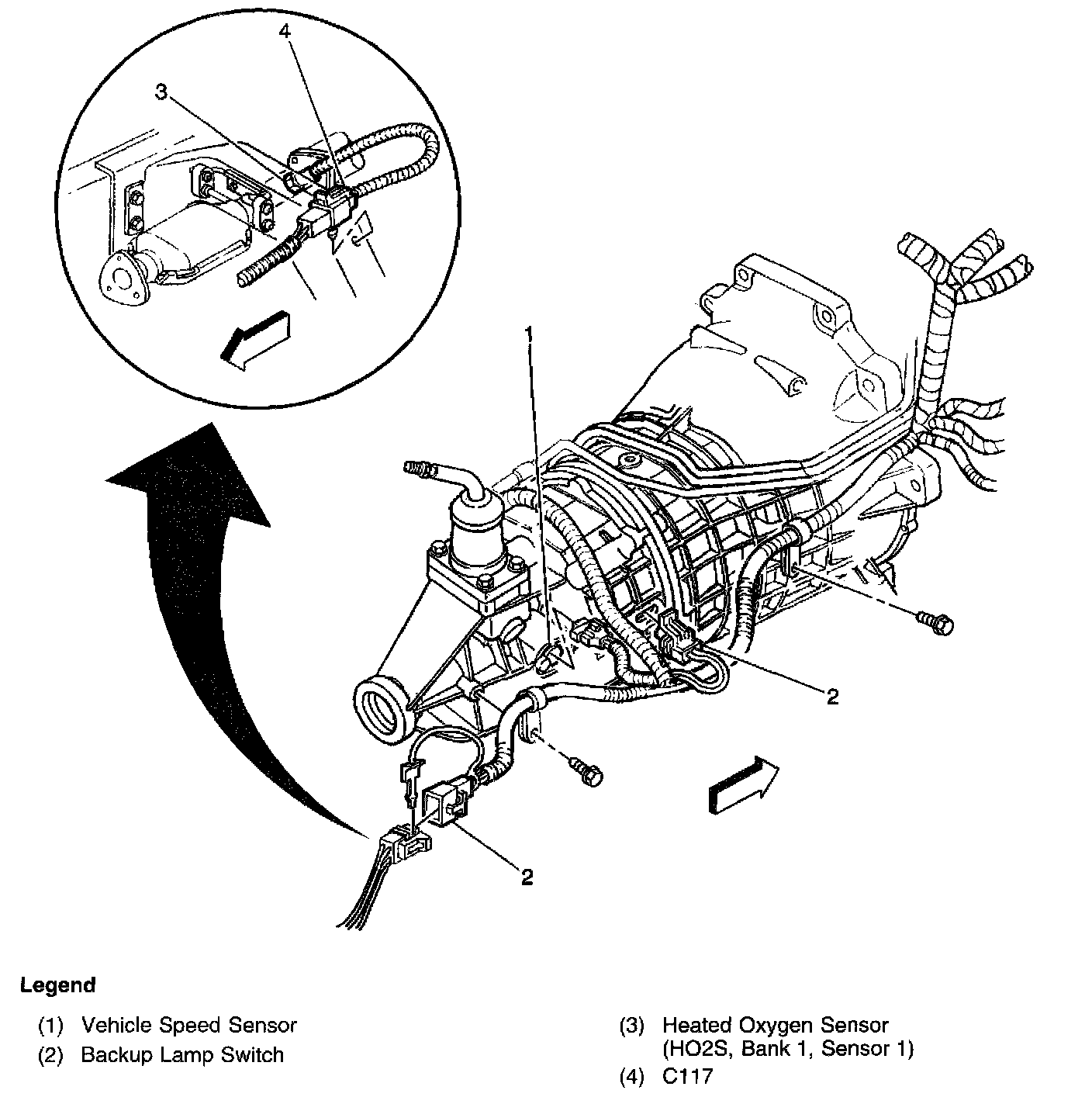

Manual Transmission:





Transfer Case:

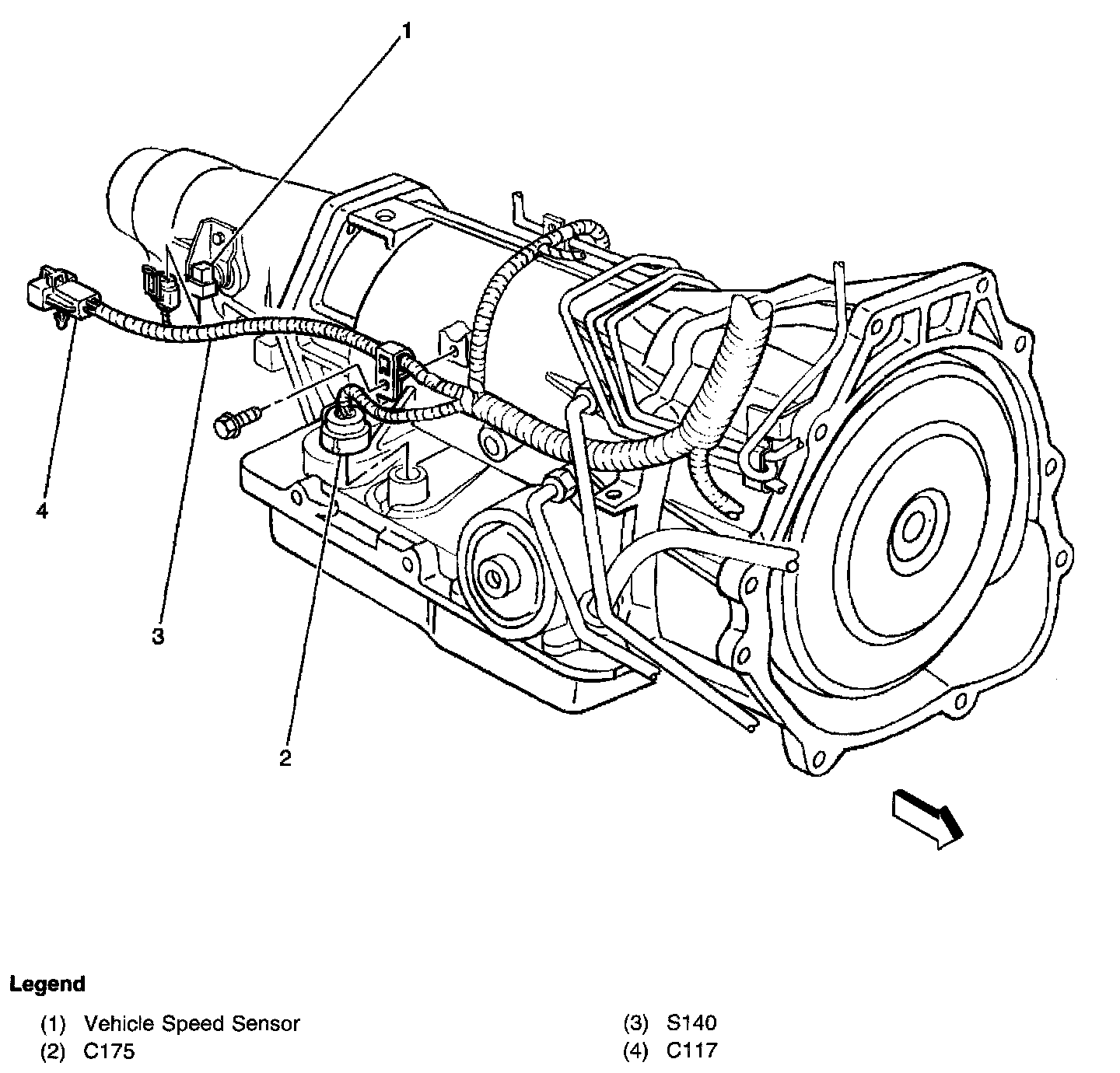

Automatic Transmission:





(W/ A/T) LH rear of the M/T

RH rear of the A/T
