Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| A/C Compressor Mounting Bolts |
| Front Bracket Bolts |
47-50 (64-68) |
| Right Side Bracket Bolts |
25-29 (34-39) |
| Compressor-To-Bracket Bolts |
16-20 (22-27) |
| Axle Shaft Center Support Bolts |
44 (60) |
| Axle Shaft Nut |
129 (175) |
| Ball Joint-To-Steering Knuckle Nut |
44 (60) |
| Camshaft Housing Bolt |
8 (11) |
| Camshaft Timing Sprocket Bolt |
43 (60) |
| Connecting Rod Nut |
26 (35) |
| Crankshaft Timing Pulley Bolt |
| 1998 (8-Valve) |
8 (11) |
| 1999 (16-Valve) |
12 (16) |
| Crankshaft Timing Sprocket Bolt |
96 (130) |

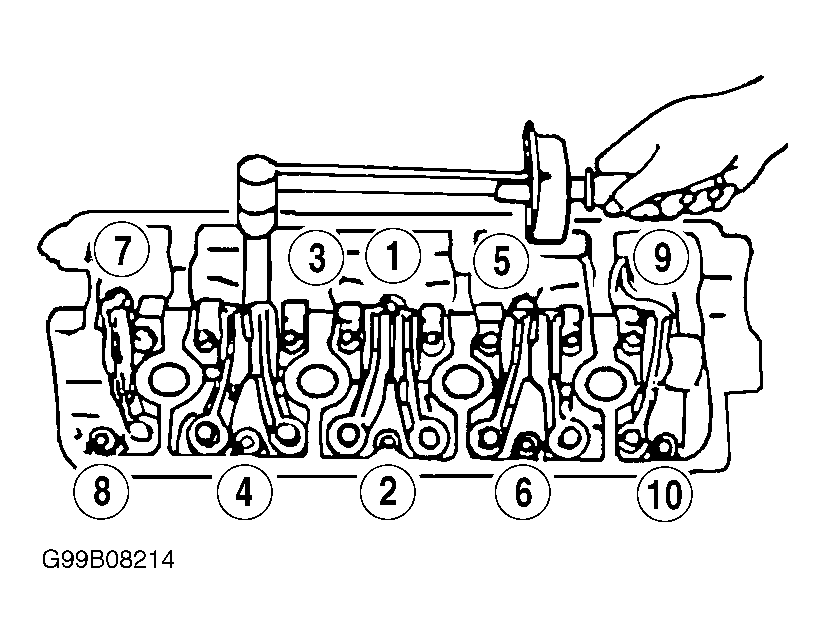

| Cylinder Head Bolt |
54 (73) |
| Engine Mounting Bolts |
41 (56) |
| Engine Oil Drain Plug |
26 (35) |
| Exhaust Manifold-To-Front Exhaust Pipe Bolts |
| 1998 (8-Valve) |
37 (50) |
| 1999 (16-Valve) |
33 (45) |
| Exhaust Manifold-To-Head Bolt/Nut |
17 (23) |
| Flywheel Bolt |
| A/T |
| 1998 (8-Valve) |
45 (61) |
| 1999 (16-Valve) |
69 (95) |
| M/T |
56 (77) |
| Front Exhaust Pipe-To-TWC Catalytic Converter |
| 1998 (8-Valve) |
26 (35) |
| 1999 (16-Valve) |
29 (40) |
| Generator Mounting Bolts/Nuts |
17 (23) |
| Intake Manifold Bolt/Nut |
17 (23) |
| Main Bearing Cap Bolt |
40 (54) |
| Rocker Arm Shaft Screws |
| 1998 (8-Valve) |
18 (24) |
| 1999 (16-Valve) |
8 (11) |
| Spark Plug |
21 (28) |
| Timing Belt Cover Bolt |
8 (11) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Torque Rod Bolts/Nut |
41 (56) |
| Transaxle Drain Plug |
| A/T |
17 (23) |
| M/T |
15 (21) |
| Water Pump Pulley Bolts |
18 (24) |
| Wheel Lug Nut |
44 (60) |
| INCH Lbs. (N.m) |
| Air Cleaner-To-Cylinder Head Bolt |
89 (10) |
| Oil Pan Bolt/Nuts |
97 (11) |
| Oil Pump Cover Bolt |
97 (11) |
| Oil Pump Mounting Bolt |
97 (11) |
| Oil Pump Pick-Up Tube Bolt |
97 (11) |
| Timing Belt Tensioner Stud |
97 (11) |
| Valve Cover Bolt |
44 (5) |
| Water Pump Bolt |
115 (13) |
