EVAP Canister: Installation
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

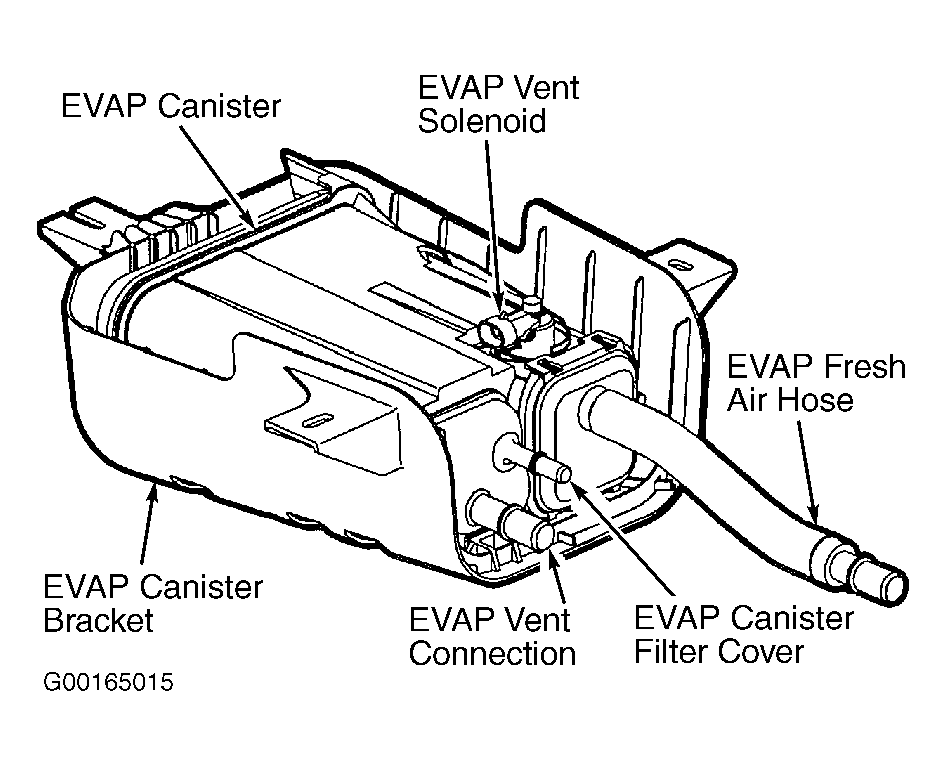

Install EVAP canister onto EVAP canister bracket. Install EVAP vent solenoid to EVAP canister, if necessary. Install EVAP vent solenoid electrical connector. Install 3 EVAP canister-to-body underbody fasteners. Tighten the EVAP canister-to-body nuts to specification. See TORQUE SPECIFICATIONS . Reconnect EVAP canister hoses. Lower vehicle from hoist.
