Home >> Chevrolet >> 1998 >> Express 1/2 Ton Van V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C3 Clear-32 Pin

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

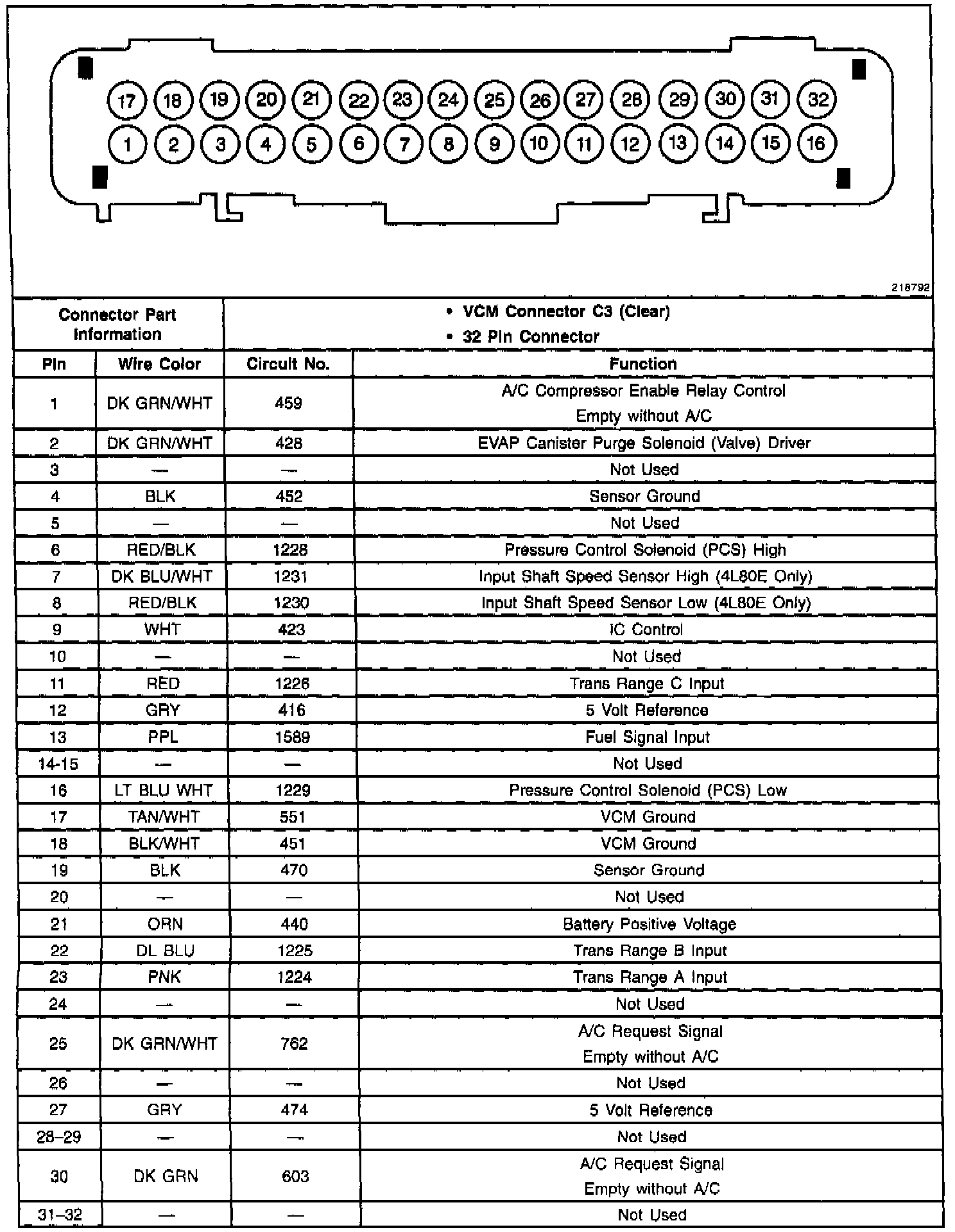

C3 Clear-32 Pin

Description:
