Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Specifications
>>
IP Fuse Block
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
IP Fuse Block
I/P Fuse Block:

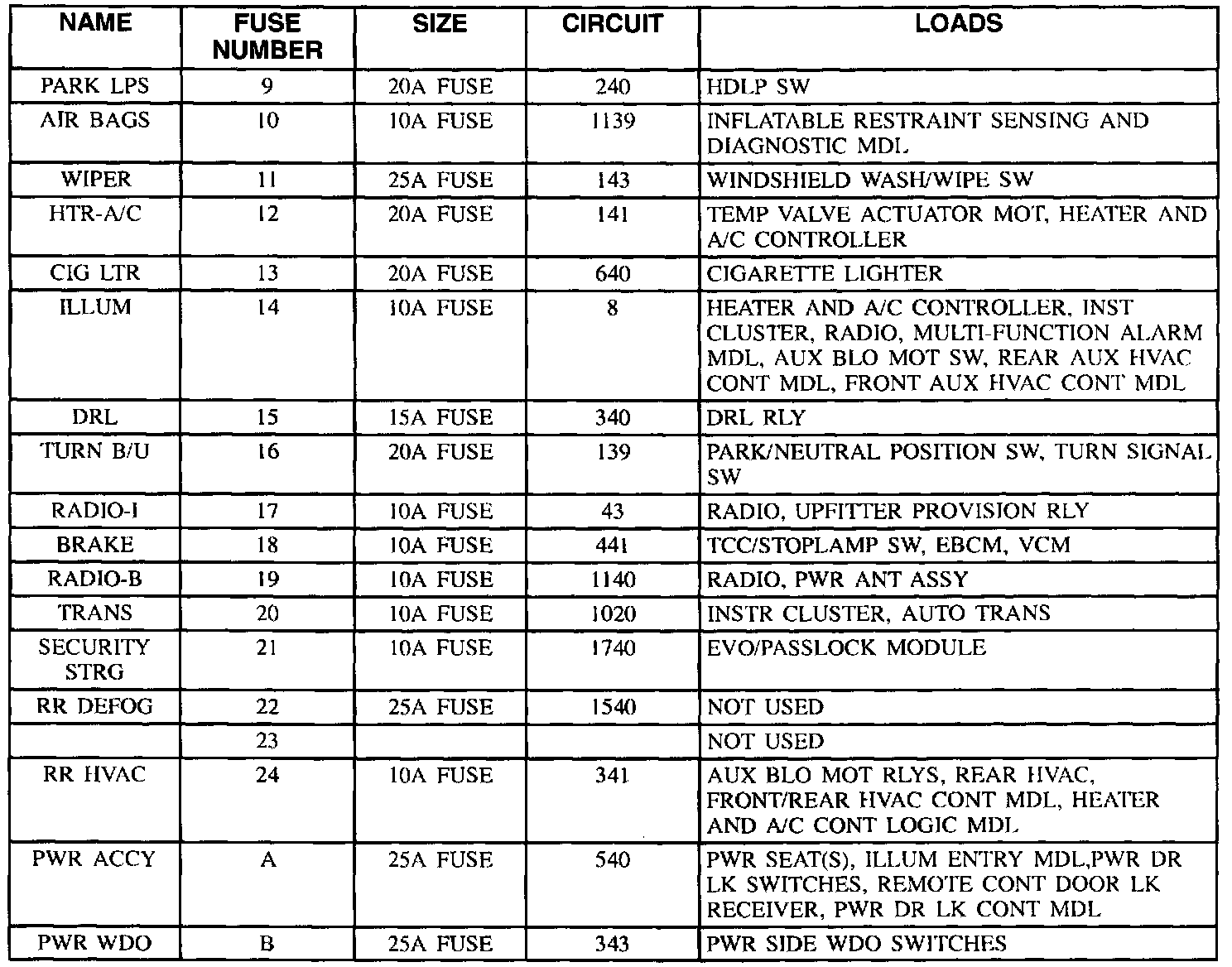

I/P Fuse Block (Part 1 Of 2):

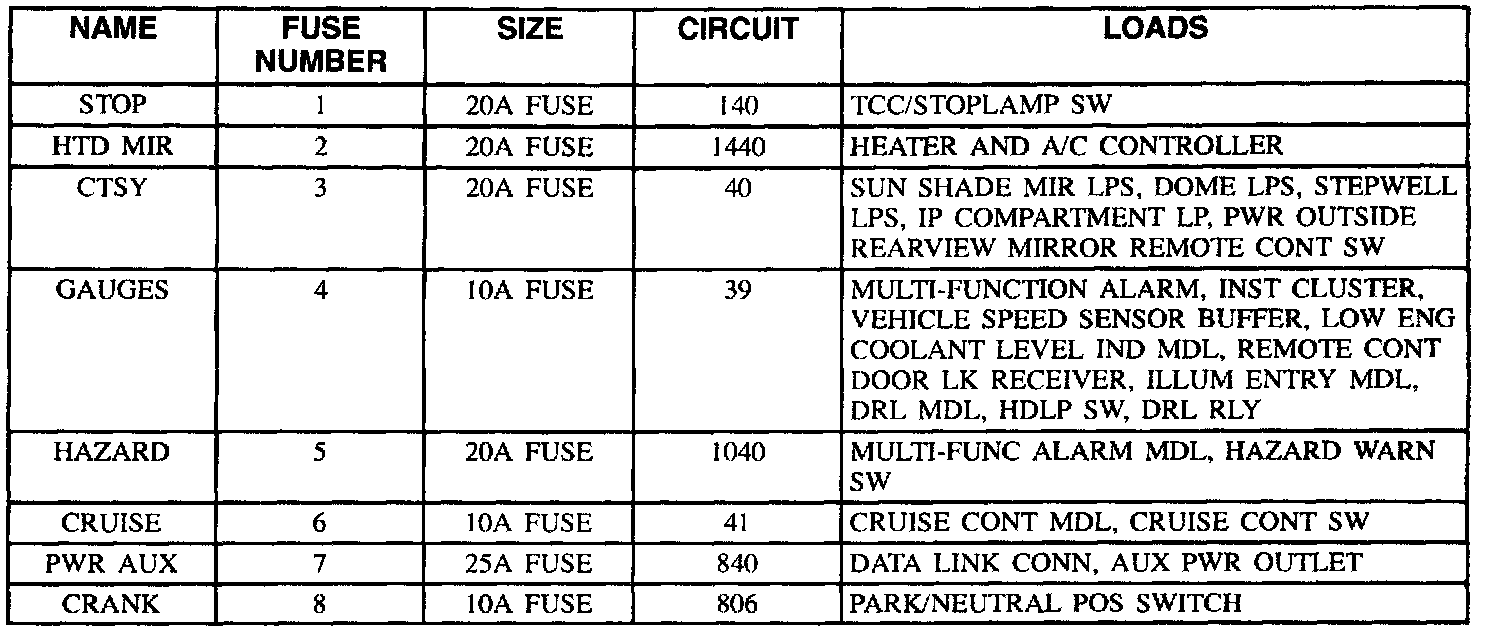

I/P Fuse Block (Part 2 Of 2):
