Suspension

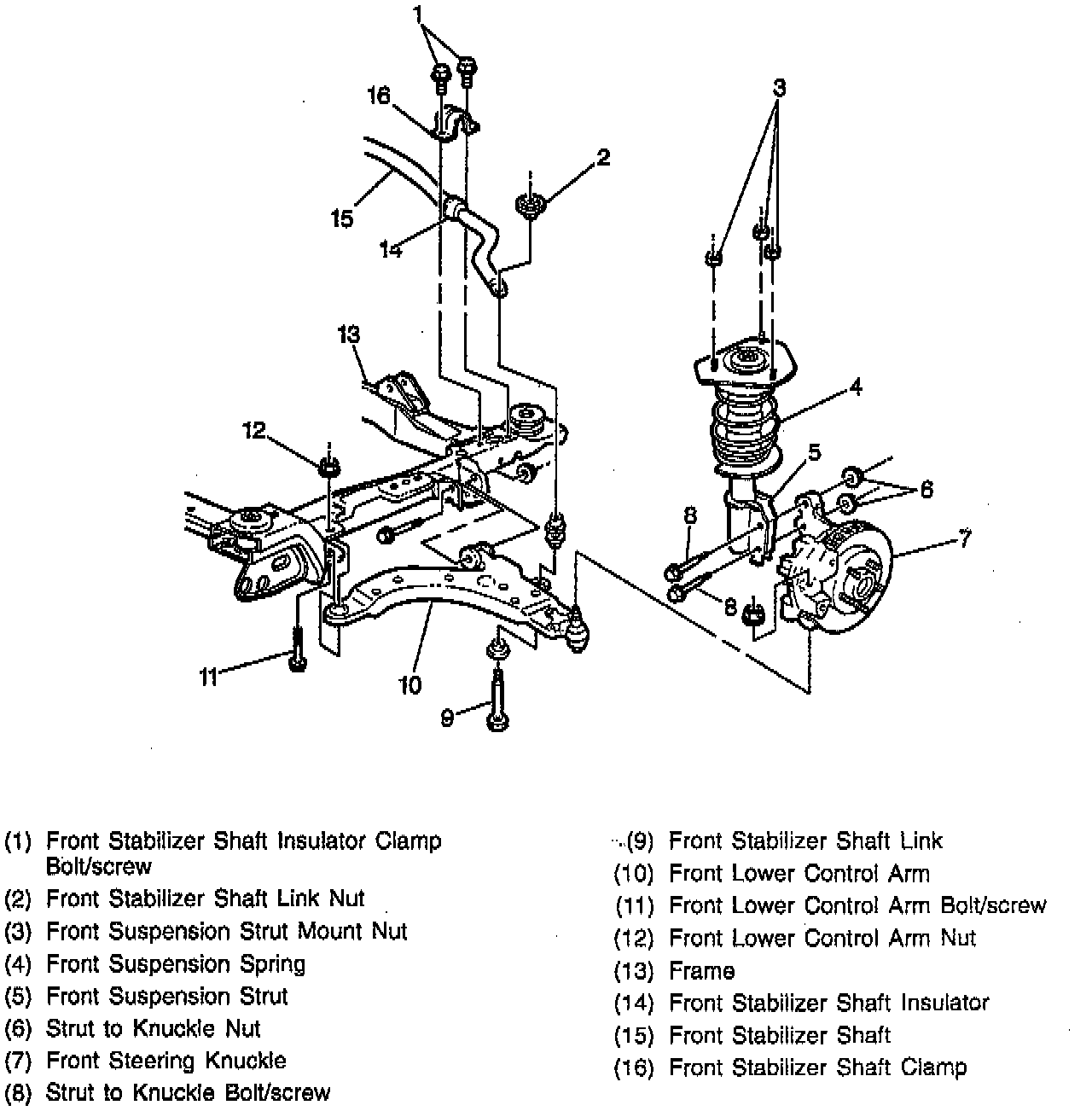

Front Suspension Assembly - Part 1 Of 2:

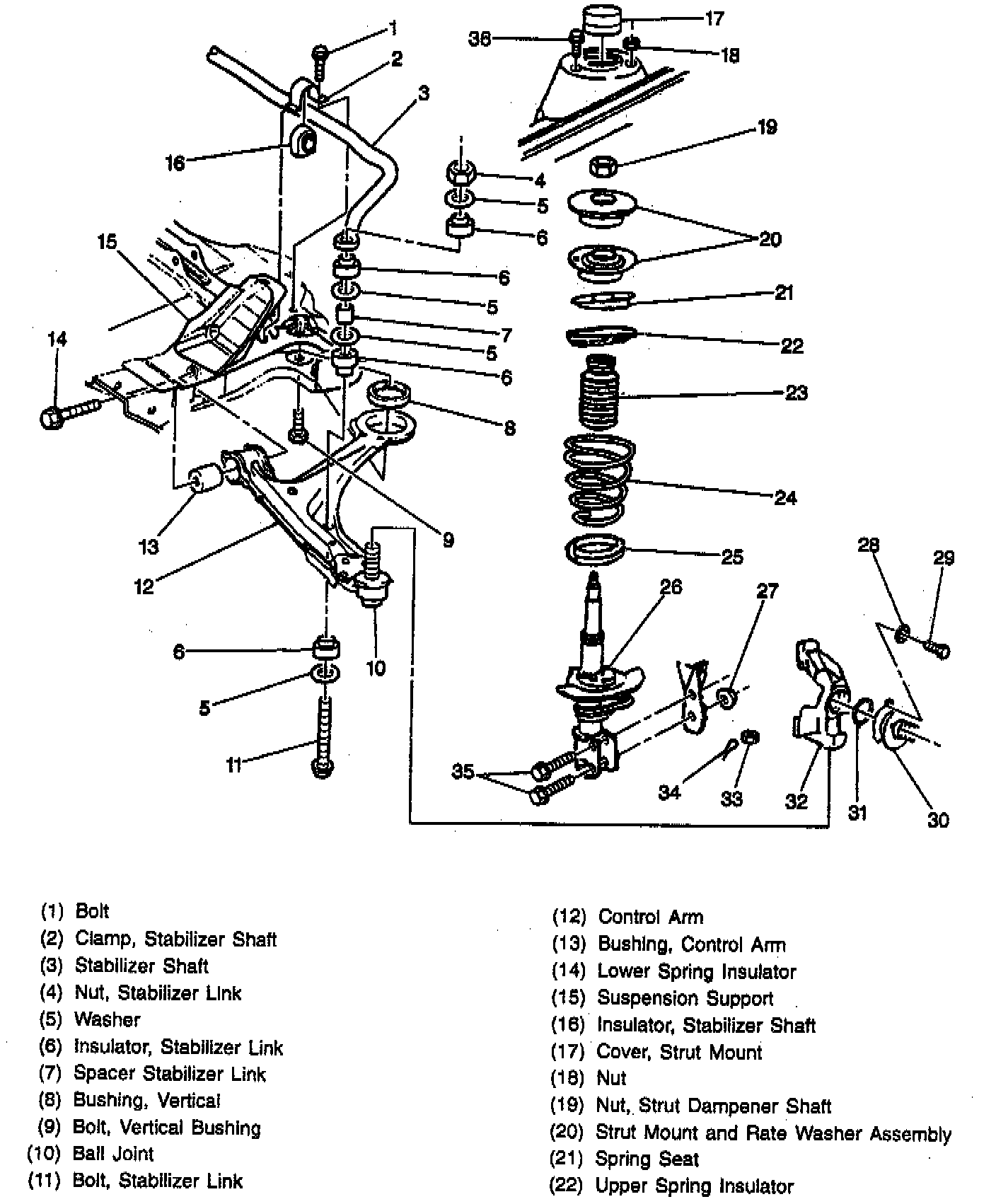

Front Suspension Assembly - Part 2 Of 2:





Front Suspension Assembly - Part 1 Of 2:

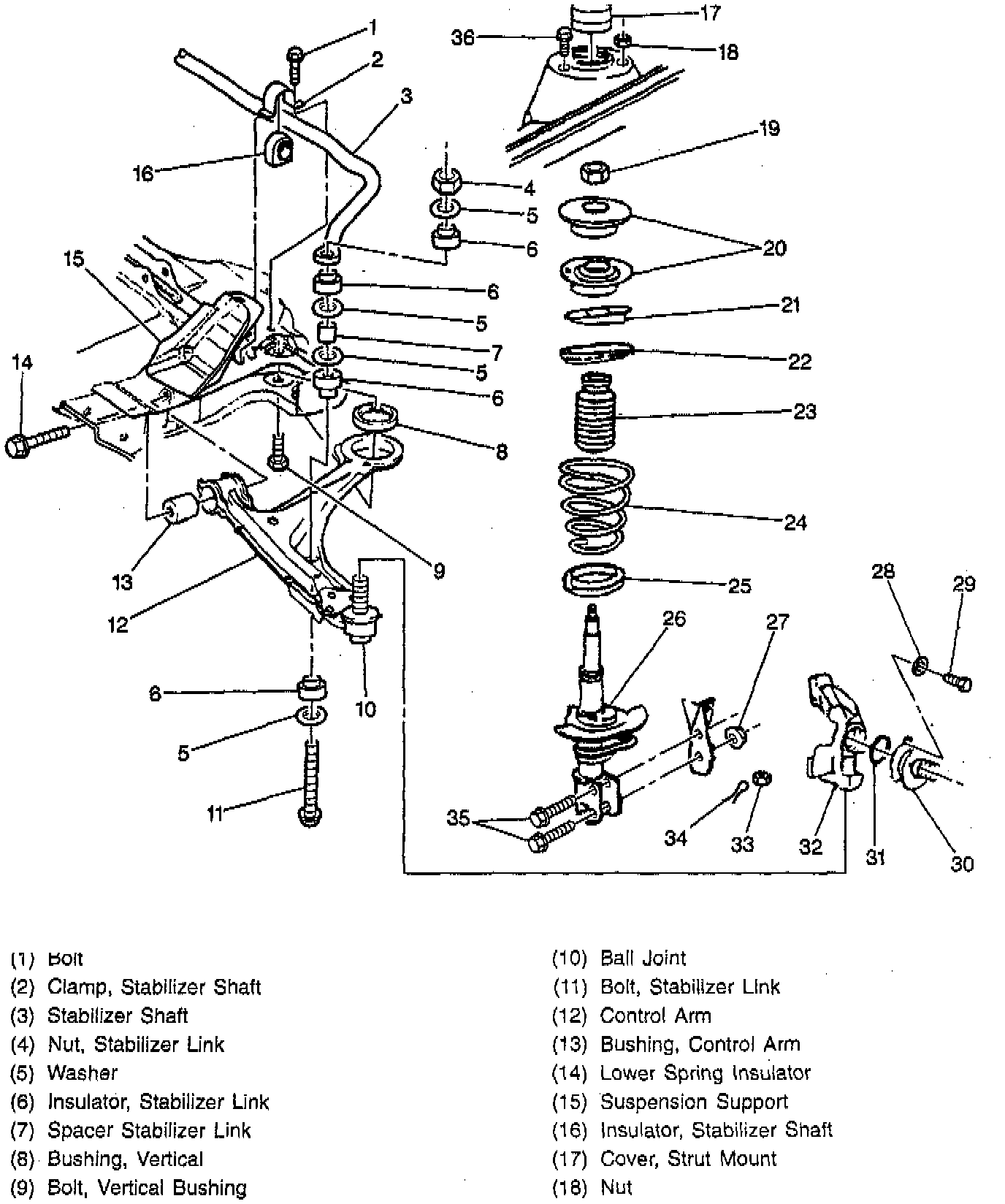

Front Suspension Assembly - Part 2 Of 2:
