Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> Engine Compartment Fuse/Relay Center
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

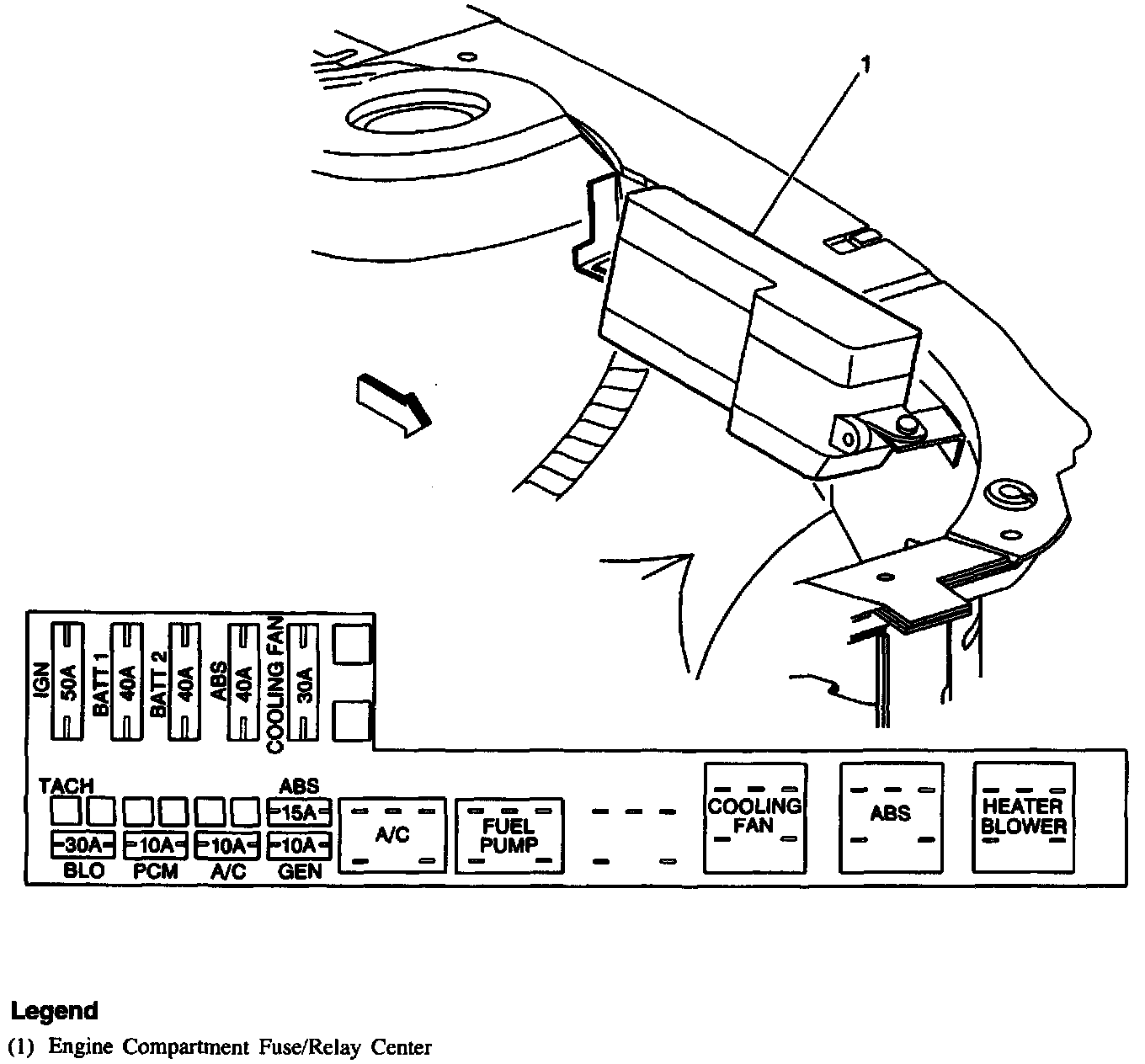

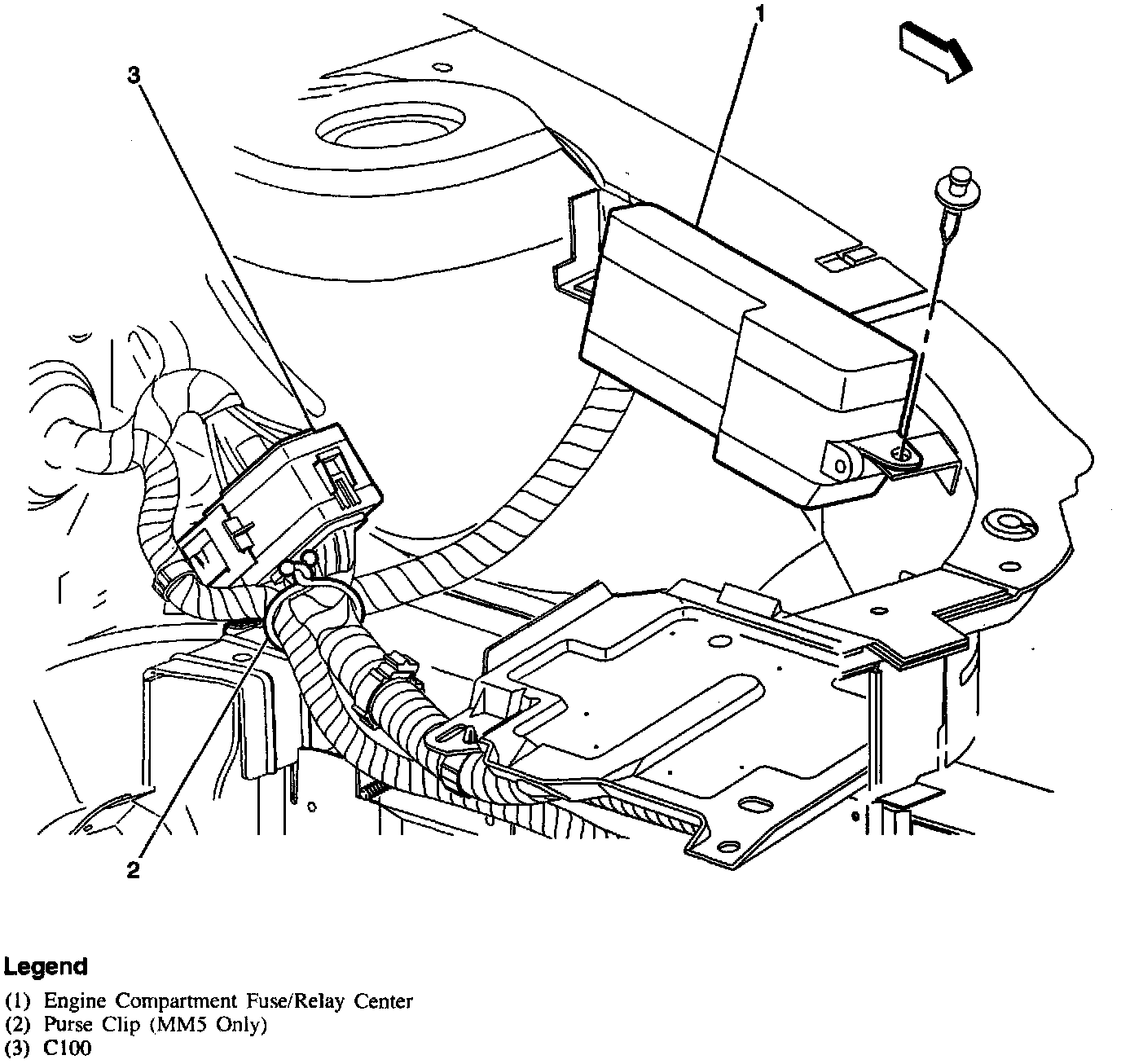

Engine Compartment Fuse/Relay Center

Component Location Views:



Component Location Views:



Component Location Views:
