Stop Lamp Switch C2 (Brake Transmission Shift Interlock/Torque Converter Clutch)

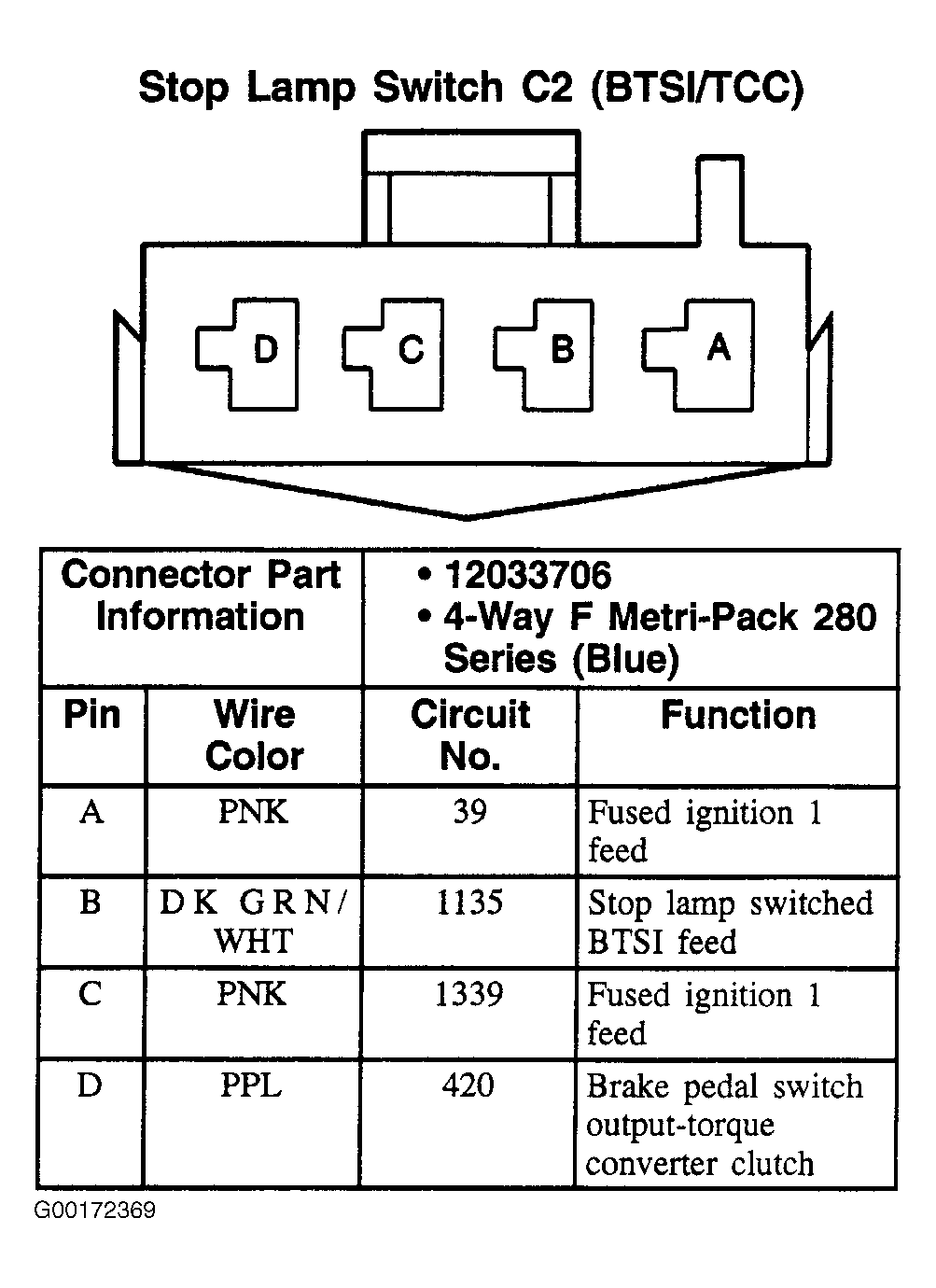

Fig 1: Stop Lamp Switch C2 (Brake Transmission Shift Interlock/Torque Converter Clutch) - 4-Pin Connector (Blue)
G00172369Courtesy of GENERAL MOTORS CORP.
