Heater & A/C Control (Front Manual A/C Controls) C3

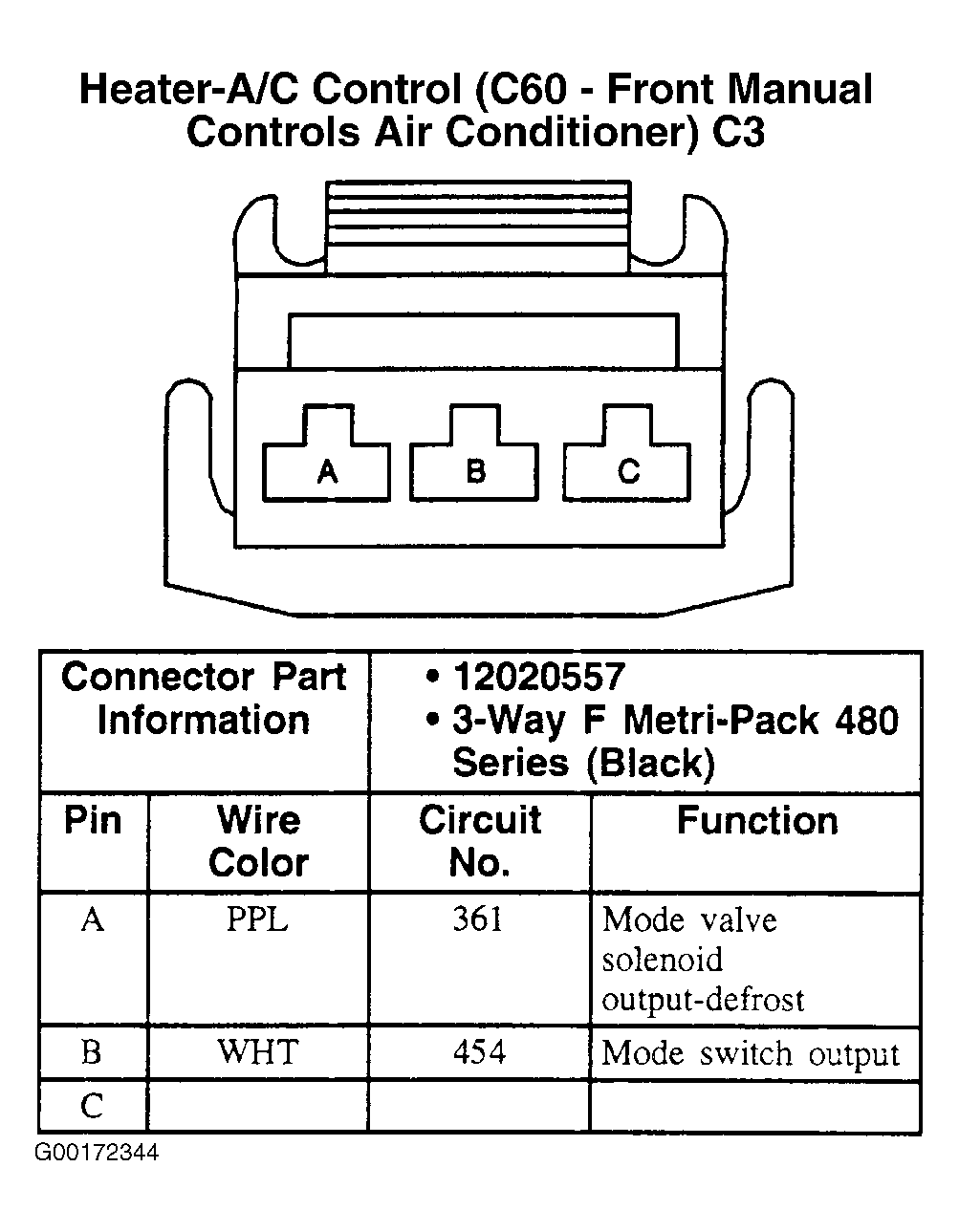

Fig 1: Heater & A/C Control (Front Manual A/C Controls) C3 - 3-Pin Connector (Black)
G00172344Courtesy of GENERAL MOTORS CORP.
