Connectors C101 To C407: C305

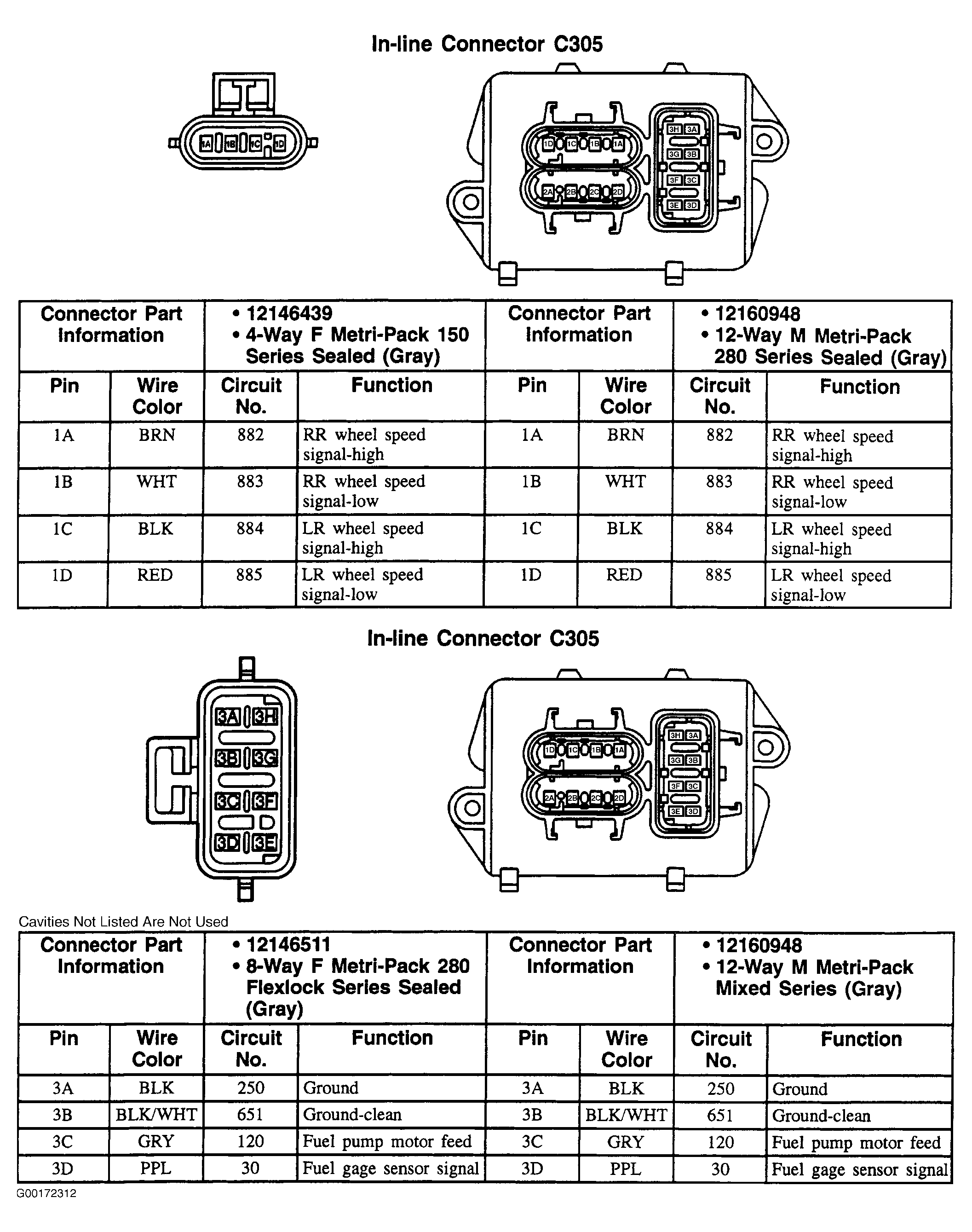

Fig 1: C305 - 4-Pin/12-Pin Connector (Gray) & 8-Pin/12-Pin Connector (Gray)
G00172312Courtesy of GENERAL MOTORS CORP.
