Vehicle Zoning

Vehicle Zoning:

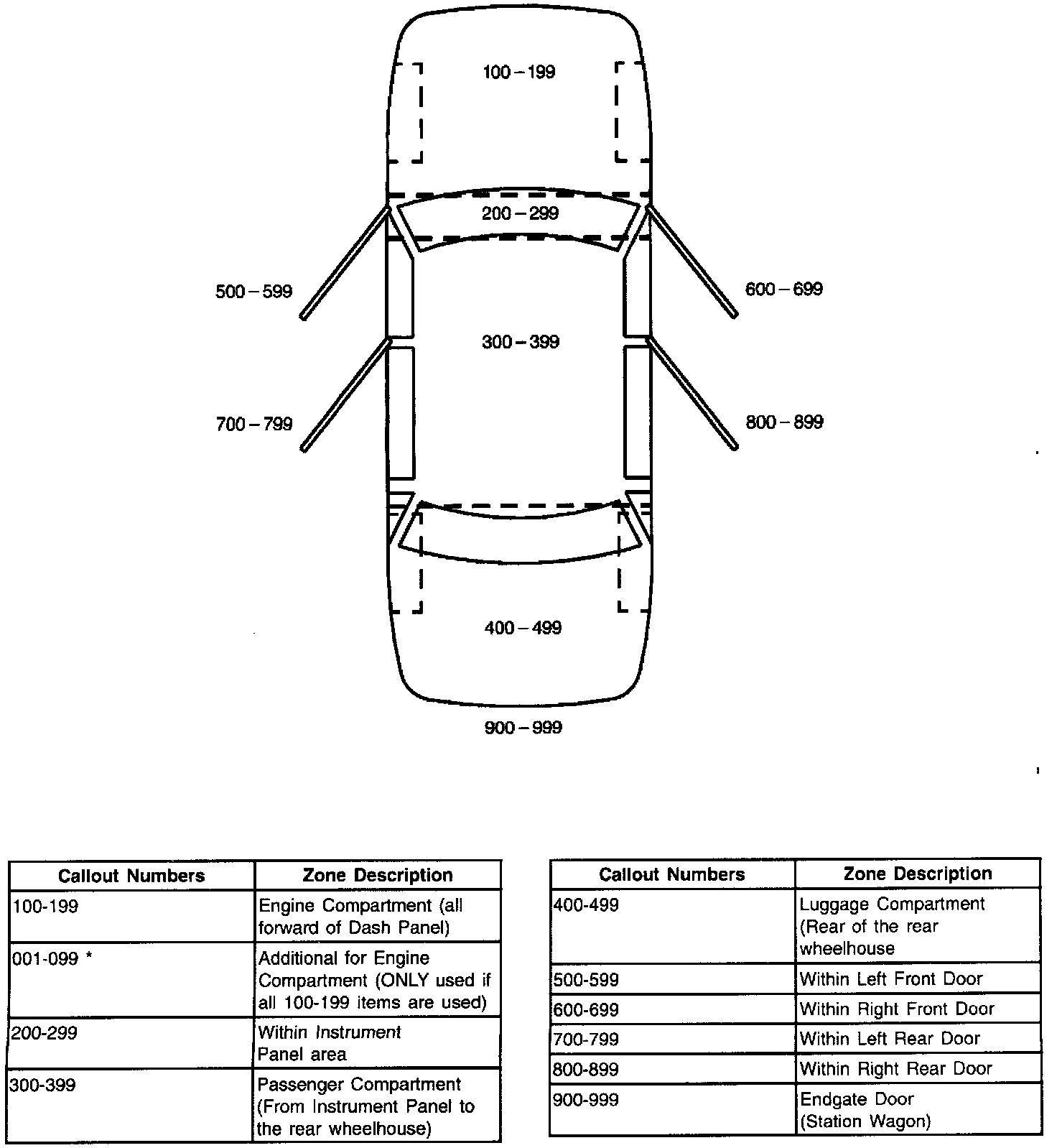

All grounds, in-line connectors, pass-through grommets, and splices are given identifying numbers according to where they are located in the vehicle. The above table explains the numbering system.
