DCM Control System, LH

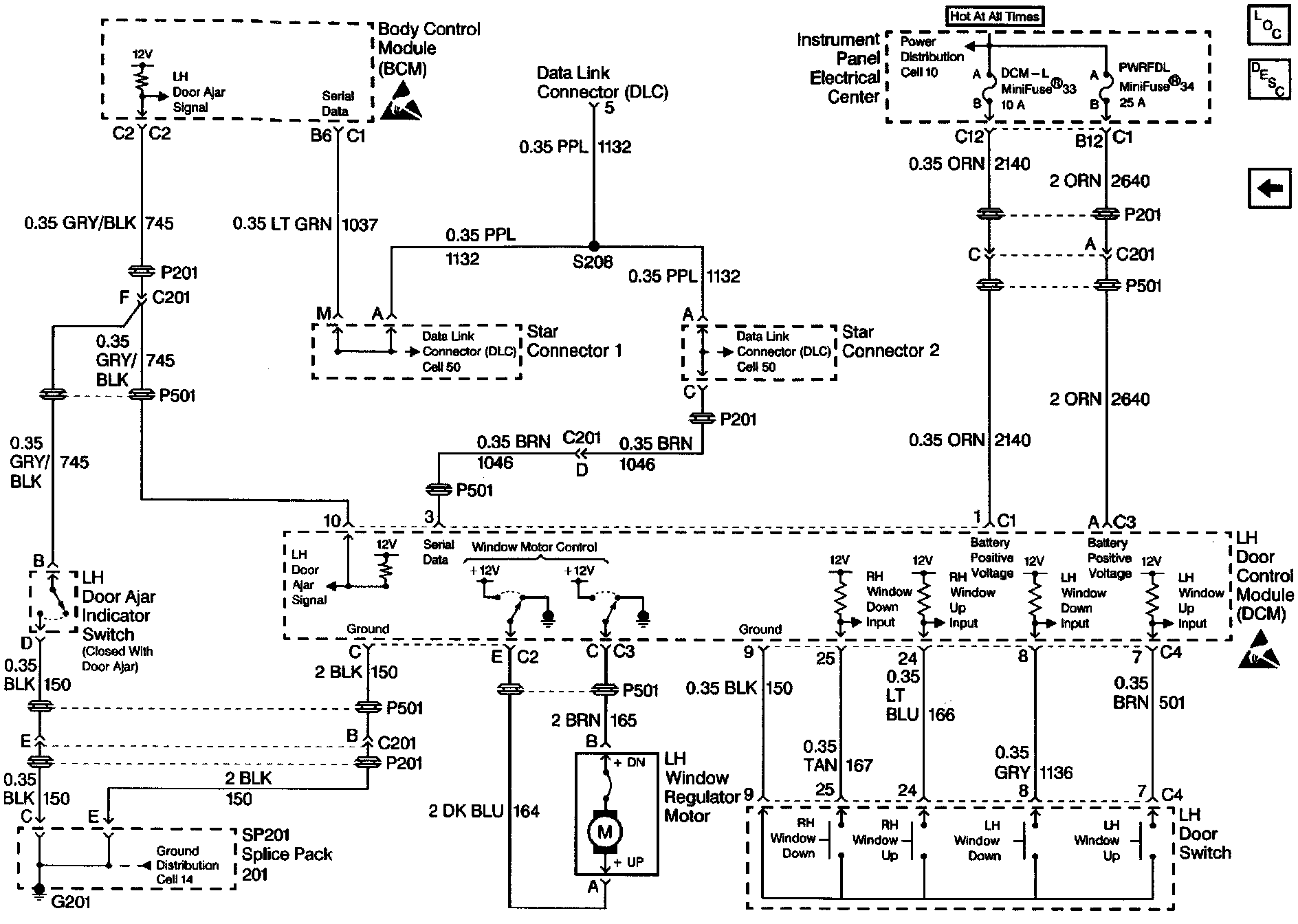

Retained Accessory Power Schematics: LH DCM Control System:



Retained Accessory Power Schematics: LH DCM Control System (Part 2 Of 2):
